Wall Panel
Supersonic Collection
Frame and Canvas Colours
Canvas Texture: Transformer
Muted Red
Accent Red
Base Red
Muted Earth
Base Earth
Accent Earth
Muted Yellow
Accent Yellow
Base Yellow
Black
White
Grey
Muted Olive
Accent Olive
Base Olive
Muted Green
Base Green
Accent Green
Muted Purple
Base Purple
Accent Purple
Muted Blue
Base Blue
Accent Blue
Raw Aluminium Frame and Canvas Colour
Canvas Texture: Transformer
Alu
Canvas Design Options
Request a sample kit

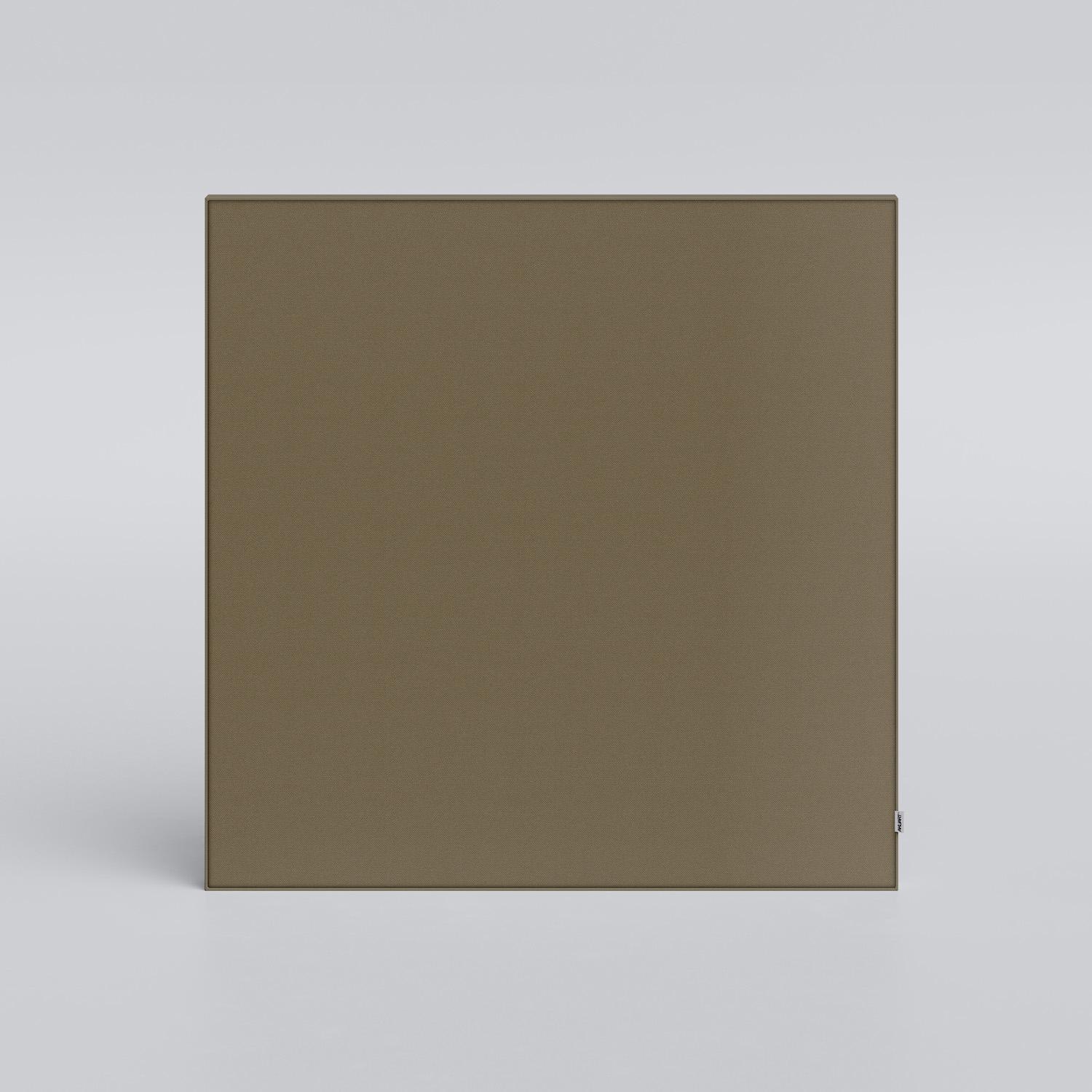

Description

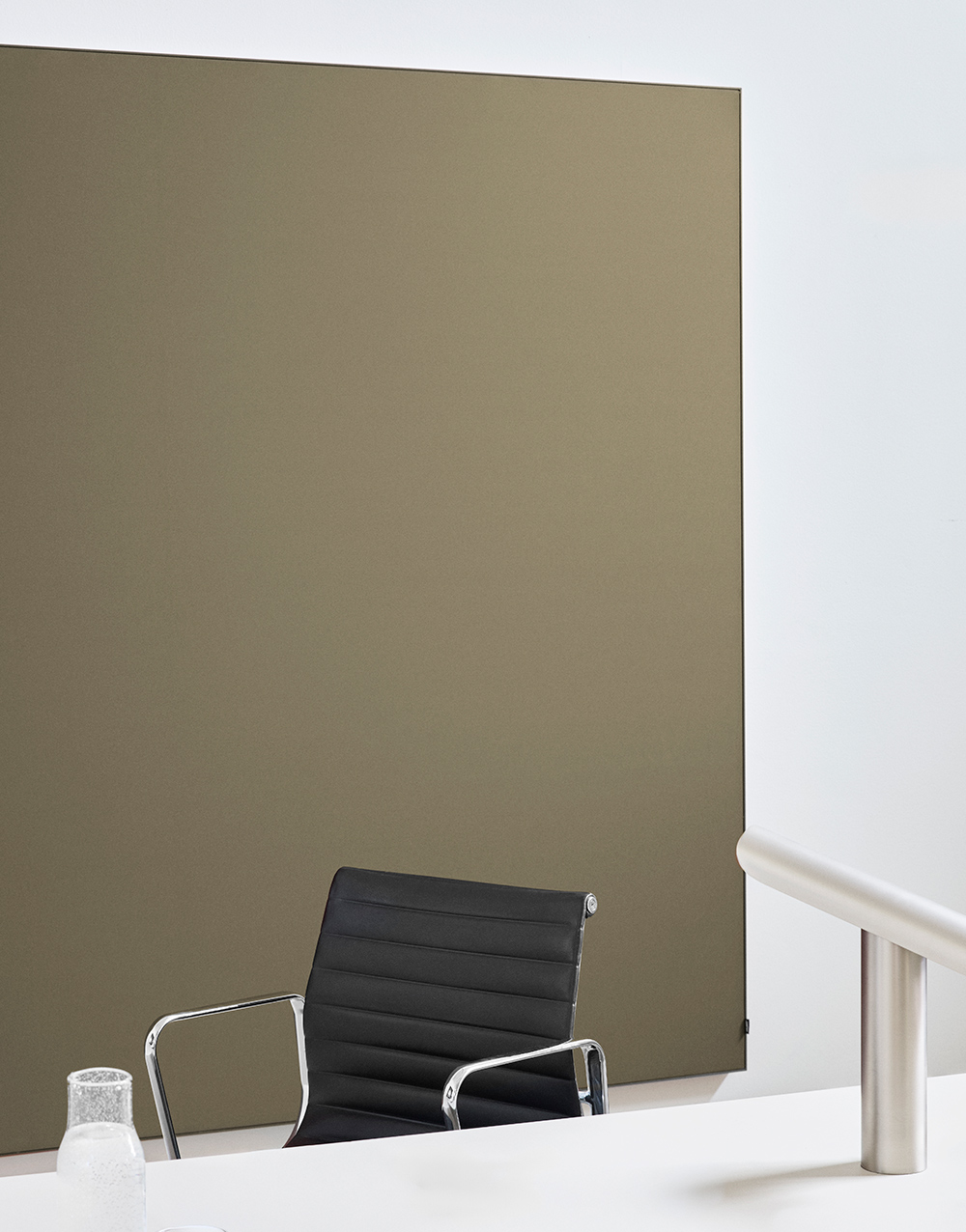

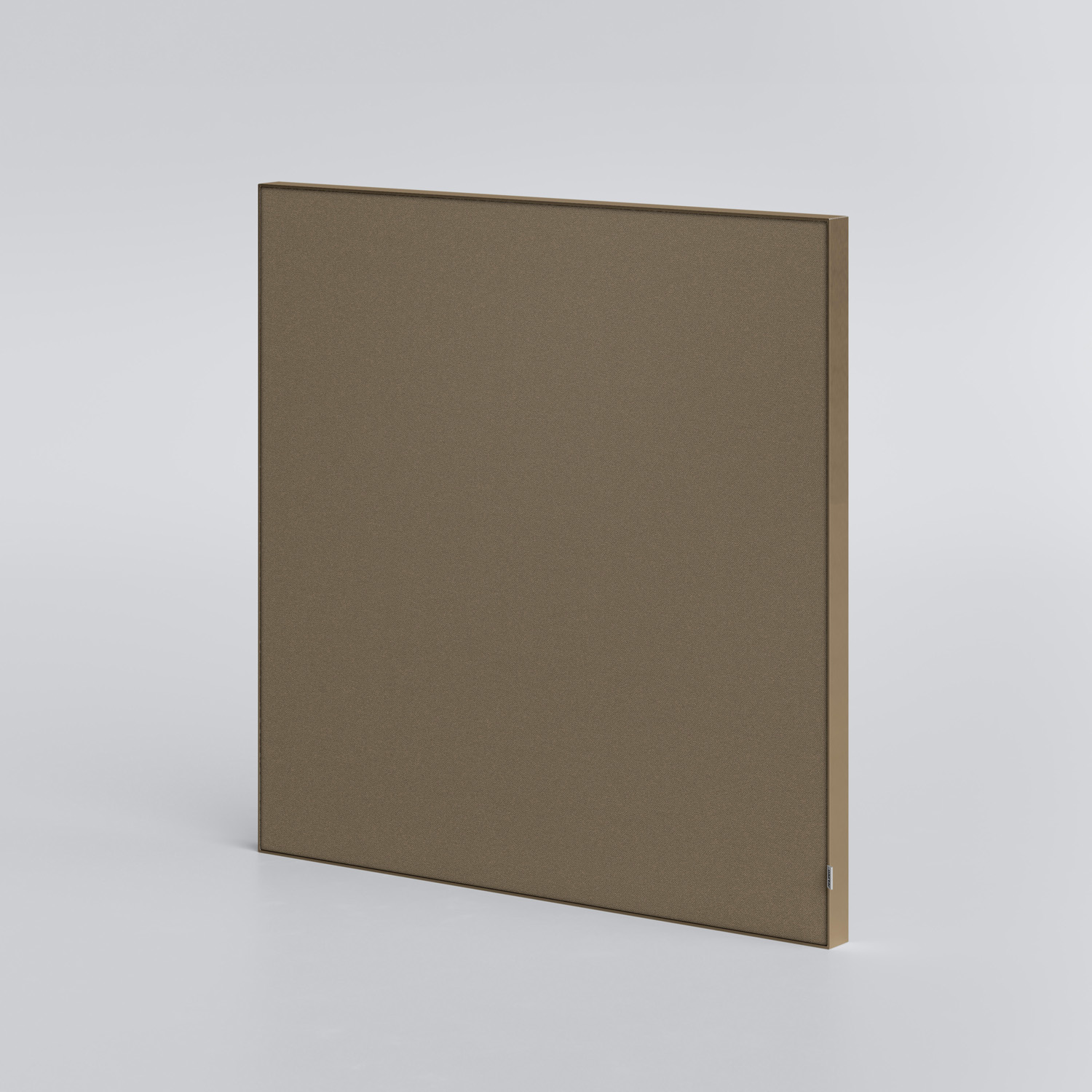

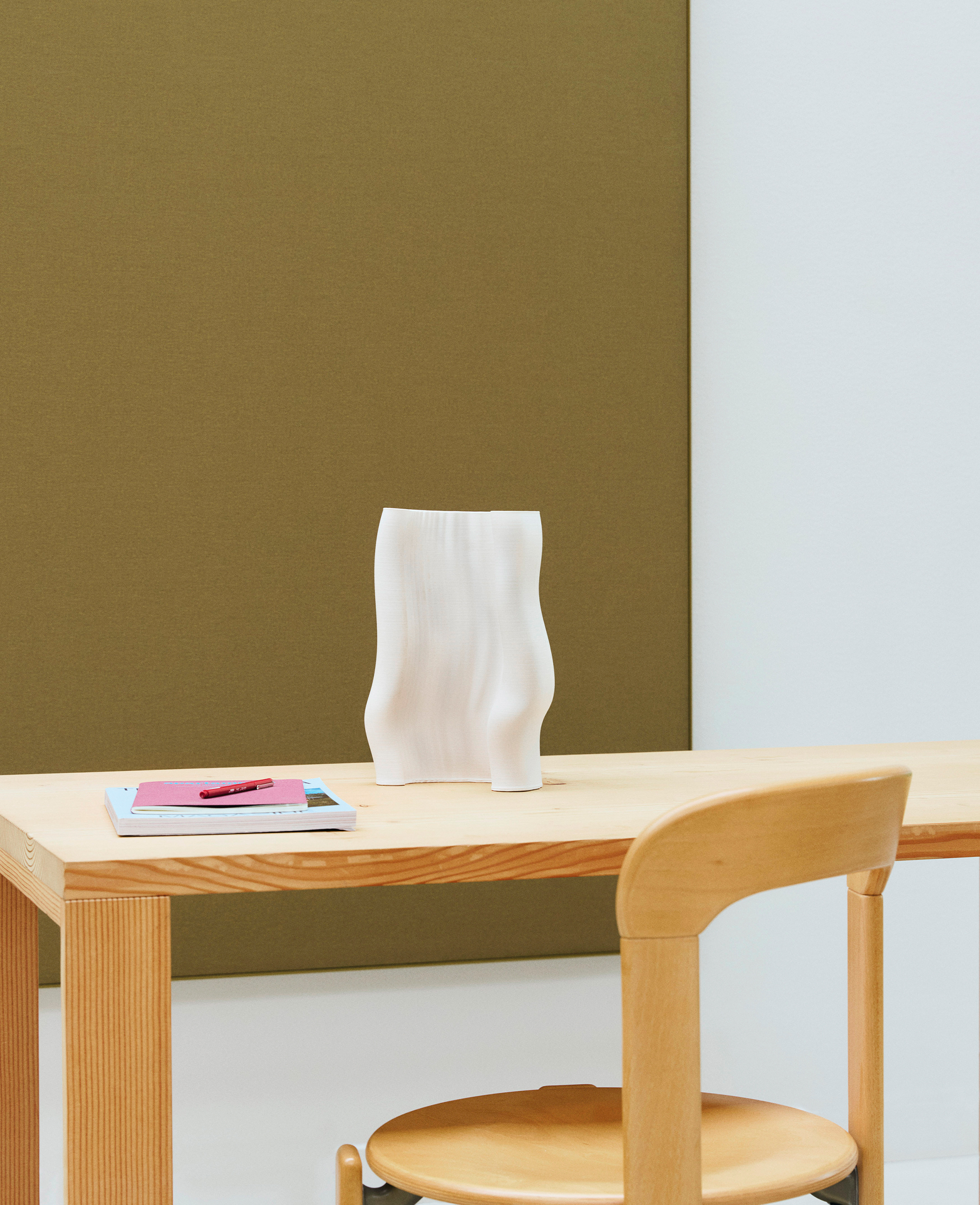

The Supersonic Wall Panel is a first class wall absorber wrapped in timeless, nordic design to match any aesthetic narrative. This wall absorber is perfect for limiting sound reflections for workstations close to walls and especially in corners. Combined with extensive design options, the Supersonic Wall Panel provides endless possibilities of creating beautiful, stylish and sensorially stimulating interior designs. The panel comes with a variety of special features, including a vast colour range, the characteristic Akuart changeable canvas, and a design-for-disassembly composition, making it possible to update and repair while ensuring that all components can be recycled once the panel becomes obsolete.
Product details
Features
- Superior acoustic performance
- Changeable canvas which allows you to enjoy the freedom of change as well as prolonging the life cycle of each panel.
- A design for disassembly product composition making it possible to reduce, reuse, repair and recycle materials and components used.
- 24 meticulously curated canvas and frame colours ranging from muted to bold accent hues.
- Format flexibility ensures that the Wall Panel can fit into any space.
Materials
Acoustic material
50 mm PET consisting of 50% PET-fibres from recycled plastic bottles.

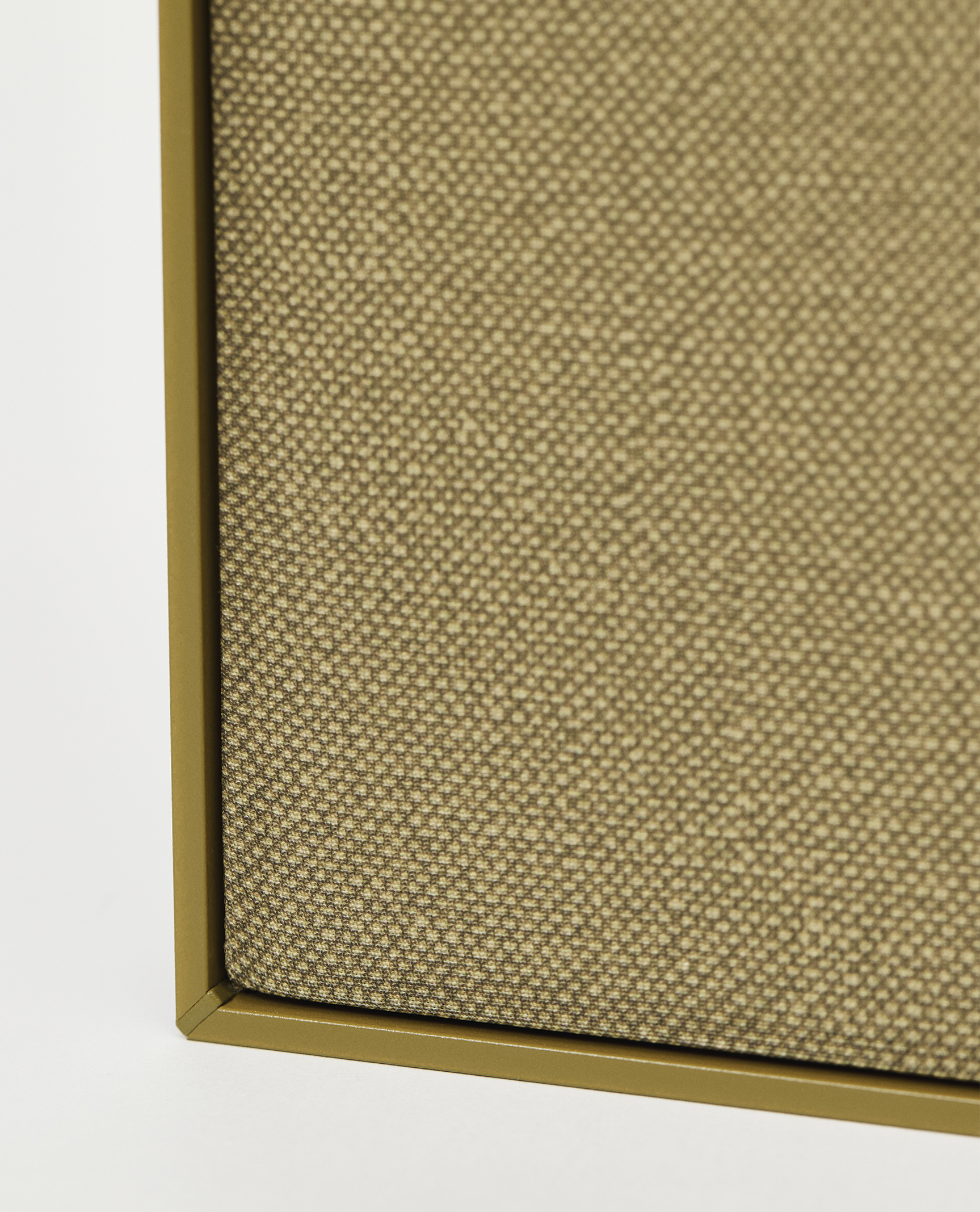

Frame
Aluminium consisting of 75% recycled post-consumer scrap. A fully recycled aluminium option (100R) is also available. Both variations feature a fine-structure powder coating or a raw finish.
Corners
Metal inserts. Fine-structure powder coating.
Canvas
Polyester made with 100% recycled polyester fibres.
Mounting
Metal wall hangers
Dimensions
Vertical / Horizontal
w:600 x h:1200 mm
w:800 x h:1200 mm
w:1000 x h:1200 mm
w:1200 x h:1500 mm
w:1200 x h:1800 mm
w:1200 x h:2400 mm
w:1000 x h:1500 mm
w:1000 x h:2000 mm
w:1500 x h:2000 mm
w:2000 x h:3000 mm
w:2000 x h:4000 mm
Square:
w:1000 x h:1000 mm
w:1200 x h:1200 mm
w:1500 x h:1500 mm
w:2000 x h:2000 mm
Bespoke sizes also available
Test & Acoustic functionality
Sound absorption class: A
Weighted absorption coefficient (αw): 0.95
NRC: 0.90
CO2 & Sustainability

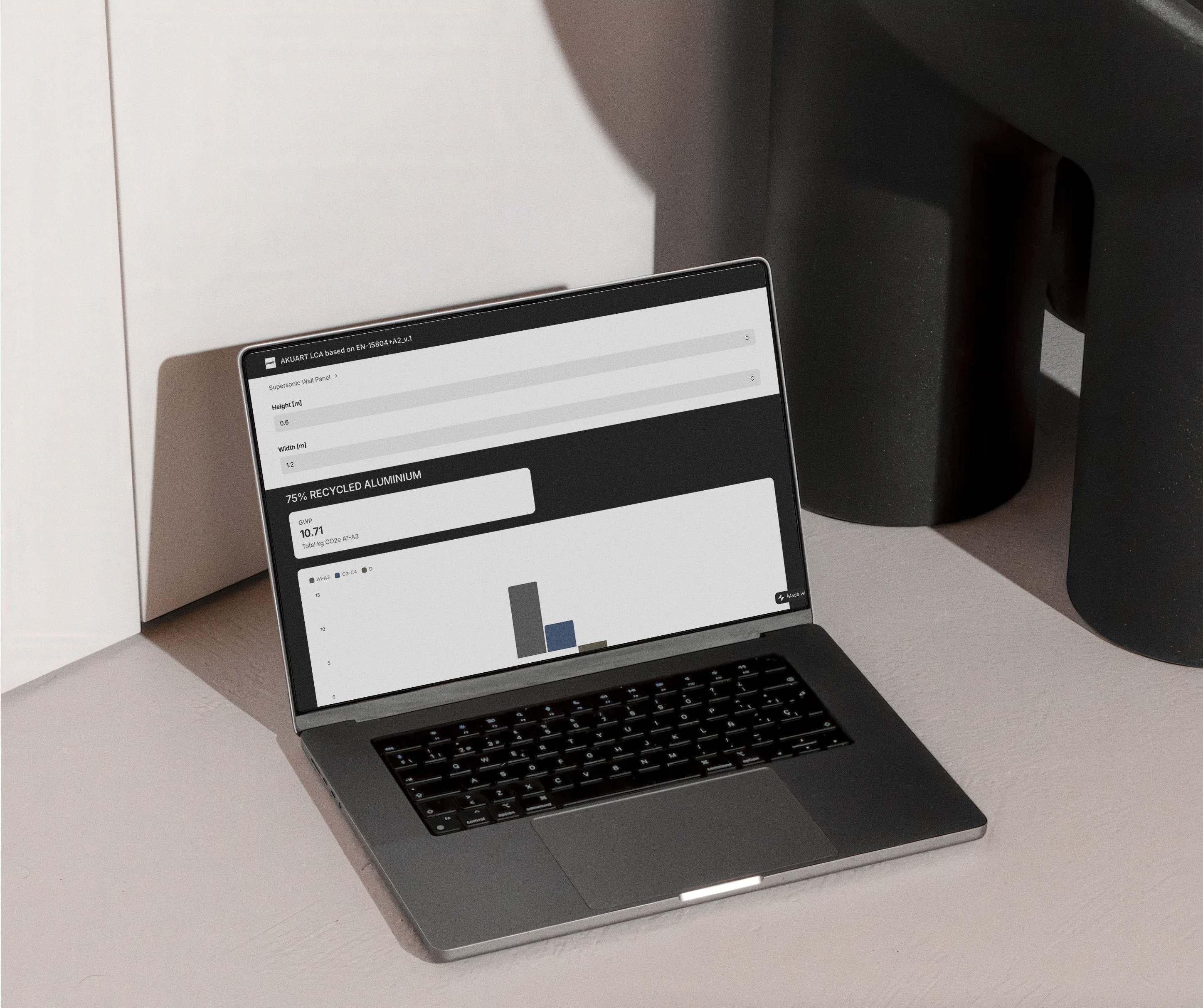

Supersonic Wall Panel CO2e Emissions product stage/cradle-to-gate (A1-A3)
75% Recycled Aluminium
w: 600 x h: 1200 mm = 10,7kg (A1-A3)
w: 800 x h: 1200 mm = 12,9kg (A1-A3)
w: 1000 x h: 1200 mm = 15,1kg (A1-A3)
w: 1200 x h: 1500 mm = 20,6kg (A1-A3)
w: 1200 x h: 1800 mm = 23,9kg (A1-A3)
w: 1200 x h: 2400 mm = 30,5kg (A1-A3)
w: 1000 x h: 1500 mm = 18,0kg (A1-A3)
w: 1000 x h: 2000 mm = 22,8kg (A1-A3)
w: 1500 x h: 2000 mm = 30,9kg (A1-A3)
w: 2000 x h: 3000 mm = 55,2kg (A1-A3)
w: 2000 x h: 4000 mm = 71,4kg (A1-A3)
w: 1000 x h: 1000 mm = 13,2kg (A1-A3)
w:1200 x h: 1200 mm = 17,3kg (A1-A3)
w: 1500 x h: 1500 mm = 24,5kg (A1-A3)
w: 2000 x h: 2000 mm = 39,0kg (A1-A3)
100% Recycled Aluminium
w: 600 x h: 1200 mm = 6,3kg (A1-A3)
w: 800 x h: 1200 mm = 8,0kg (A1-A3)
w: 1000 x h: 1200 mm = 9,7kg (A1-A3)
w: 1200 x h: 1500 mm = 13,9kg (A1-A3)
w: 1200 x h: 1800 mm = 16,5kg (A1-A3)
w: 1200 x h: 2400 mm = 21,6kg (A1-A3)
w: 1000 x h: 1500 mm = 11,8kg (A1-A3)
w: 1000 x h: 2000 mm = 15,4kg (A1-A3)
w: 1500 x h: 2000 mm = 22,3kg (A1-A3)
w: 2000 x h: 3000 mm = 42,9kg (A1-A3)
w: 2000 x h: 4000 mm = 56,6kg (A1-A3)
w: 1000 x h: 1000 mm = 8,2kg (A1-A3)
w: 1200 x h: 1200 mm = 11,4kg (A1-A3)
w: 1500 x h: 1500 mm = 17,1kg (A1-A3)
w: 2000 x h: 2000 mm = 29,1kg (A1-A3)
Maintenance
Canvas:
- Regularly dust with a soft brush or vacuum to prevent dirt accumulation.
- Treat stains on the canvas promptly to prevent them from setting. Absorb excess liquid immediately.
- Use antibacterial wipes or sprays to disinfect, always following the manufacturer’s instructions.

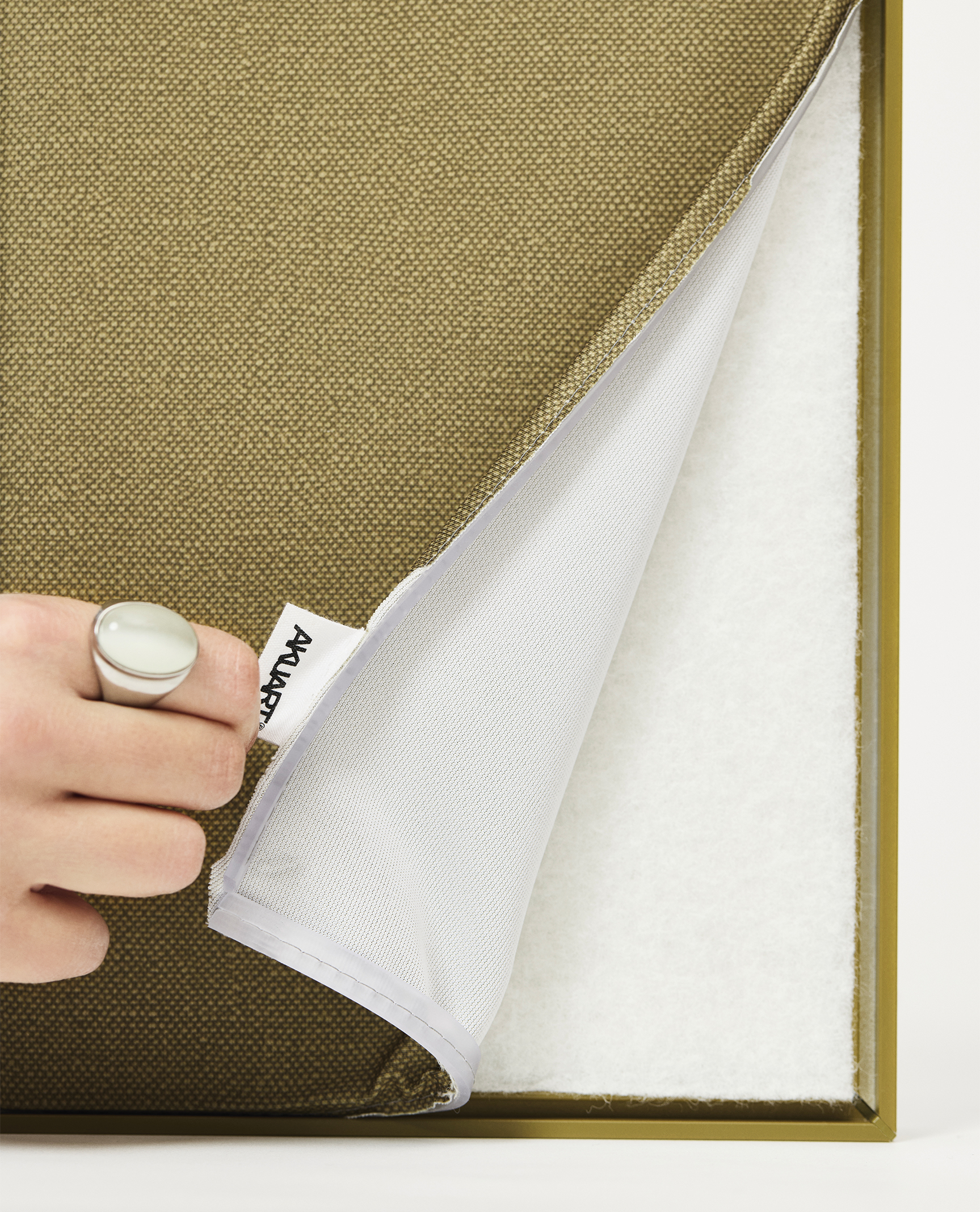

- Machine washing is applicable for the detachable Supersonic Canvas. Remove the canvas carefully using the AKUART hand tag. The Canvas is washable at temperatures up to 60°C. Ensure it is completely dry before remounting.
Frame:
- Regularly clean with a soft brush or vacuum to prevent dirt from accumulating.
- Disinfect using antibacterial wipes or sprays, ensuring you follow the manufacturer’s instructions.
Features
- Superior acoustic performance
- Changeable canvas which allows you to enjoy the freedom of change as well as prolonging the life cycle of each panel.
- A design for disassembly product composition making it possible to reduce, reuse, repair and recycle materials and components used.
- 24 meticulously curated canvas and frame colours ranging from muted to bold accent hues.
- Format flexibility ensures that the Wall Panel can fit into any space.
Materials
Acoustic material
50 mm PET consisting of 50% PET-fibres from recycled plastic bottles.
Frame
Aluminium consisting of 75% recycled post-consumer scrap. A fully recycled aluminium option (100R) is also available. Both variations feature a fine-structure powder coating or a raw finish.
Corners
Metal inserts. Fine-structure powder coating.
Canvas
Polyester made with 100% recycled polyester fibres.
Mounting
Metal wall hangers
Dimensions
Vertical / Horizontal
w:600 x h:1200 mm
w:800 x h:1200 mm
w:1000 x h:1200 mm
w:1200 x h:1500 mm
w:1200 x h:1800 mm
w:1200 x h:2400 mm
w:1000 x h:1500 mm
w:1000 x h:2000 mm
w:1500 x h:2000 mm
w:2000 x h:3000 mm
w:2000 x h:4000 mm
Square:
w:1000 x h:1000 mm
w:1200 x h:1200 mm
w:1500 x h:1500 mm
w:2000 x h:2000 mm
Bespoke sizes also available
Test & Acoustic functionality
Sound absorption class: A
Weighted absorption coefficient (αw): 0.95
NRC: 0.90
CO2 & Sustainability
Supersonic Wall Panel CO2e Emissions product stage/cradle-to-gate (A1-A3)
75% Recycled Aluminium
w: 600 x h: 1200 mm = 10,7kg (A1-A3)
w: 800 x h: 1200 mm = 12,9kg (A1-A3)
w: 1000 x h: 1200 mm = 15,1kg (A1-A3)
w: 1200 x h: 1500 mm = 20,6kg (A1-A3)
w: 1200 x h: 1800 mm = 23,9kg (A1-A3)
w: 1200 x h: 2400 mm = 30,5kg (A1-A3)
w: 1000 x h: 1500 mm = 18,0kg (A1-A3)
w: 1000 x h: 2000 mm = 22,8kg (A1-A3)
w: 1500 x h: 2000 mm = 30,9kg (A1-A3)
w: 2000 x h: 3000 mm = 55,2kg (A1-A3)
w: 2000 x h: 4000 mm = 71,4kg (A1-A3)
w: 1000 x h: 1000 mm = 13,2kg (A1-A3)
w:1200 x h: 1200 mm = 17,3kg (A1-A3)
w: 1500 x h: 1500 mm = 24,5kg (A1-A3)
w: 2000 x h: 2000 mm = 39,0kg (A1-A3)
100% Recycled Aluminium
w: 600 x h: 1200 mm = 6,3kg (A1-A3)
w: 800 x h: 1200 mm = 8,0kg (A1-A3)
w: 1000 x h: 1200 mm = 9,7kg (A1-A3)
w: 1200 x h: 1500 mm = 13,9kg (A1-A3)
w: 1200 x h: 1800 mm = 16,5kg (A1-A3)
w: 1200 x h: 2400 mm = 21,6kg (A1-A3)
w: 1000 x h: 1500 mm = 11,8kg (A1-A3)
w: 1000 x h: 2000 mm = 15,4kg (A1-A3)
w: 1500 x h: 2000 mm = 22,3kg (A1-A3)
w: 2000 x h: 3000 mm = 42,9kg (A1-A3)
w: 2000 x h: 4000 mm = 56,6kg (A1-A3)
w: 1000 x h: 1000 mm = 8,2kg (A1-A3)
w: 1200 x h: 1200 mm = 11,4kg (A1-A3)
w: 1500 x h: 1500 mm = 17,1kg (A1-A3)
w: 2000 x h: 2000 mm = 29,1kg (A1-A3)
Maintenance
Canvas:
- Regularly dust with a soft brush or vacuum to prevent dirt accumulation.
- Treat stains on the canvas promptly to prevent them from setting. Absorb excess liquid immediately.
- Use antibacterial wipes or sprays to disinfect, always following the manufacturer’s instructions.
- Machine washing is applicable for the detachable Supersonic Canvas. Remove the canvas carefully using the AKUART hand tag. The Canvas is washable at temperatures up to 60°C. Ensure it is completely dry before remounting.
Frame:
- Regularly clean with a soft brush or vacuum to prevent dirt from accumulating.
- Disinfect using antibacterial wipes or sprays, ensuring you follow the manufacturer’s instructions.
Design options
Colours & Textures
Art & Photography
Graphic Design
Planning & Organising
With the Akuart Sound & Colour Collection captivating colours and textures are merged to form a sophisticated range deepening from subtle neutrals to dark inky hues.

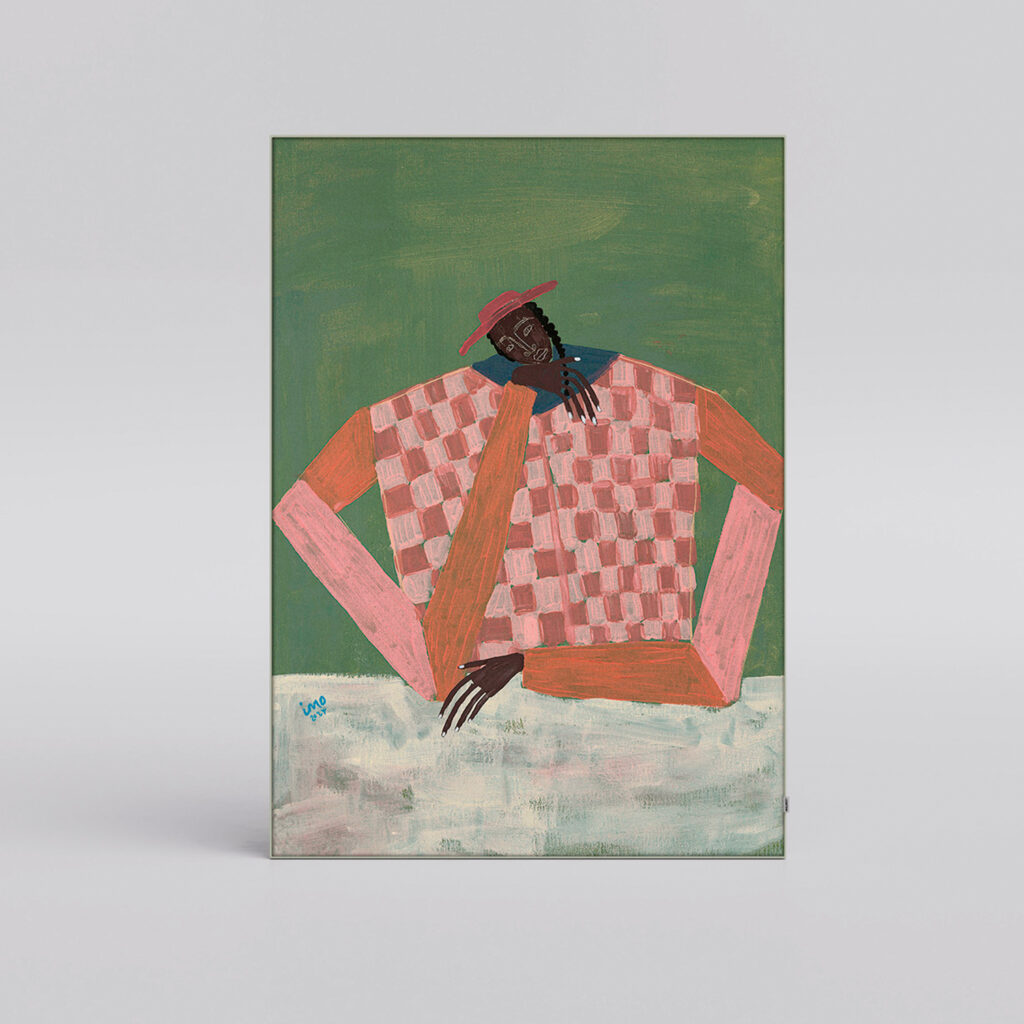

From the brushstrokes of talented artists to the lens of visionary photographers, the Akuart Gallery offers a meticulously curated selection of contemporary artwork.
Call up emotions, invigorate curiosity, and spark conversation with personalised graphics within the fields of wayfinding, branding, and corporate identity.
Get organised and stay on top of things with an annual calendar and weekly planner collection, available in a multitude of colours, textures and looks.
Special Features
Changeable canvas
Design for dissasembly

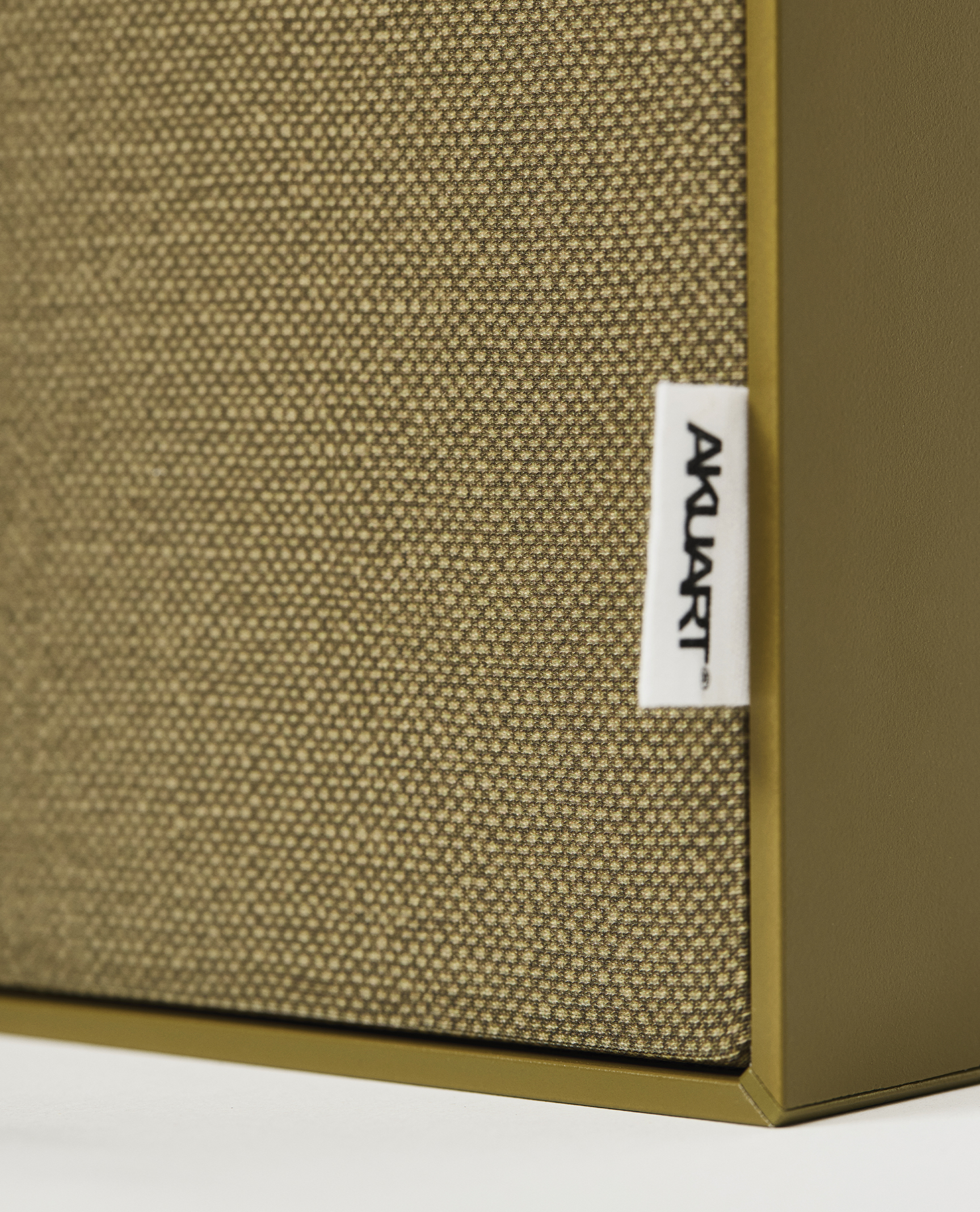

Enhanced frame corners

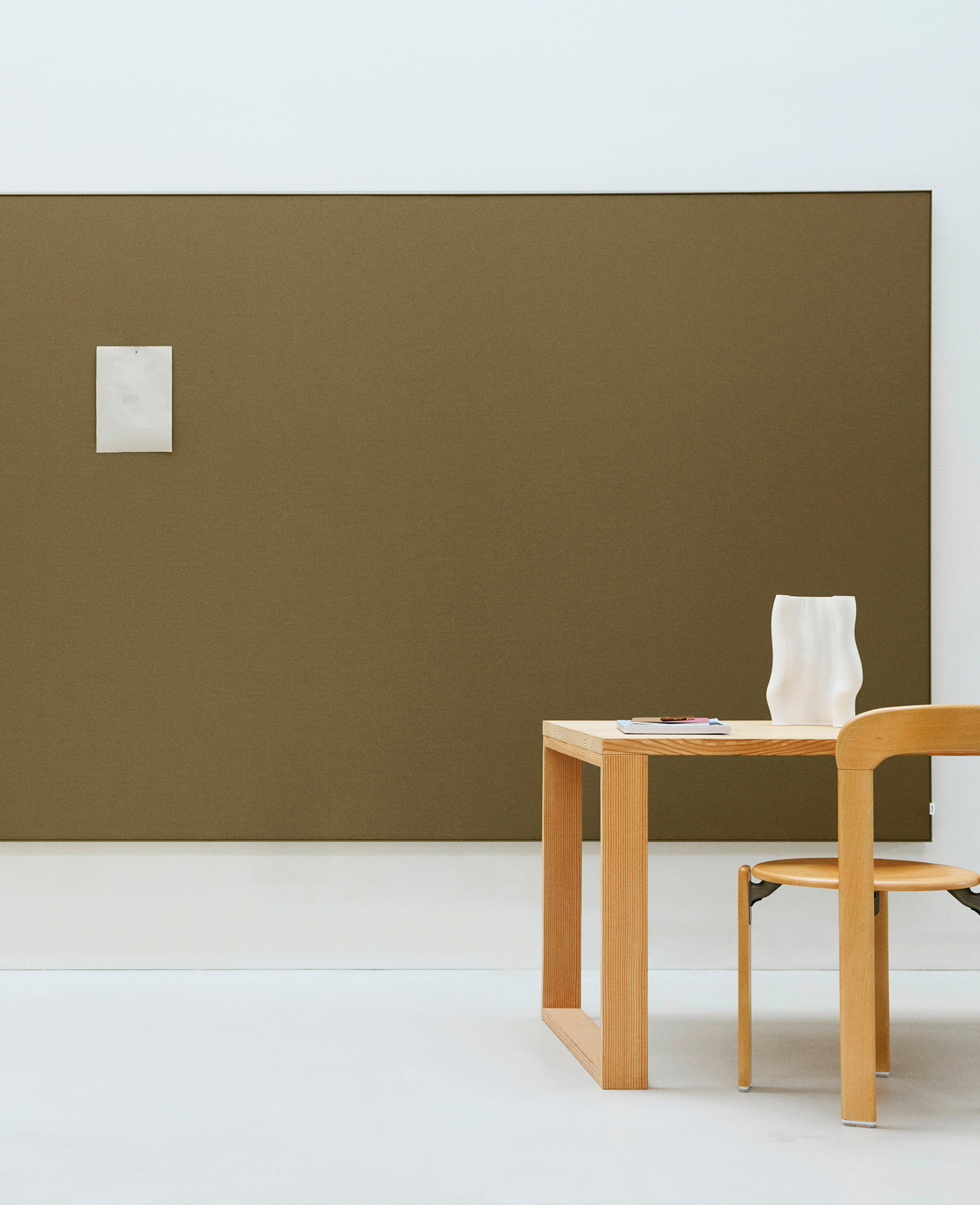

Pinnable
Shadow frame profile
Superior Acoustic funtionality
