Supersonic Wall Panel Artwork
A high-performance wall absorber defined by curated art, delivering Class A sound control, engineered from 84% recycled materials and designed for disassembly with verified material transparency.
Product Description
The Supersonic Wall Panel Artwork combines documented Class A acoustic performance with a curated selection of art, integrating sound control and visual expression within the same modular system. Engineered with 84% recycled materials and designed for disassembly, it supports long-term circular use while elevating walls into expressive architectural elements.
Product Specifications
Supersonic Wall Panel Artwork Dimensions
Frame depth: 55mm
Vertical & Horizontal:
700 x 1000 mm
860 x 1200 mm
1000 x 1400 mm
1060 x 1500 mm
1270 x 1800 mm
1400 x 2000 mm
2000 x 2840 mm
Square:
1000 x 1000 mm
1200 x 1200 mm
2000 x 2000 mm
Supersonic Wall Panel Artwork Materials
Acoustic material:
50 mm PET consisting of 75% PET-fibres from recycled plastic bottles.
Frame:
Aluminium consisting of 100% recycled post-consumer scrap. Fine-structure powder coating or a raw finish.
Corners:
Metal inserts. Fine-structure powder coating.
Canvas:
Polyester made with 100% recycled polyester fibres.
Mounting:
Metal wall hangers.
Supersonic Wall Panel Artwork Acoustic Functionality
Sound absorption class: A
Weighted absorption coefficient (αw): 0.95
NRC: 0.90
Supersonic Wall Panel Artwork Co2 Calculations
Supersonic Wall Panel Artwork CO2e Emissions product stage / cradle-to-gate (A1-A3)
600 x 1200 mm = 3,88 kg CO2e
800 x h: 1200 mm = 5,17 kg CO2e
1000 x 1200 mm = 6,47 kg CO2e
1200 x 1500 mm = 9,70 kg CO2e
1200 x 1800 mm = 11,64 kg CO2e
1200 x 2400 mm = 15,52 kg CO2e
1000 x 1500 mm = 8,09kg CO2e
1000 x 2000 mm = 10,78kg CO2e
1500 x 2000 mm = 16,17kg CO2e
2000 x 3000 mm = 32,34kg CO2e
2000 x 4000 mm = 43,12kg CO2e
1000 x 1000 mm = 5,39kg CO2e
1200 x 1200 mm = 7,76kg CO2e
1500 x 1500 mm = 12,13kg CO2e
2000 x 2000 mm = 21,56kg CO2e
Use our custom calculator to determine the CO₂ emissions for custom sizes:
Supersonic Wall Panel Artwork Downloads
Please find and download all relevant material through our digital showroom.
Supersonic Wall Panel Artwork Certificates & Declarations
• Third-party-verified Environmental Product Declaration (EPD) aligned with EN-15804, covering cradle-to-gate and end-of-life phases.
• Registered in Miljøfakta with documented material composition, environmental data, and regulatory compliance.
• Oeko-Tex® Standard 100 certification for textile and acoustic absorber.
• Fire classification B-s1,d0 in accordance with EN 13501-1 (component level for textile and absorber).
• Compliance with the REACH Regulation.
• Möbelfakta certified, supporting transparent product data and responsible sourcing.
Please find and download all relevant material through our digital showroom.

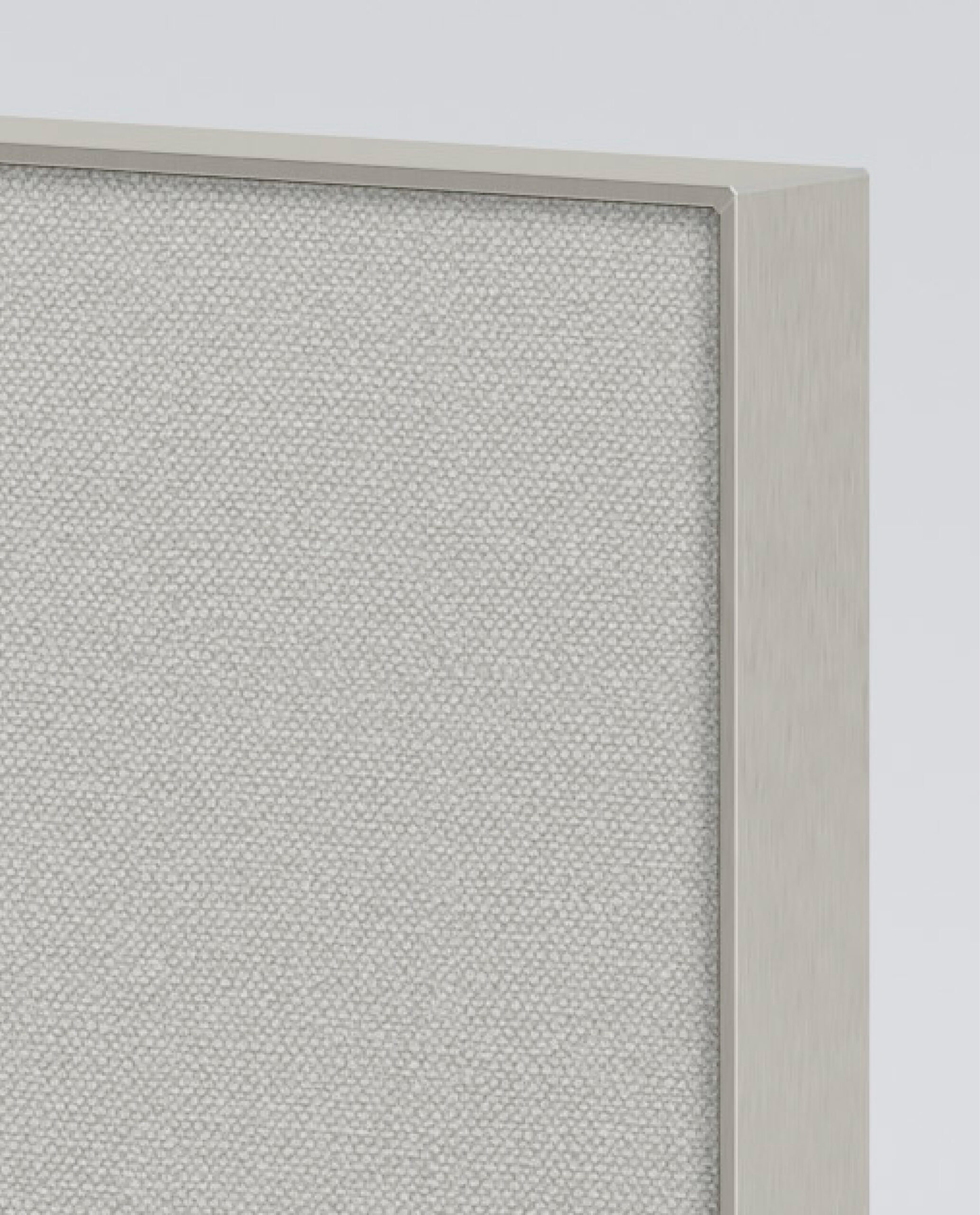

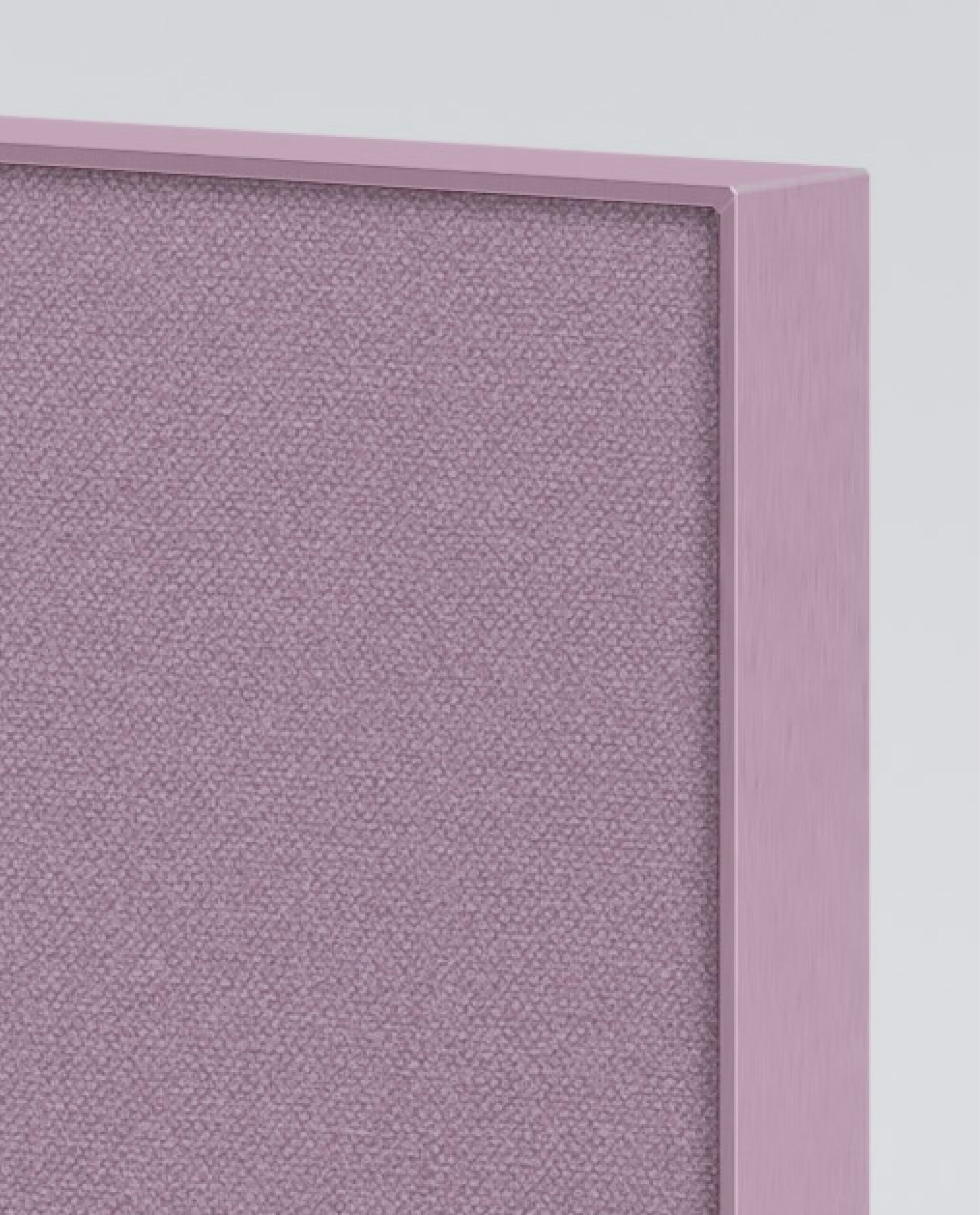

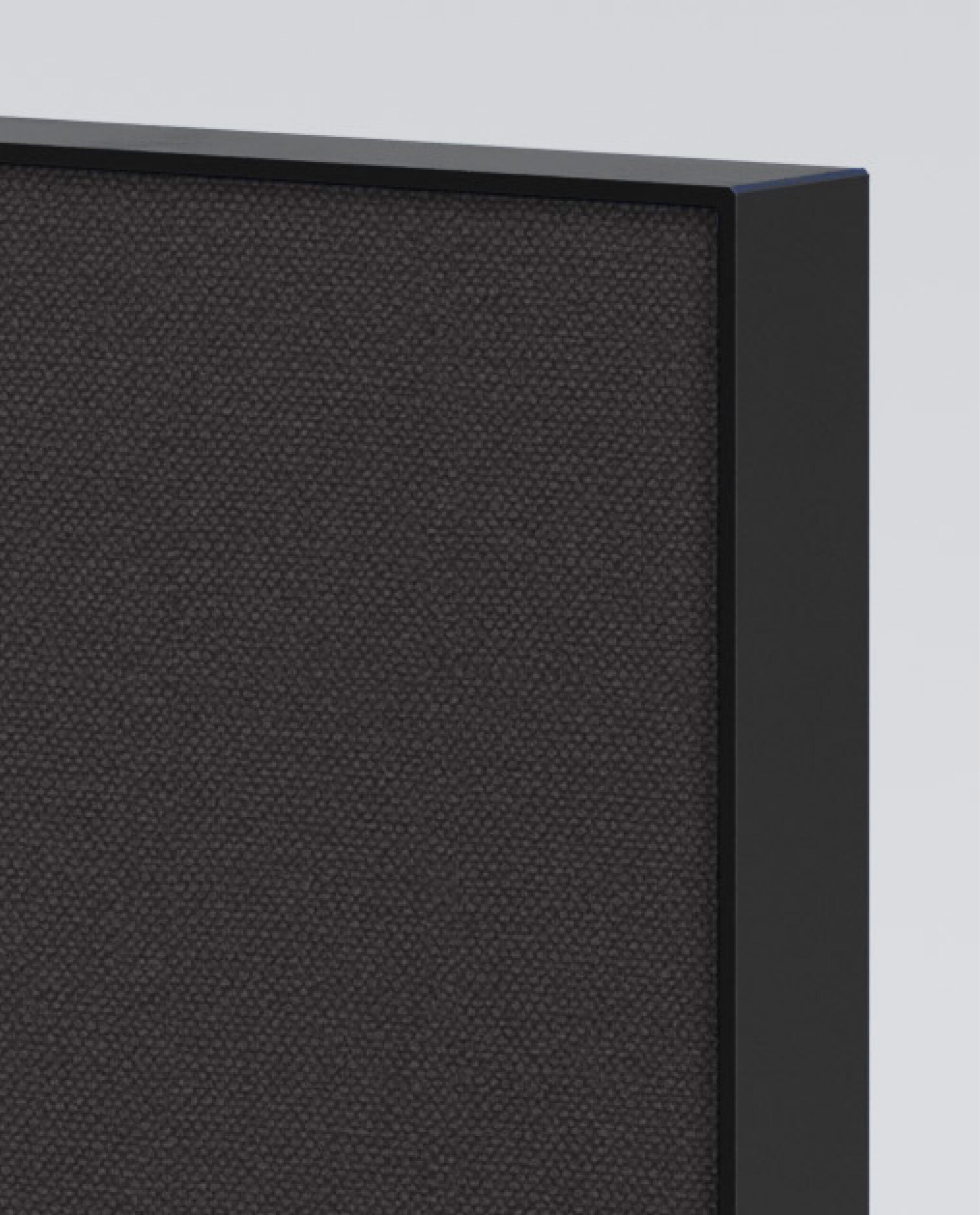

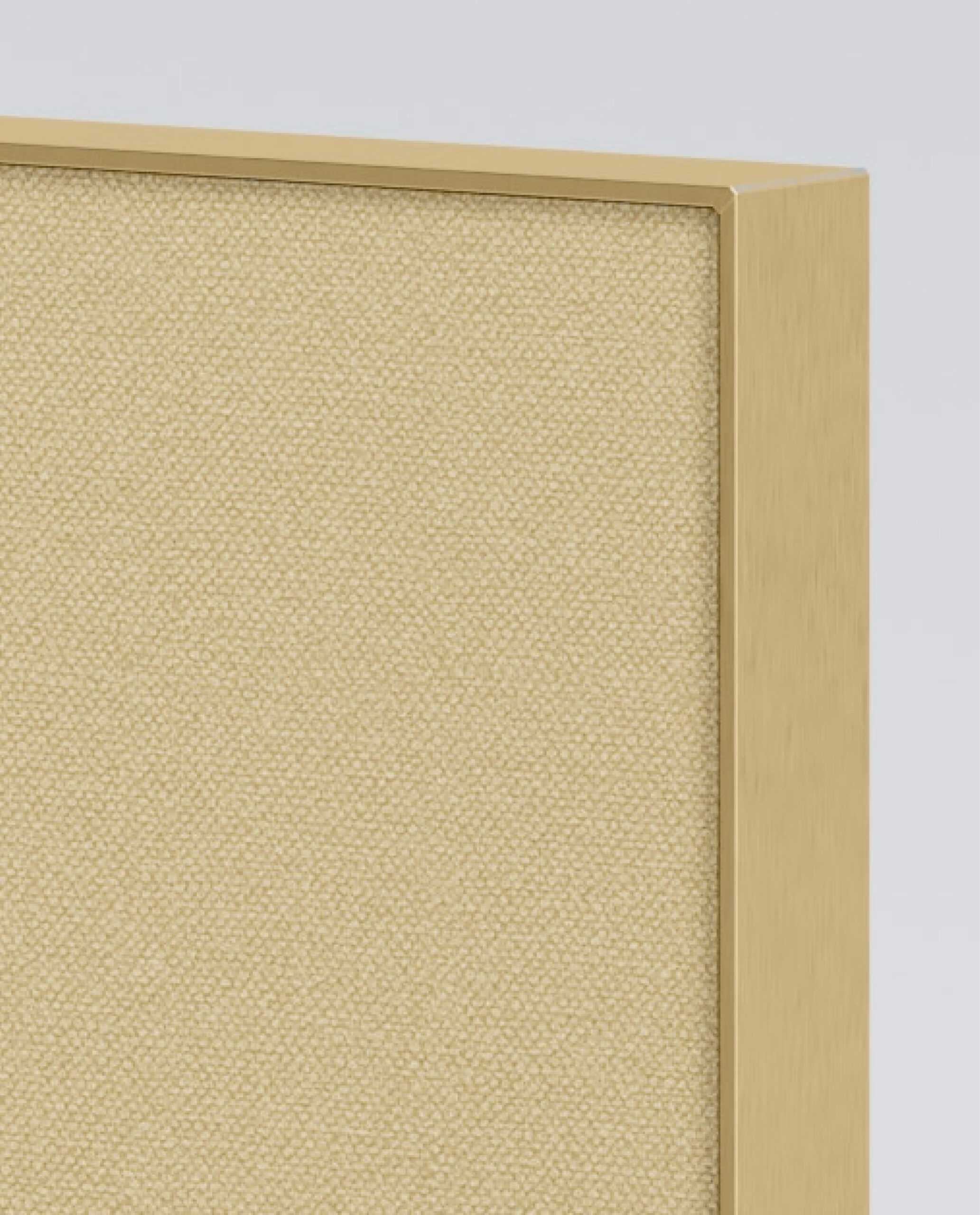

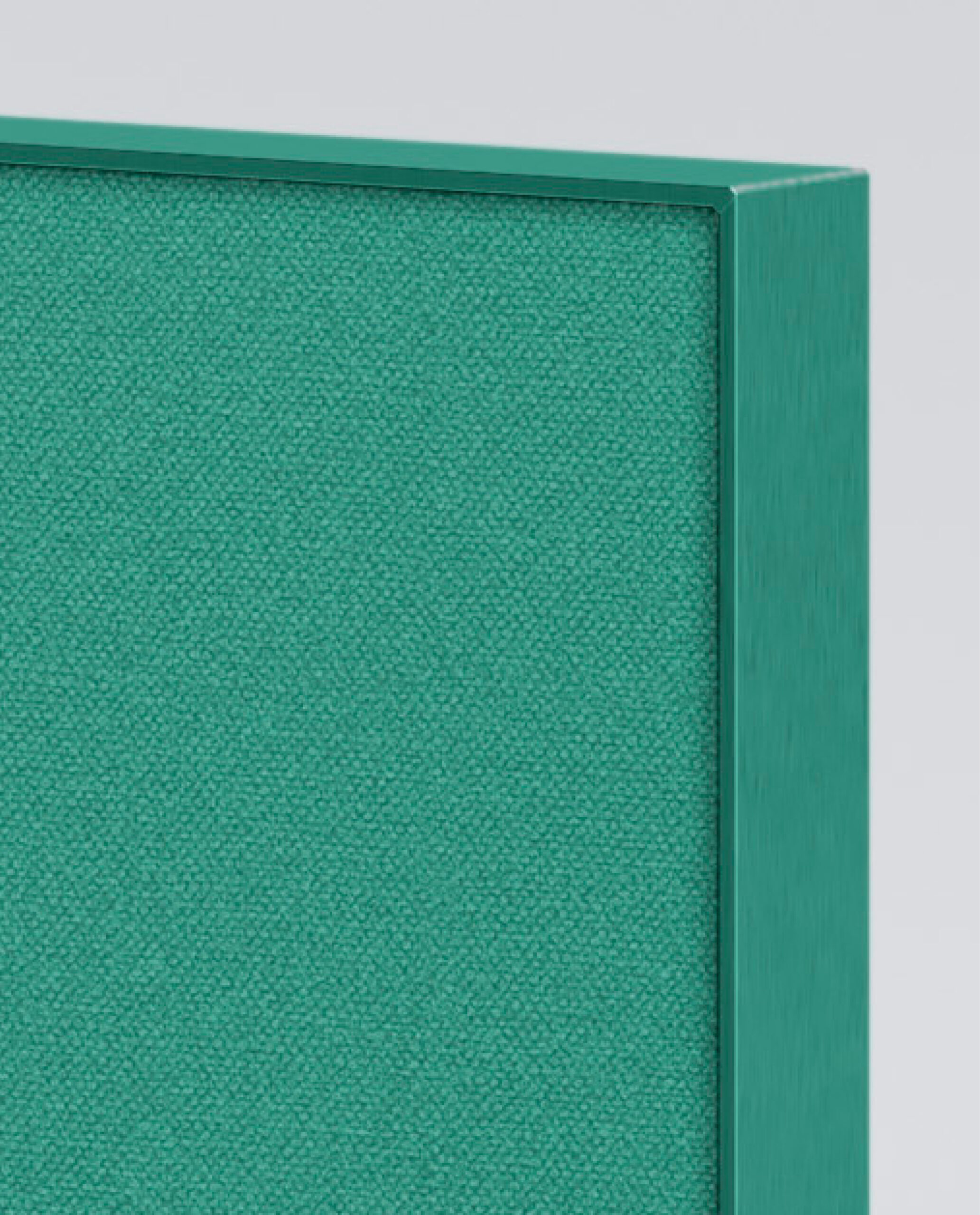

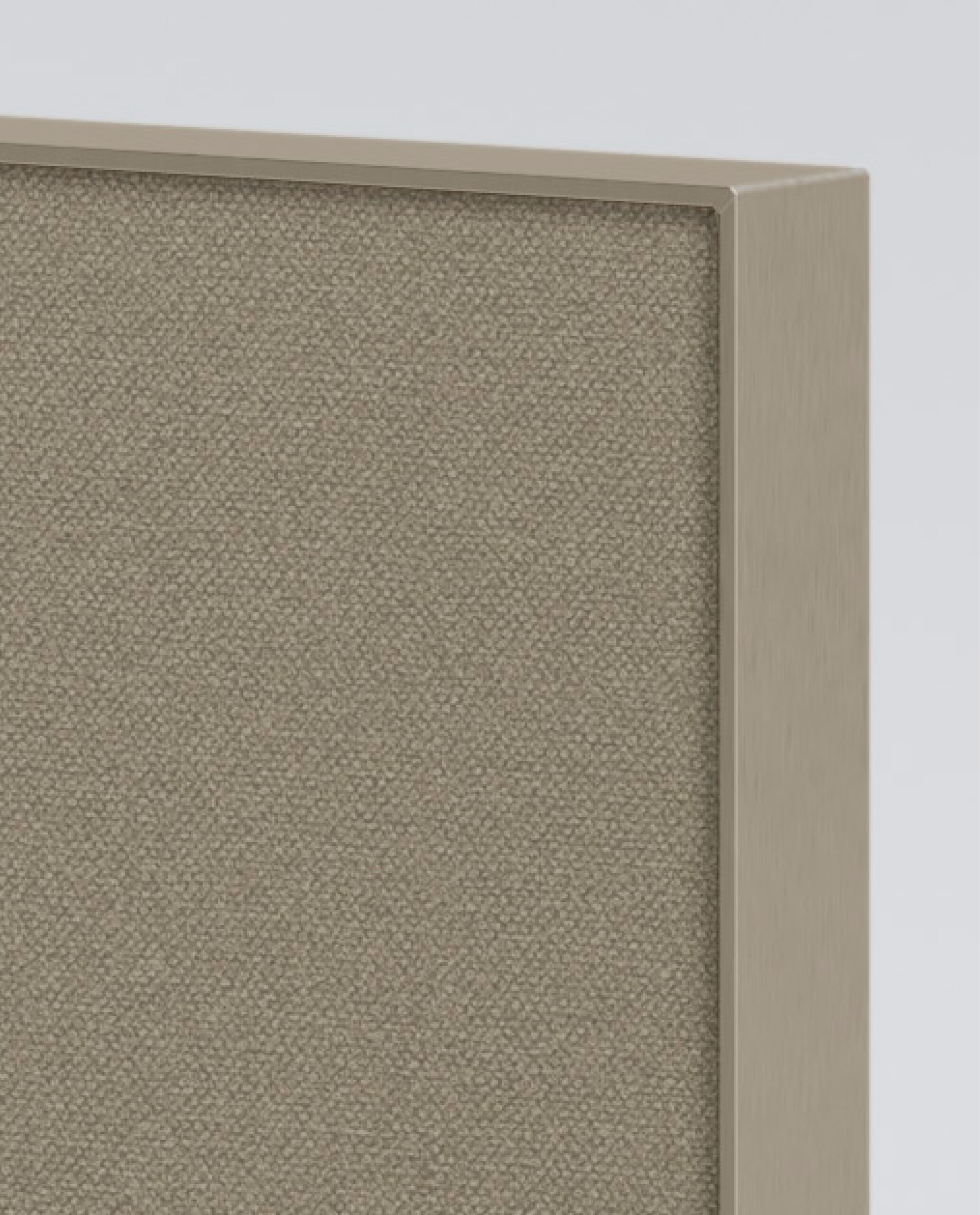

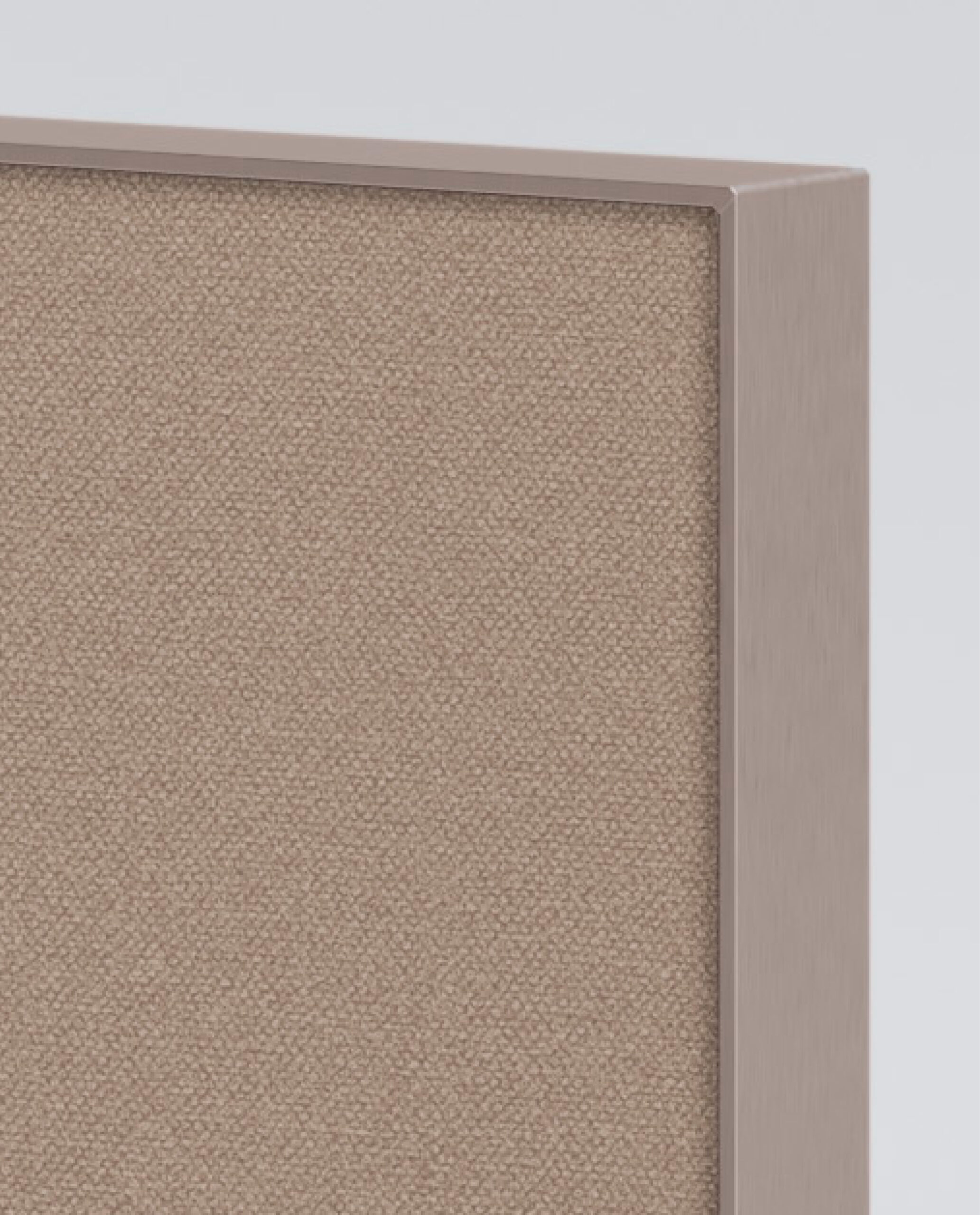

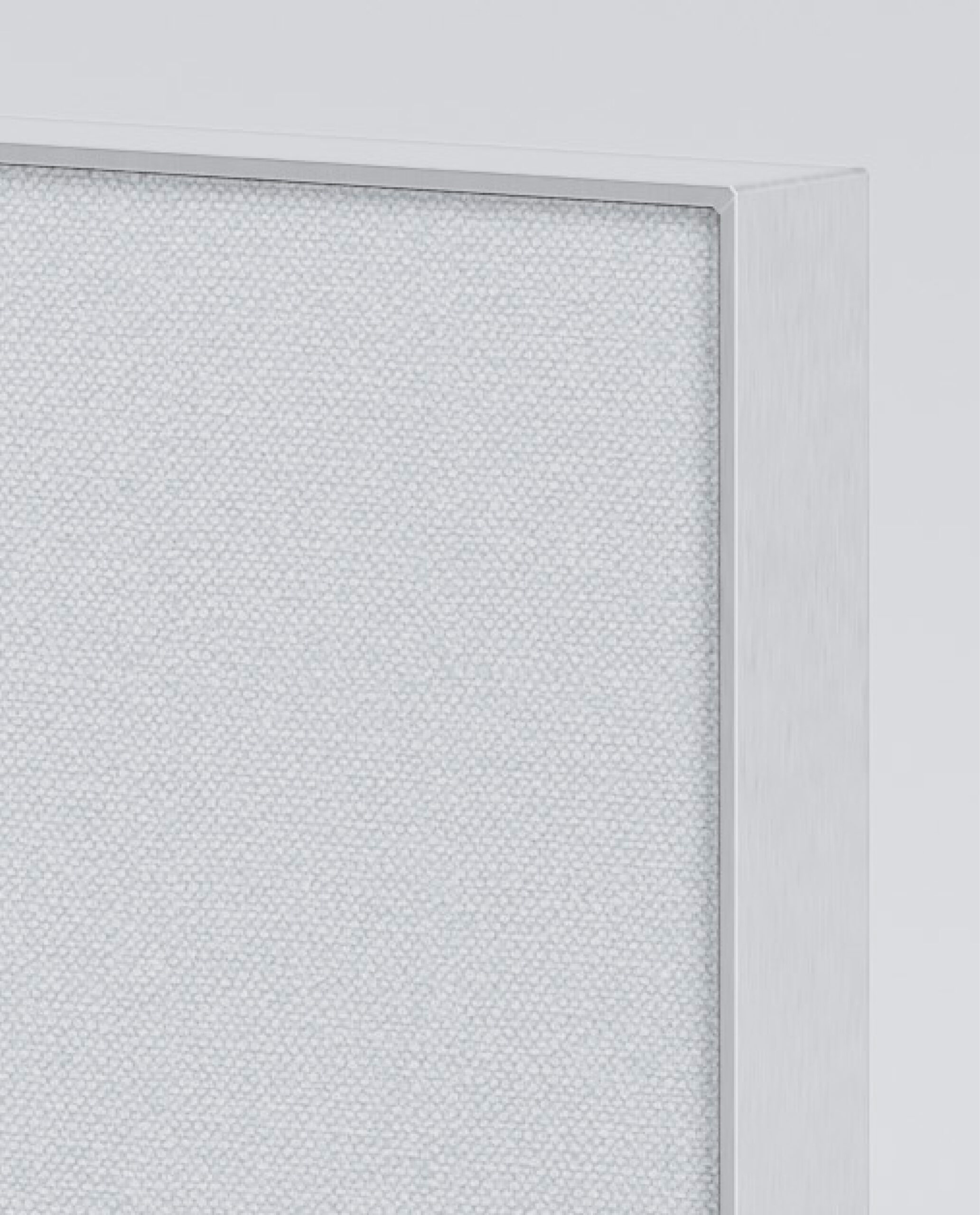

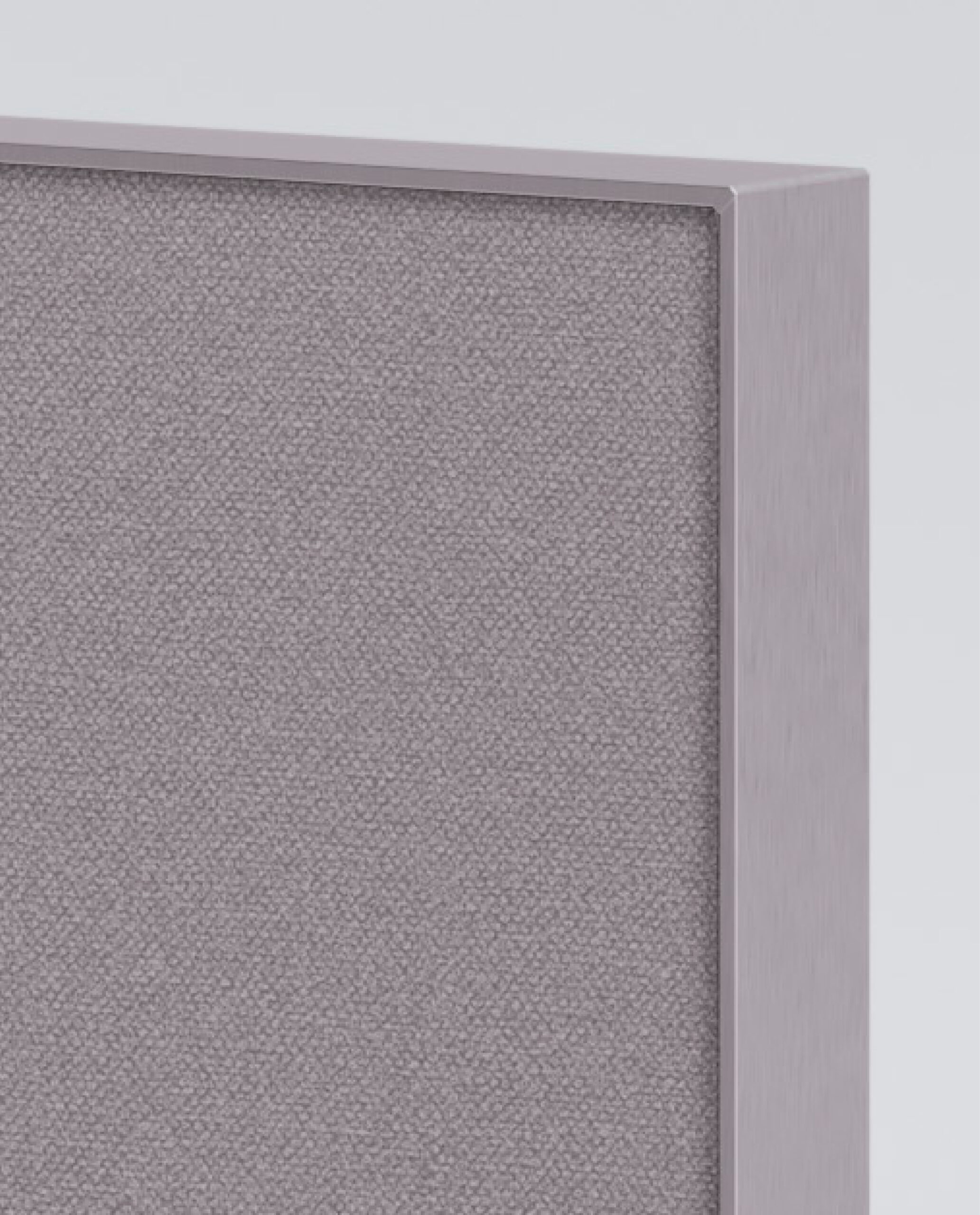

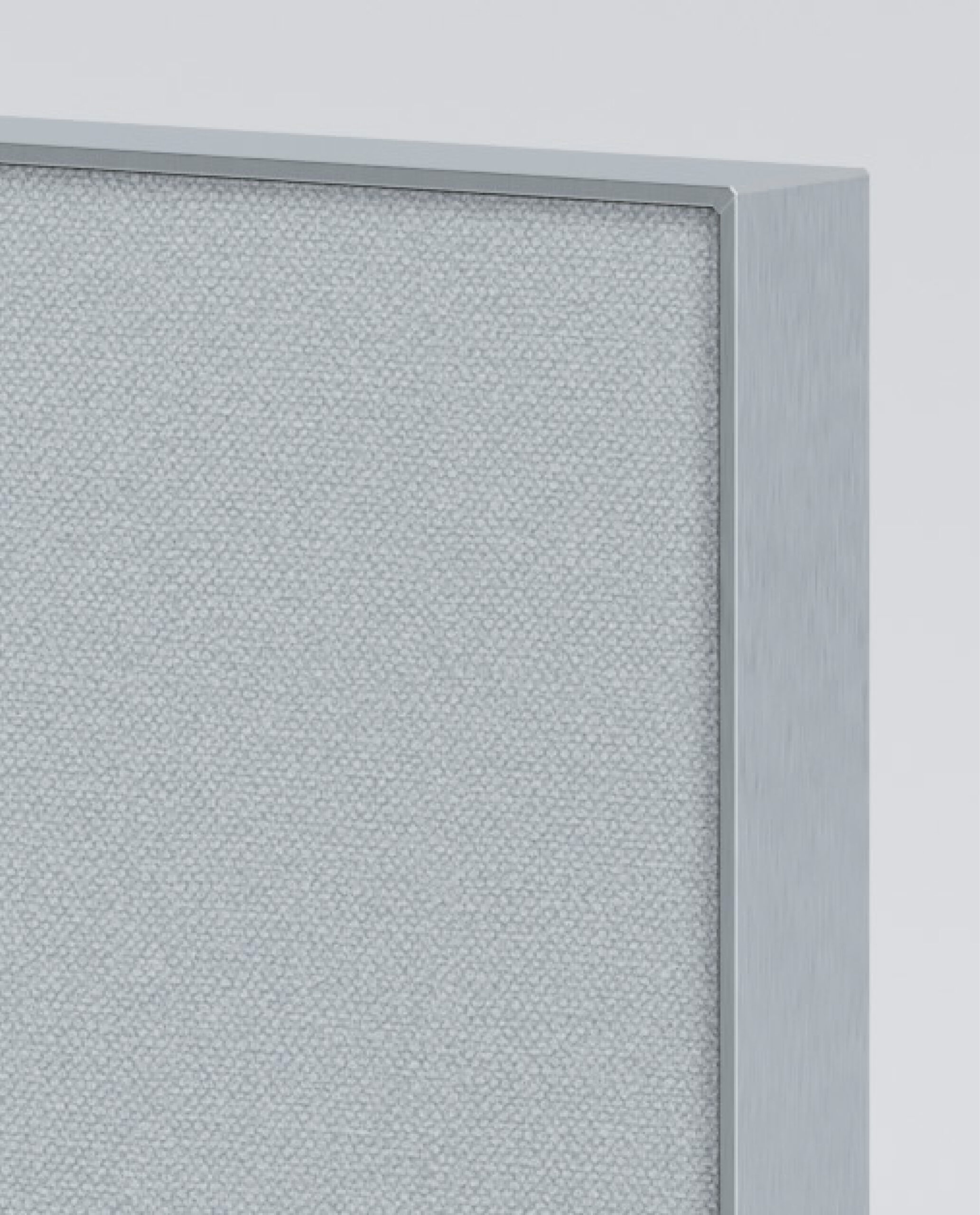

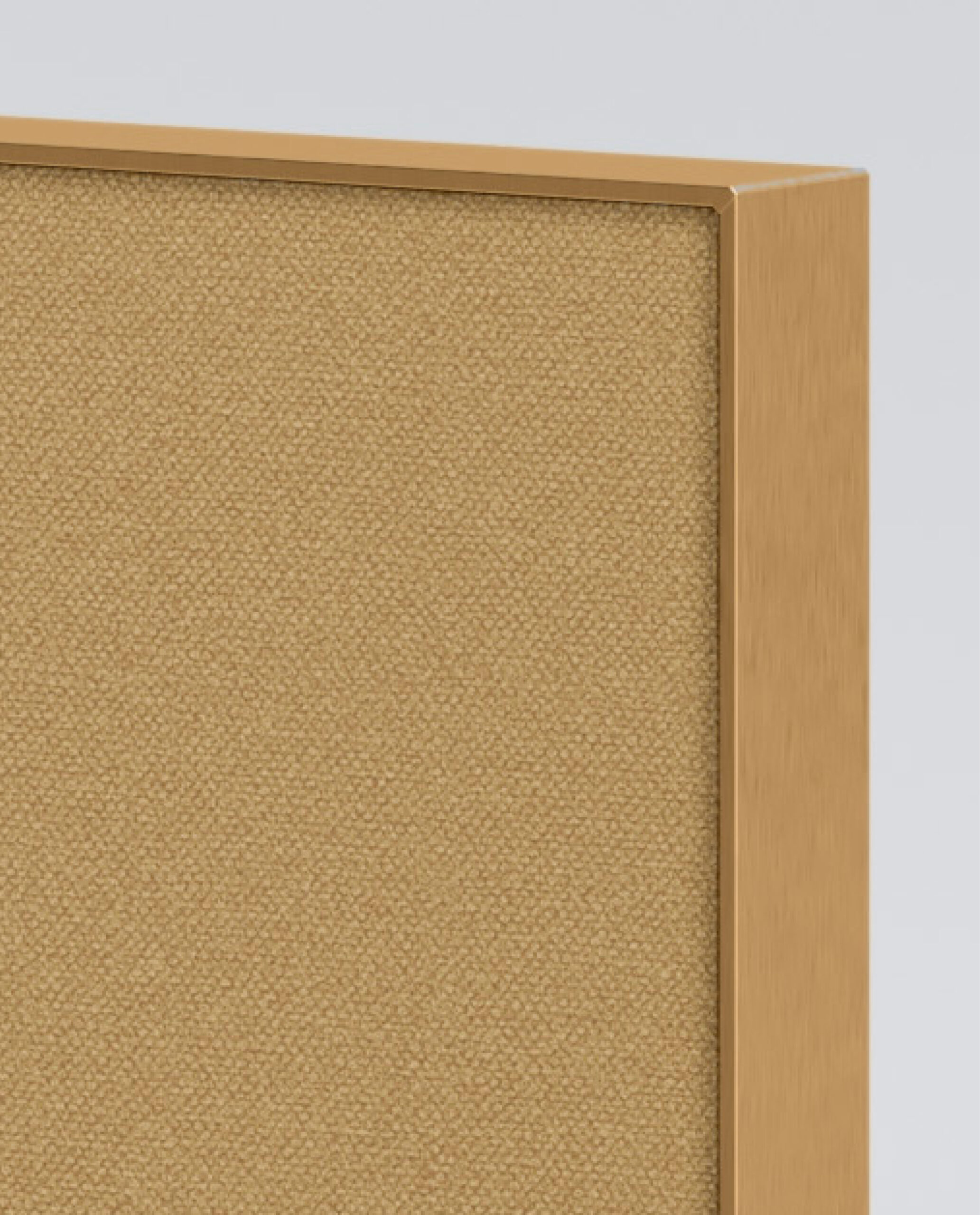

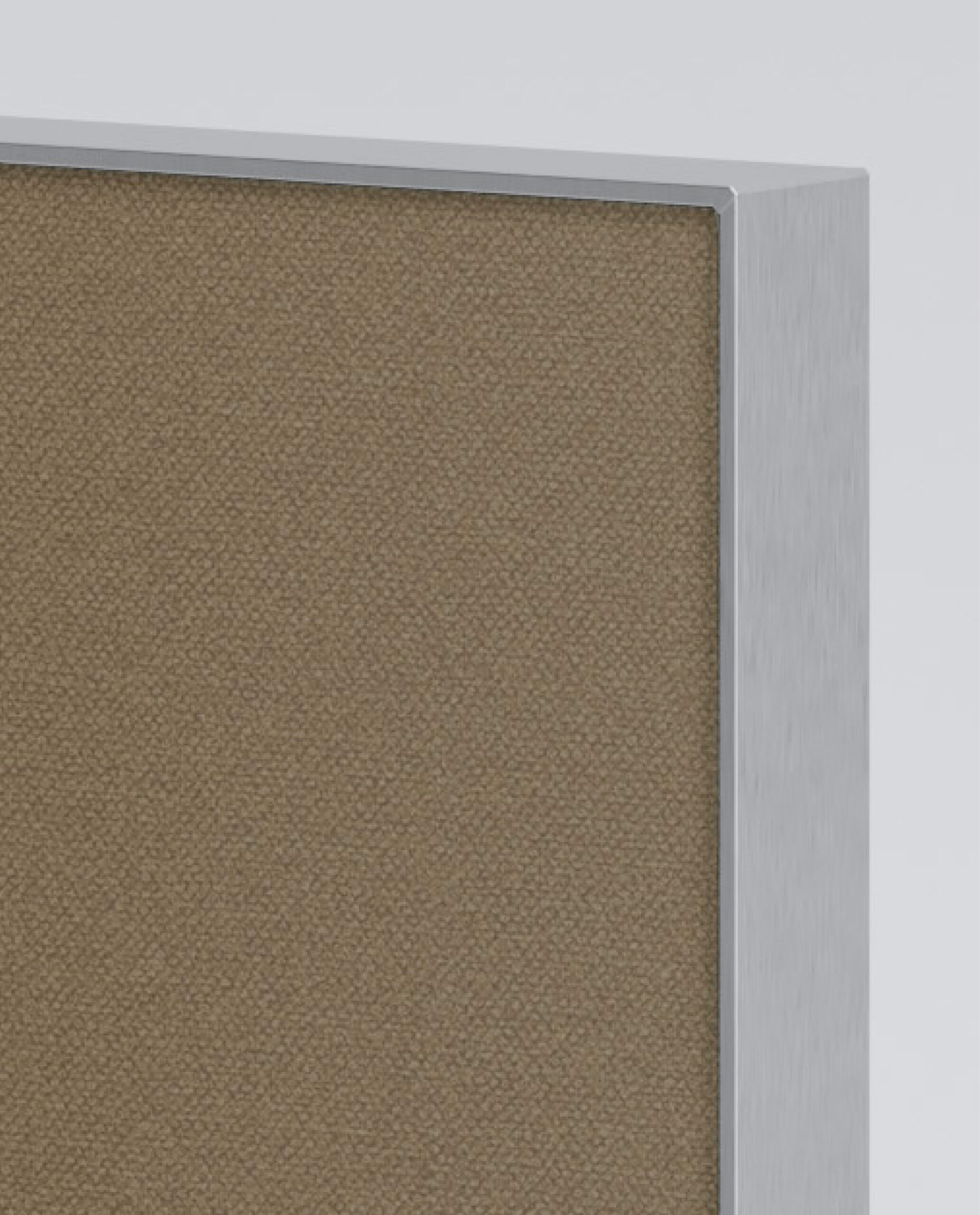

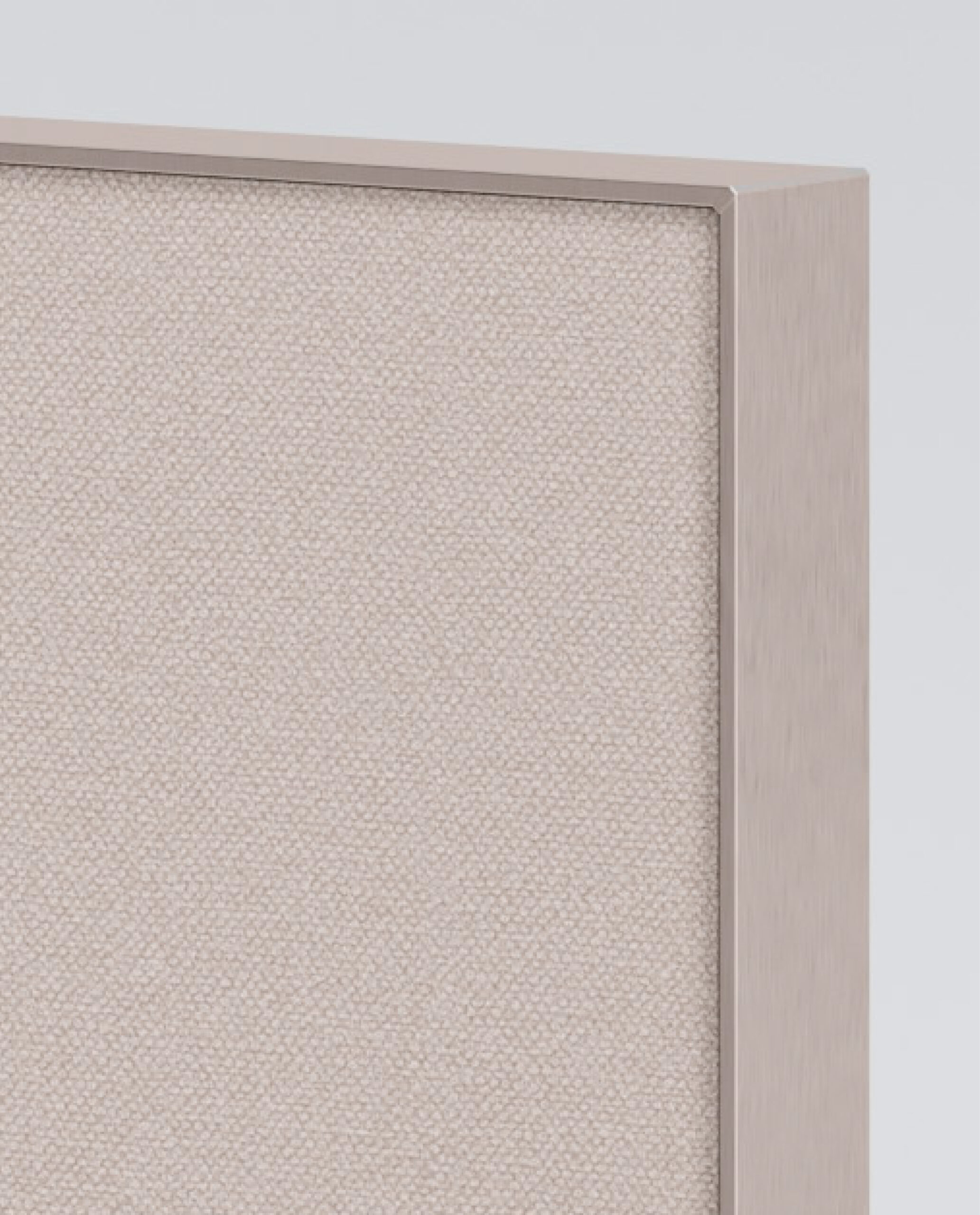

Standard Frame Colours 25
Canvas Design Options 1
for the Supersonic Wall Panel Artwork
Features
Built as an integrated acoustic system, each feature aligns performance, material responsibility and long-term durability. In the Artwork edition, curated art becomes part of the architectural surface, without altering acoustic integrity or circular construction.

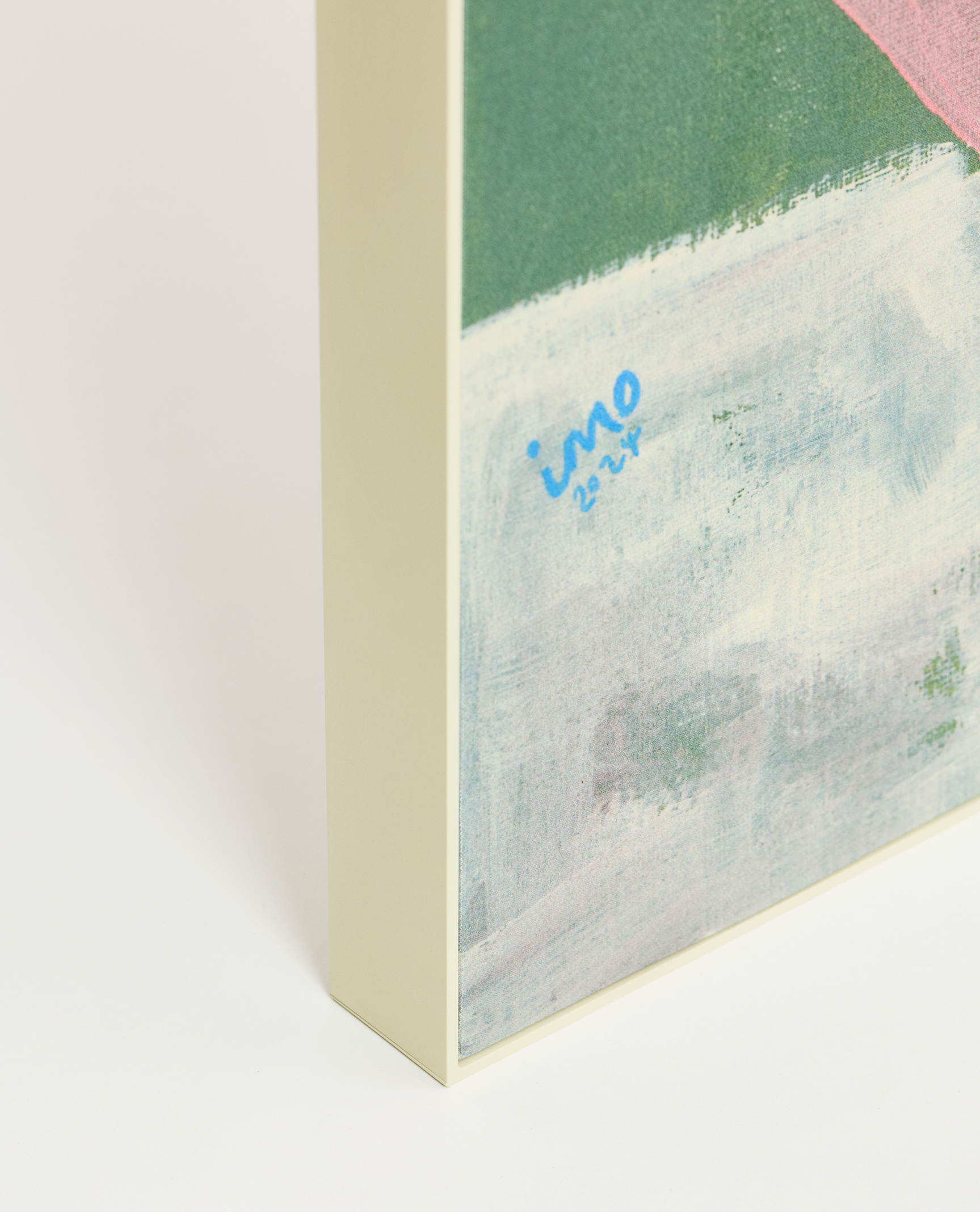

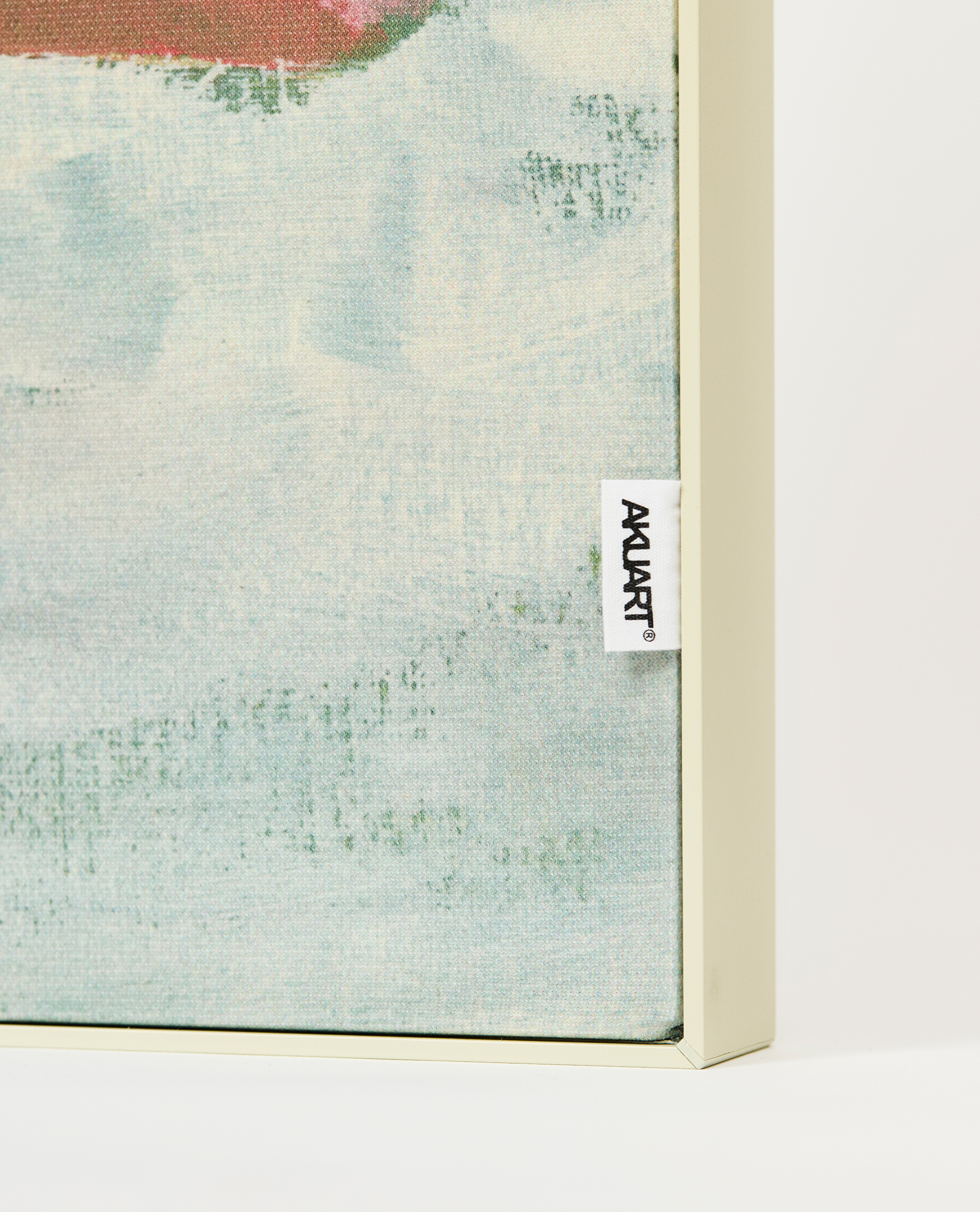

Details 5
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Designed for Disassembly
Mechanical construction enables dismantling, repair and material separation. Frame, absorber and textile can be replaced independently.
Changeable Curated Art Canvas
Printed on 100% recycled polyester textile, the artwork is exchangeable without affecting the acoustic core, allowing visual renewal while preserving the system.
Superior Print Quality
Engineered for superior print quality, bringing every detail and color nuance to life.
84% Recycled Material
Hydro CIRCAL 100R aluminium frame made from 100% post-consumer scrap. 50 mm acoustic core in 75% recycled PET fibres derived from plastic bottles. 100% recycled polyester canvas, supporting lower embodied impact across all primary components.
Verified Material Transparency
EPD, Möbelfakta, Oeko-Tex® and REACH compliance. Specification-ready documentation.
WALL OFFSET FRAME PROFILE
The wall offset frame profile compensates for uneven wall surfaces, ensuring precise alignment and a clean, consistent shadow line.

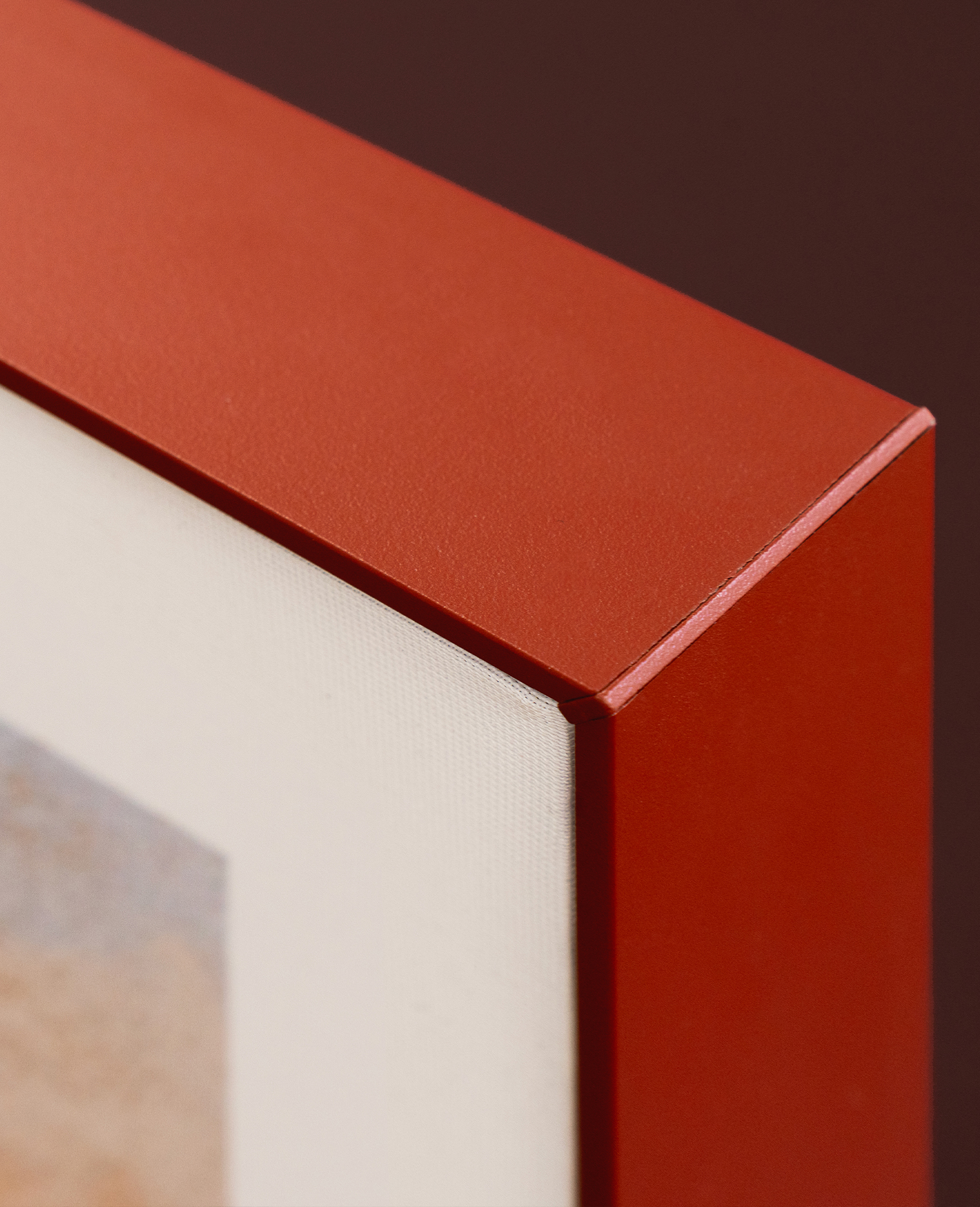

REINFORCED CORNERS
Integrated metal corner inserts ensure precise frame assembly and eliminate exposed or sharp edges, improving durability, safety, and overall finish quality.
Design for circularity
The Supersonic Wall Panel Artwork is designed to be repaired, renewed, and recycled. Instead of being used and discarded, each element is conceived to be maintained, renewed, and ultimately returned to the loop.
Mobelfakta Certified
The Supersonic Wall Panel range is Möbelfakta certified, a third-party validation of how we design and produce our solutions. The certification covers material choices, production methods, quality, transparency, and responsibility across the entire value chain. It reflects a structured approach to durability and documentation, aligned with the expectations of the Scandinavian market. Instead of being used and discarded, each element is conceived to be maintained, renewed, and ultimately returned to the loop.
ENVIRONMENTAL PRODUCT DECLARATION
At Akuart, we believe responsibility requires transparency. That is why we
invest in comprehensive Life Cycle Assessments (LCAs) and have published a third-party-verified Environmental Product Declaration (EPD) for the entire Supersonic Wall Panel range, prepared in accordance with the international standard EN 15804 + A2.

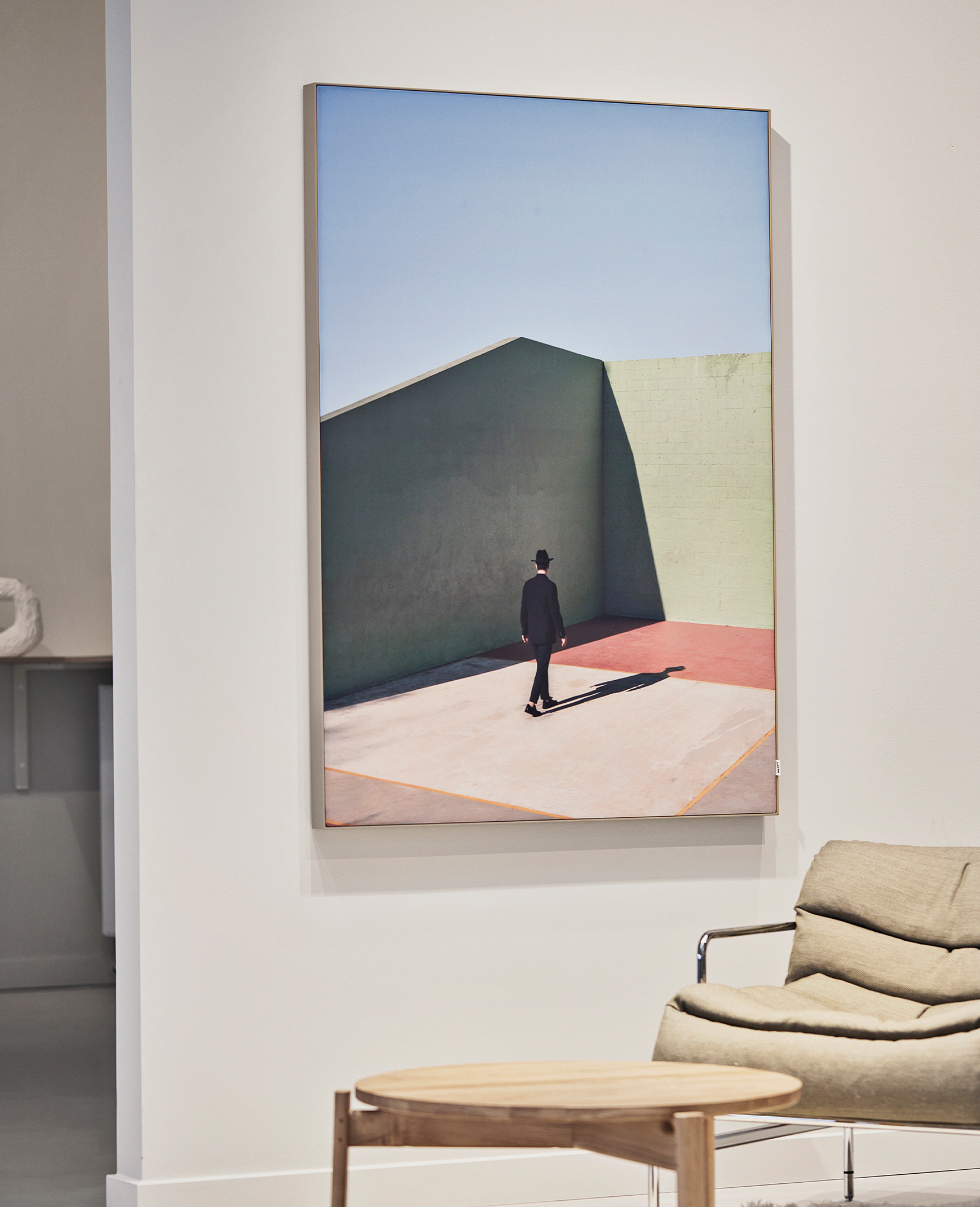

Supersonic Wall Panel Artwork gallery 5
Acoustic functionality
The Supersonic Wall Panel Artwork absorbs sound energy at the wall surface, reducing reverberation time and limiting reflected noise within the room. By controlling mid- and high-frequency reflections, it improves speech clarity, concentration and overall acoustic comfort in professional interiors.
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Independently Verified
Tested by independent acoustic engineers at the Technical University of Denmark in accordance with ISO 354
Acoustic Performance: Class A
Achieves Sound Absorption Class A (αw 0.95 / NRC 0.95) when mounted directly on the wall, reflecting standard installation conditions.
Transparent Performance Data
Acoustic ratings can vary depending on mounting configuration, particularly when additional air gaps are introduced behind a panel. Declared performance is based on direct wall mounting, ensuring alignment between documented values and real-world installation, and providing reliable data for acoustic modelling and tender documentation.
Application & Distribution Criteria
Placement should follow acoustic calculation and room-specific modelling, with panels located on primary reflection zones and specified relative to room volume and function to meet defined reverberation targets.
