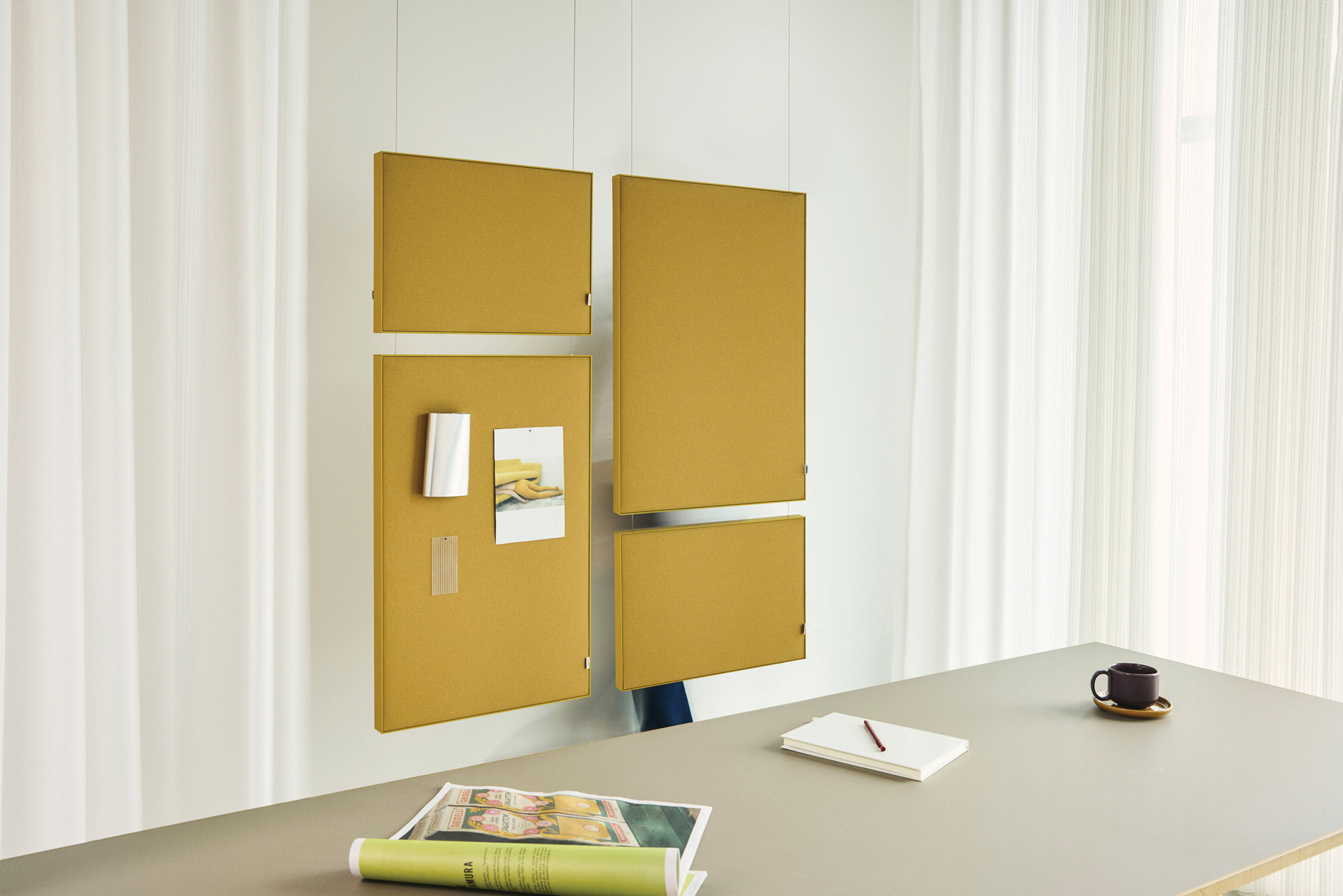

Supersonic Vertical Suspended Screen
A high-performance suspended acoustic screen with documented sound absorption and architectural integration. Engineered from high recycled-content materials and designed for disassembly, it provides spatial definition and acoustic control without occupying floor space.
Product Description
The Supersonic Vertical Suspended Screen is an effective suspended acoustic absorber for professional environments requiring measurable impact and transparent documentation. It reduces sound propagation and improves speech conditions, with documented acoustic performance. Constructed from high recycled-content materials and designed for disassembly, the modular aluminium frame ensures long service life. A defined range of formats, suspension solutions and finishes enables precise spatial zoning and integration.
Product Specifications

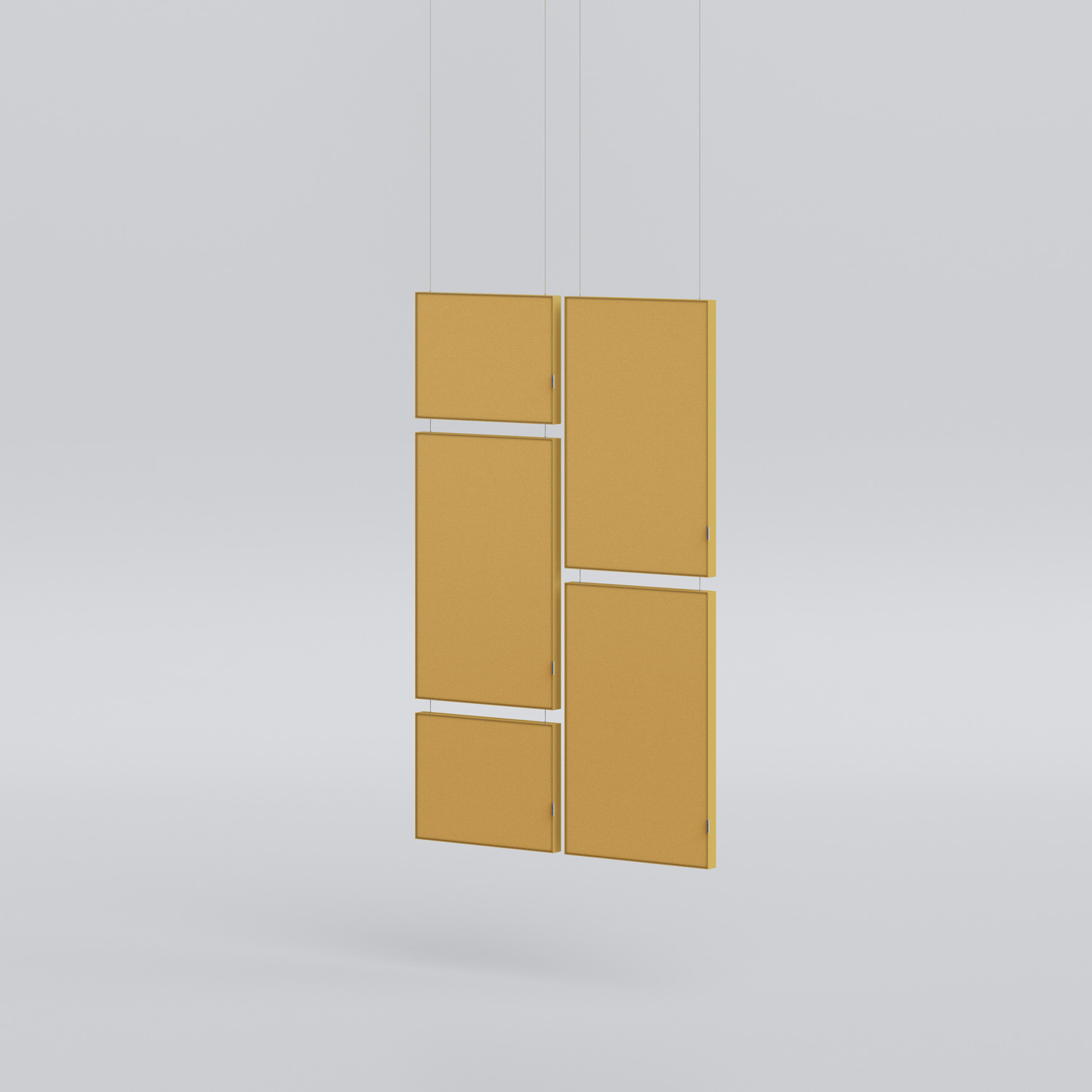

Supersonic Vertical Suspended Screen Dimensions
Depth: 50mm
Dimensions:
Low version:
3 predefined patterns (A, B, C).
Column size: 600 x 1450 mm + 50 mm air gap
Medium version:
3 predefined patterns (D, E, F).
Column size: 600 x 1950 mm + 50 mm air gap
High version:
3 predefined patterns (G, H, I).
Column size: 600 x 2450 mm + 50 mm air gap
Supersonic Vertical Suspended Screen Materials
Acoustic material:
50 mm PET with 75% fibres from recycled plastic bottles.
Frame:
Aluminium with 75% upcycled aluminium scrap. Fine structure powder coating.
Corners:
Zink inserts. Fine structure powder coating.

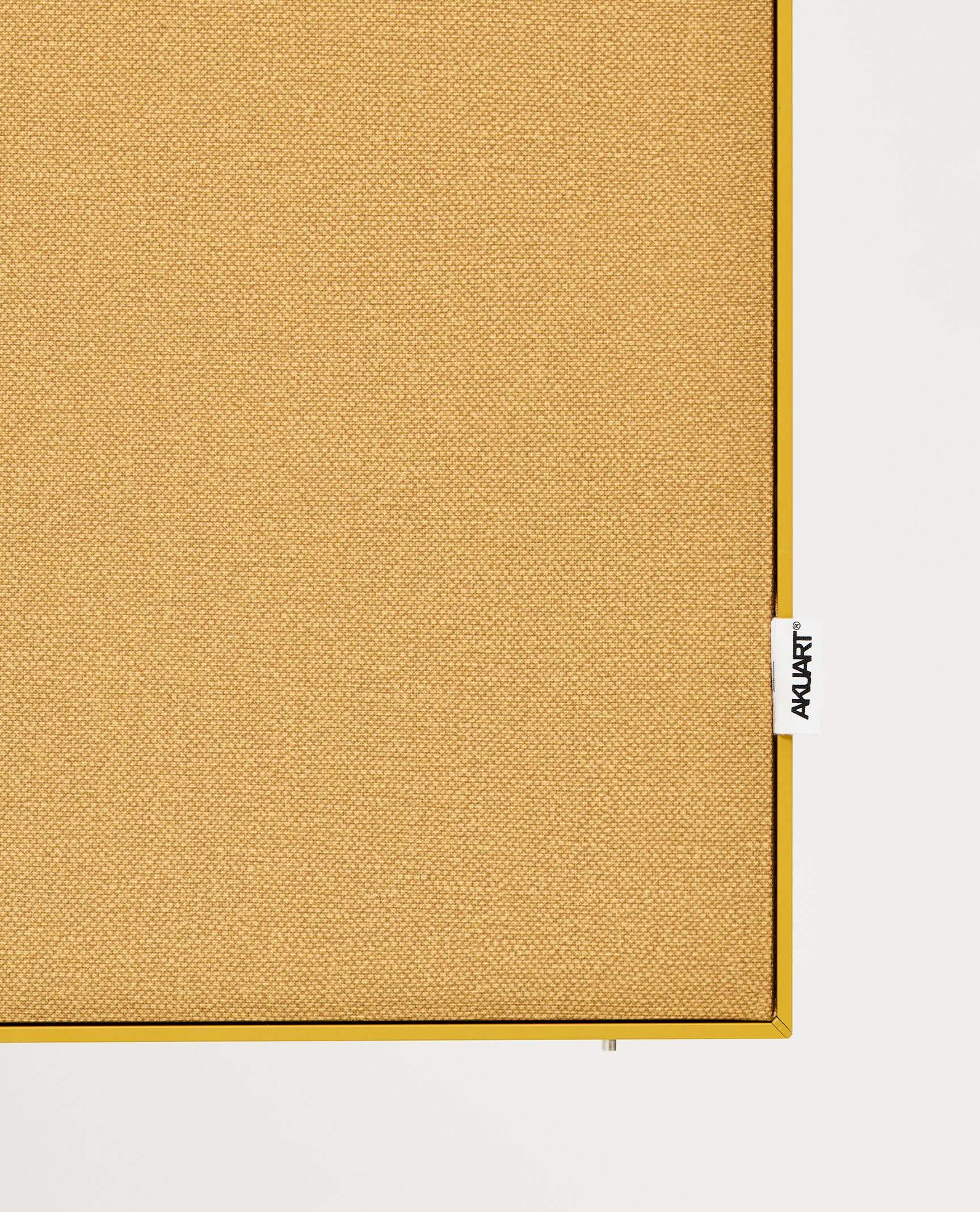

Canvas:
Polyester made with 100% recycled polyester fibres.

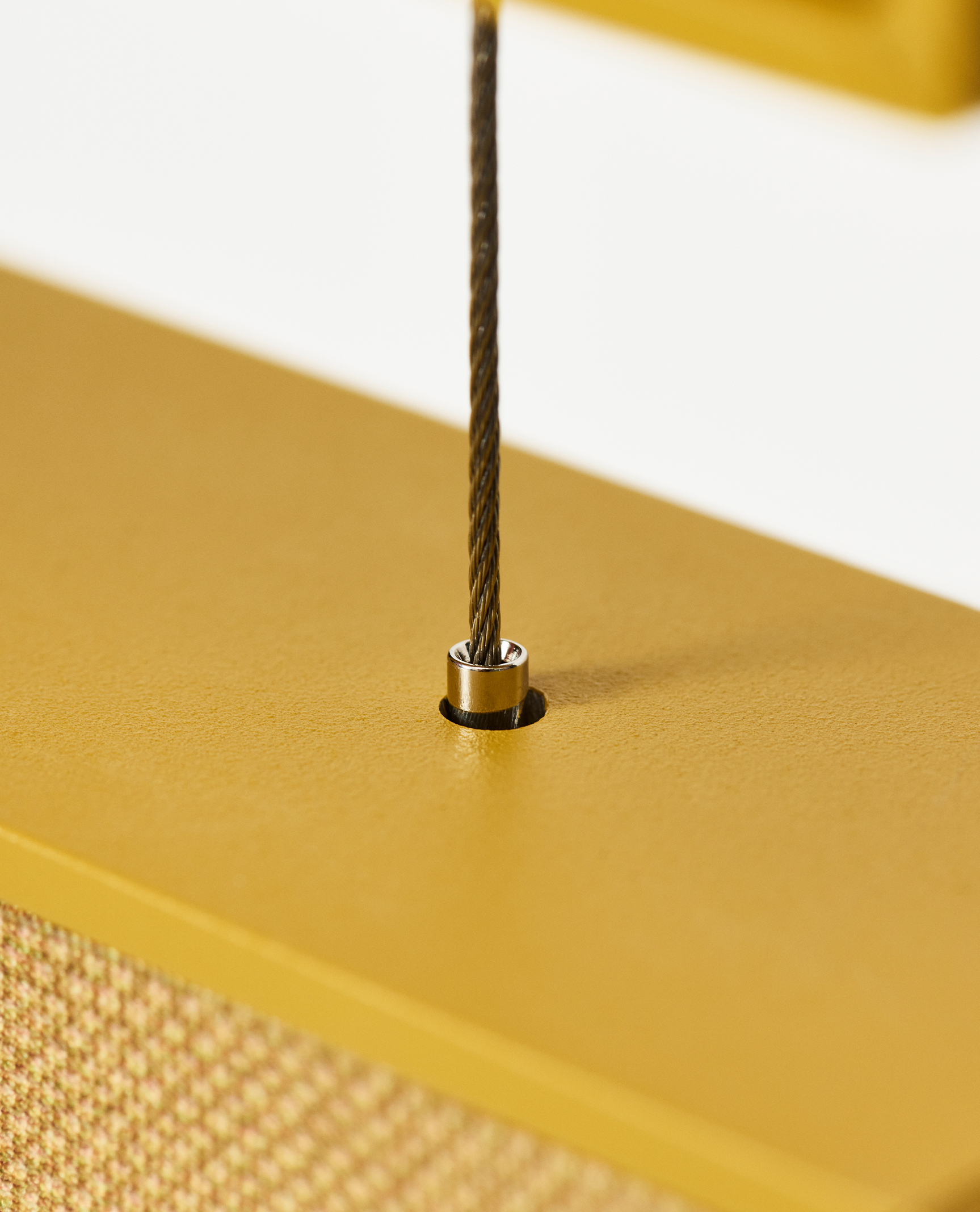

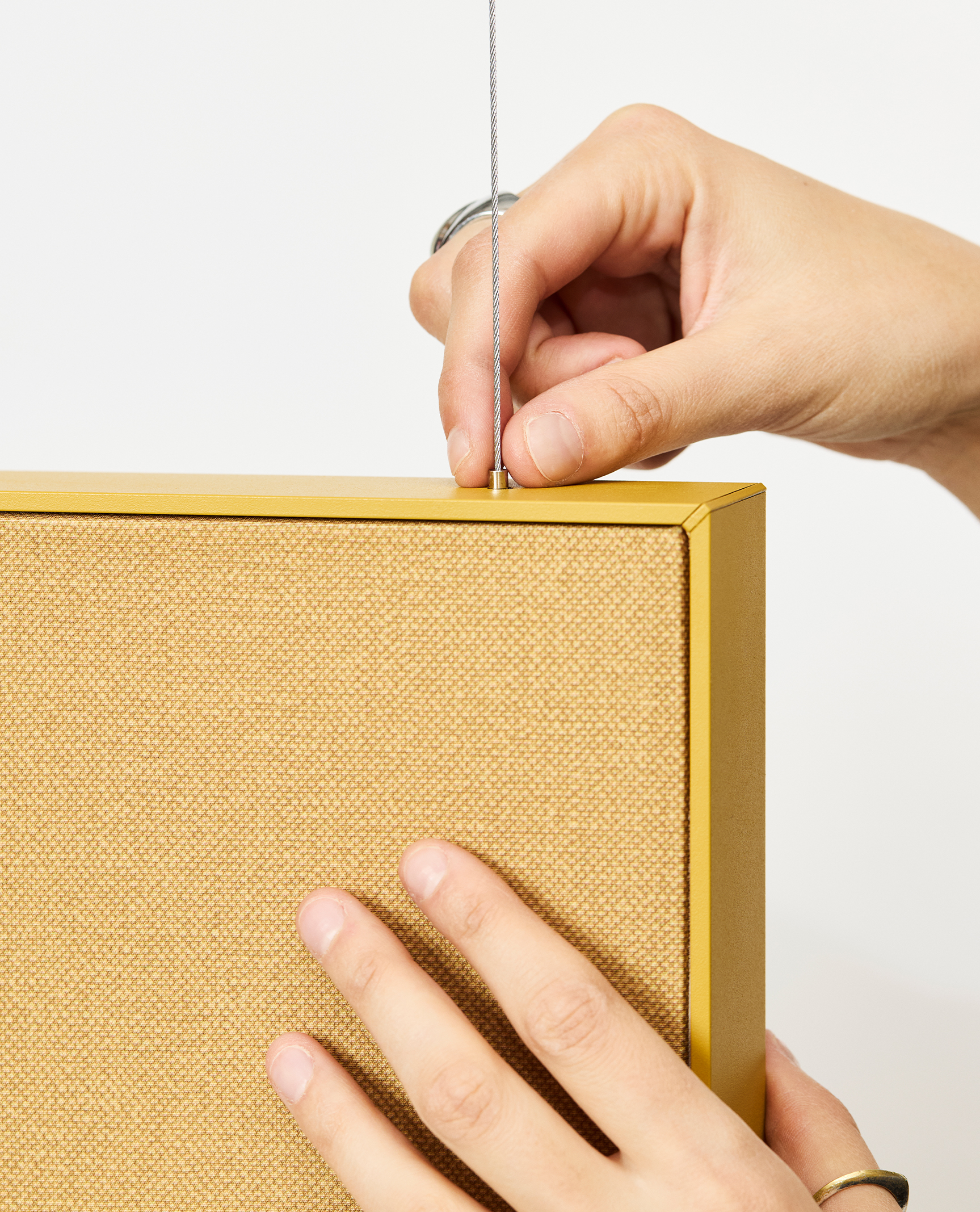

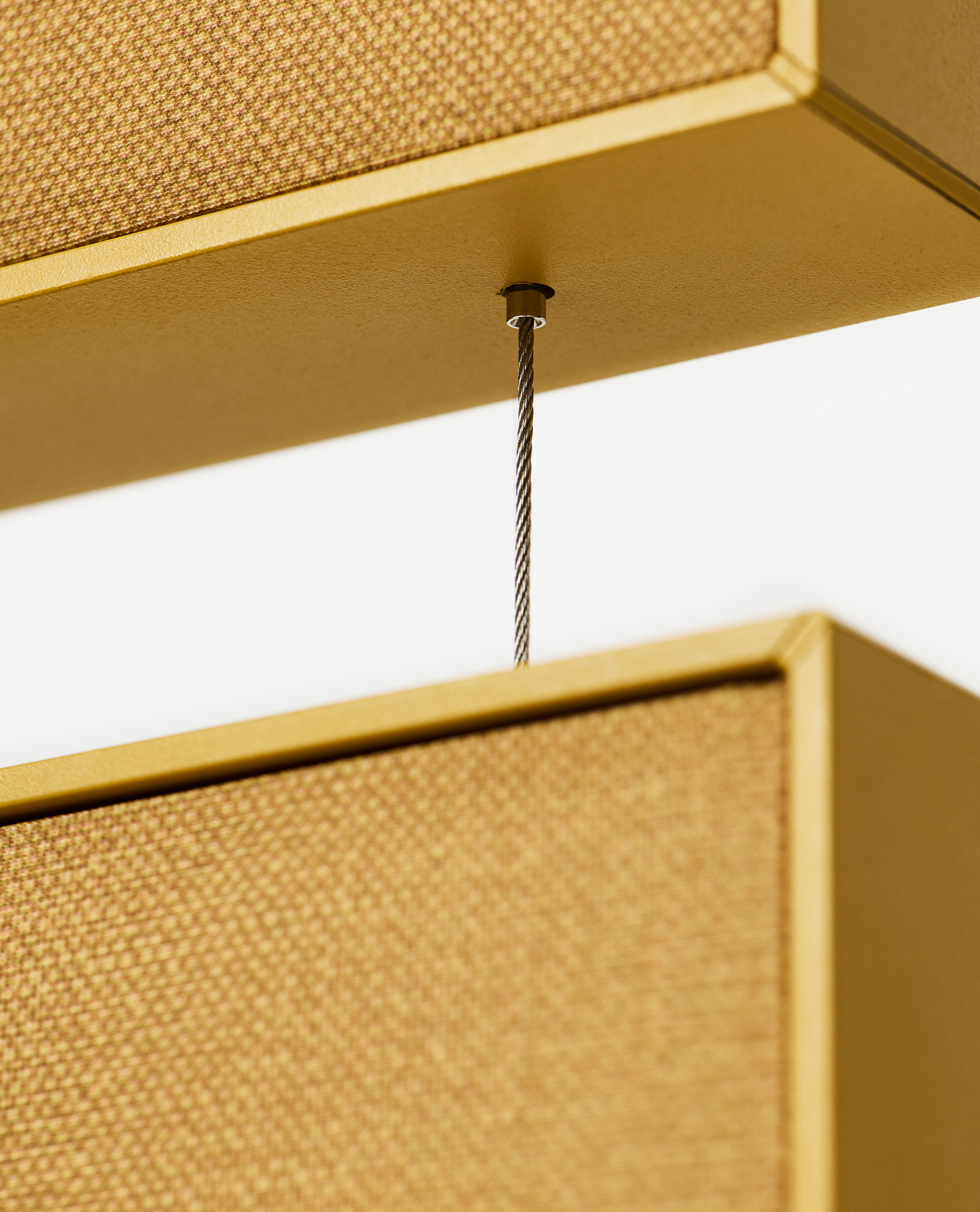

Mounting:
Steel wires.
Supersonic Vertical Suspended Screen Acoustic Functionality
Supersonic Vertical Suspended Screen Downloads
Please find and download all relevant material through our digital showroom.

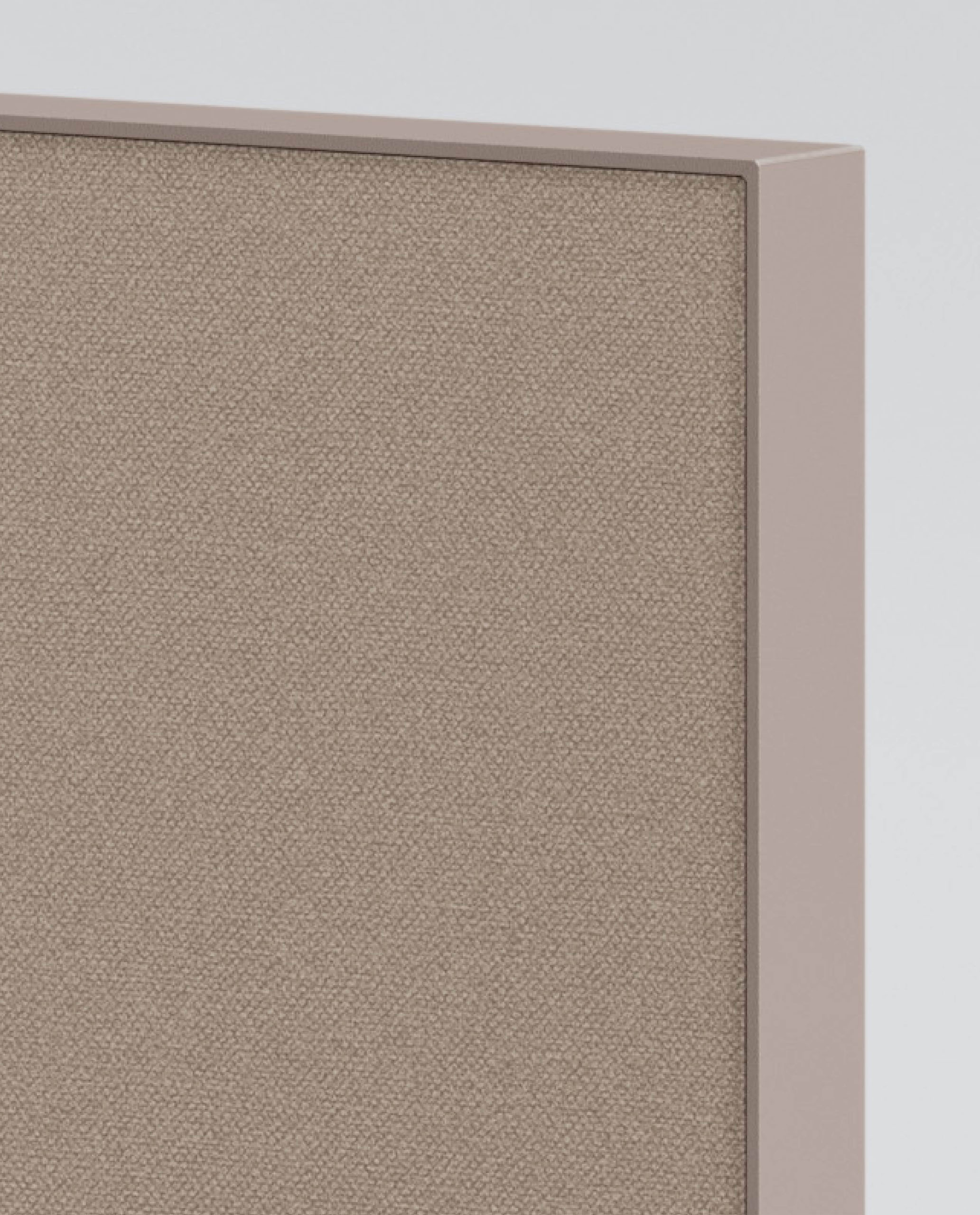

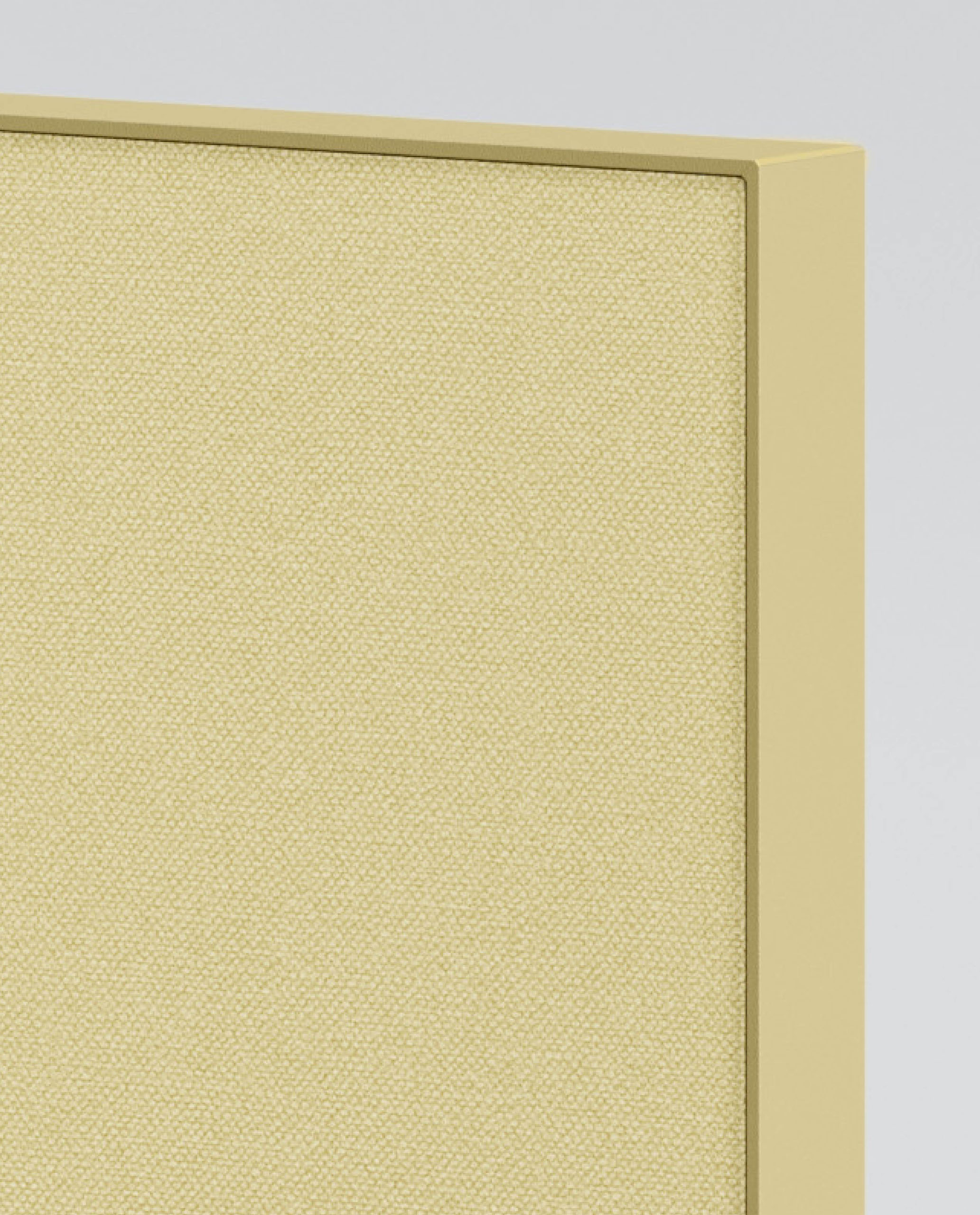

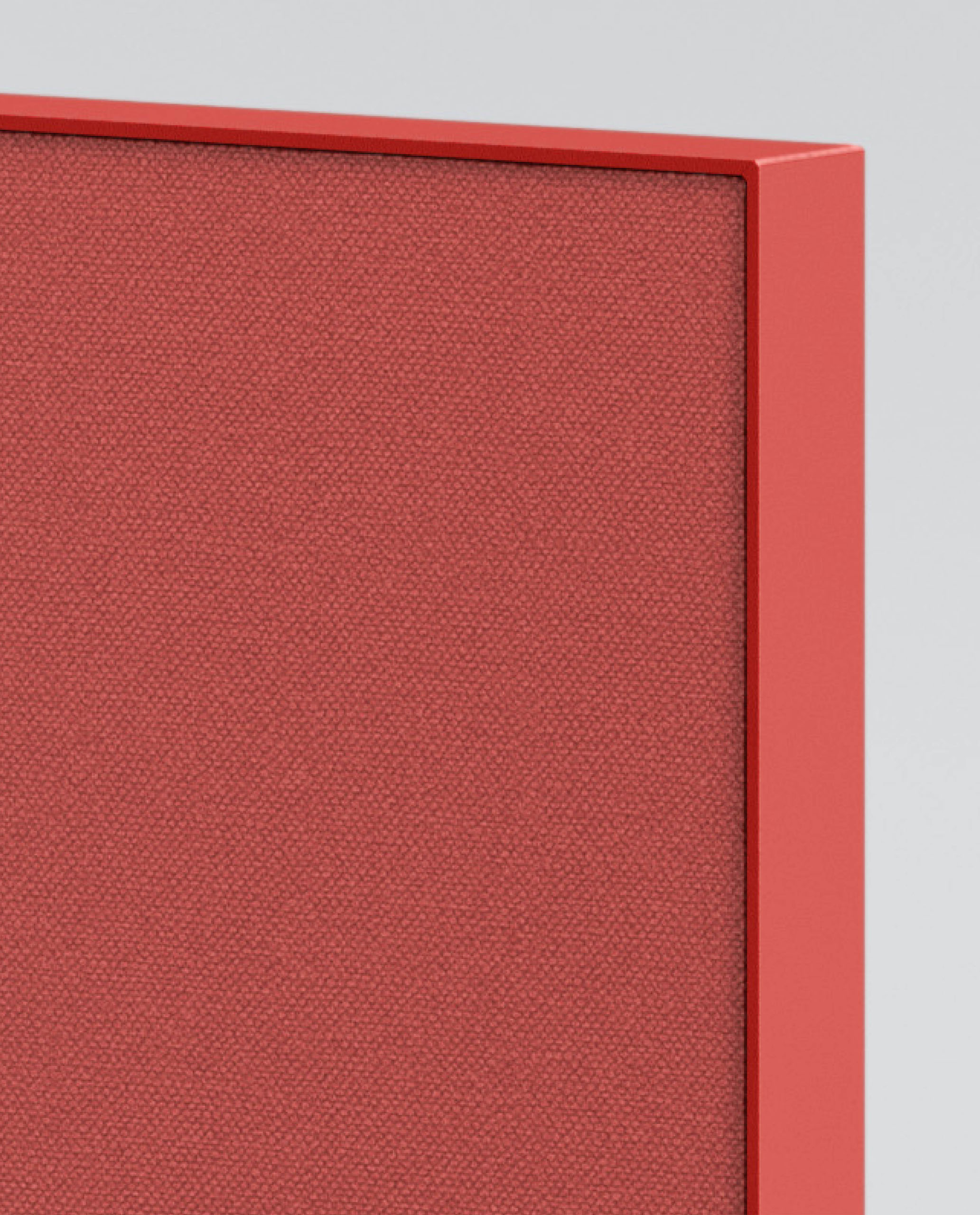

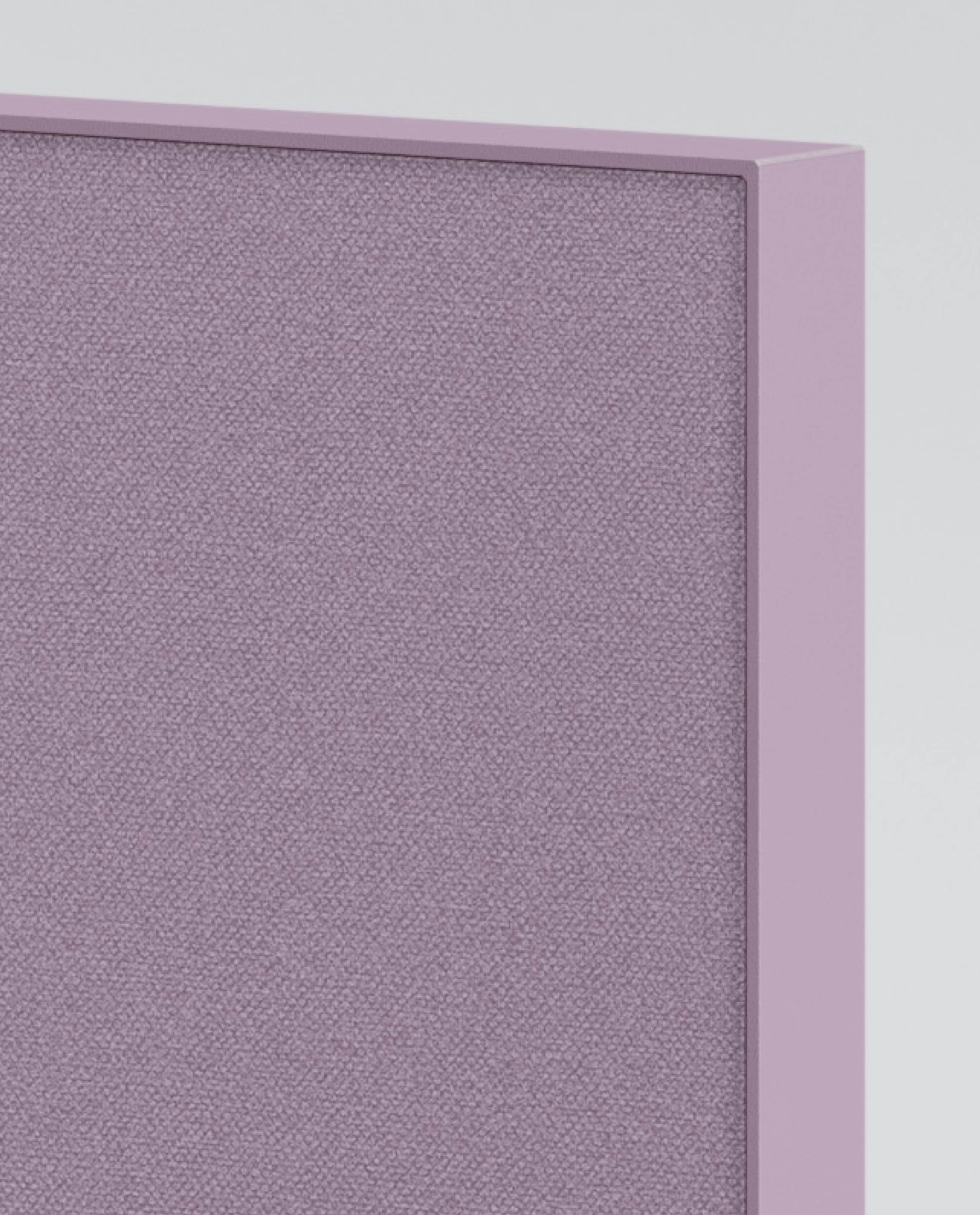

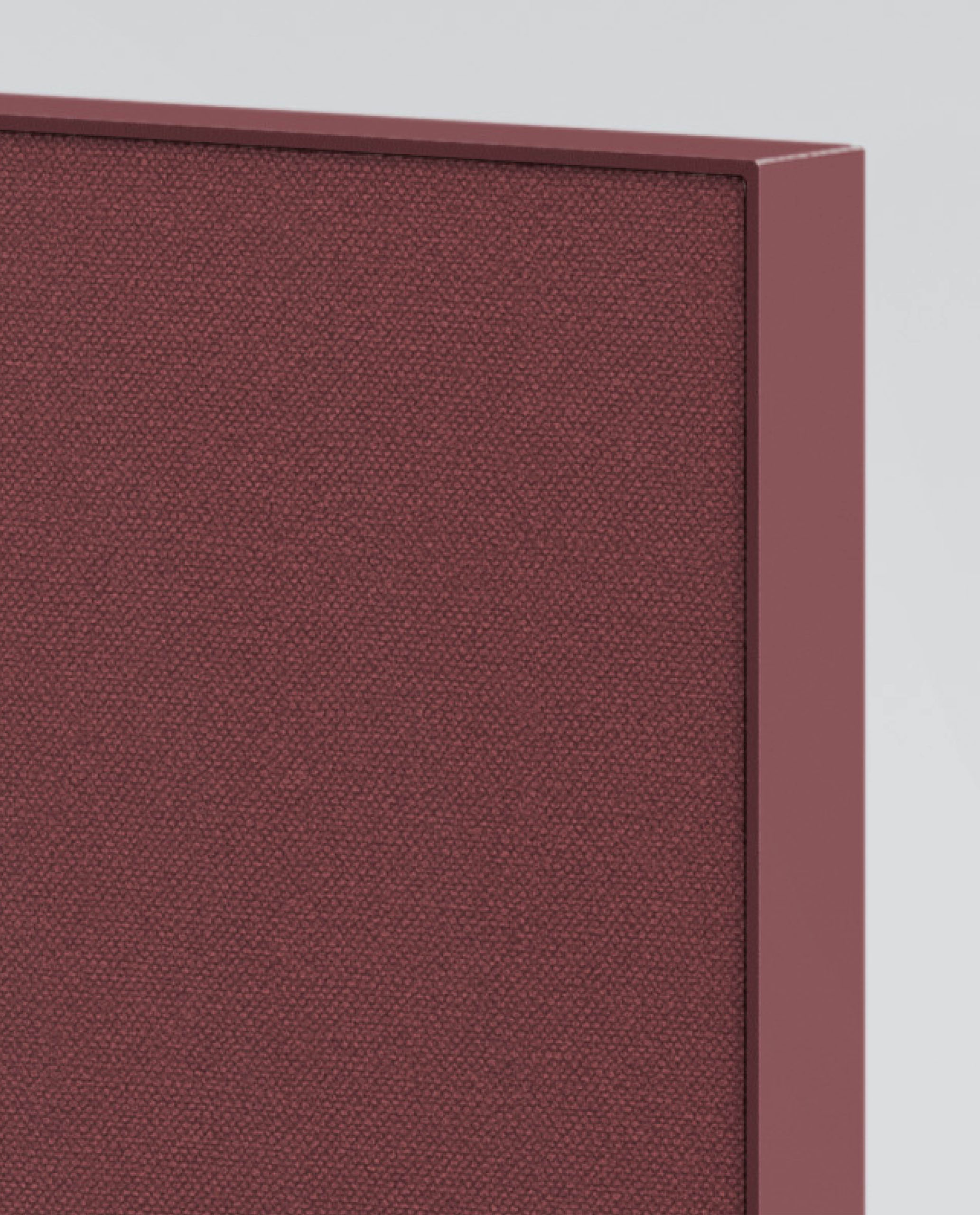

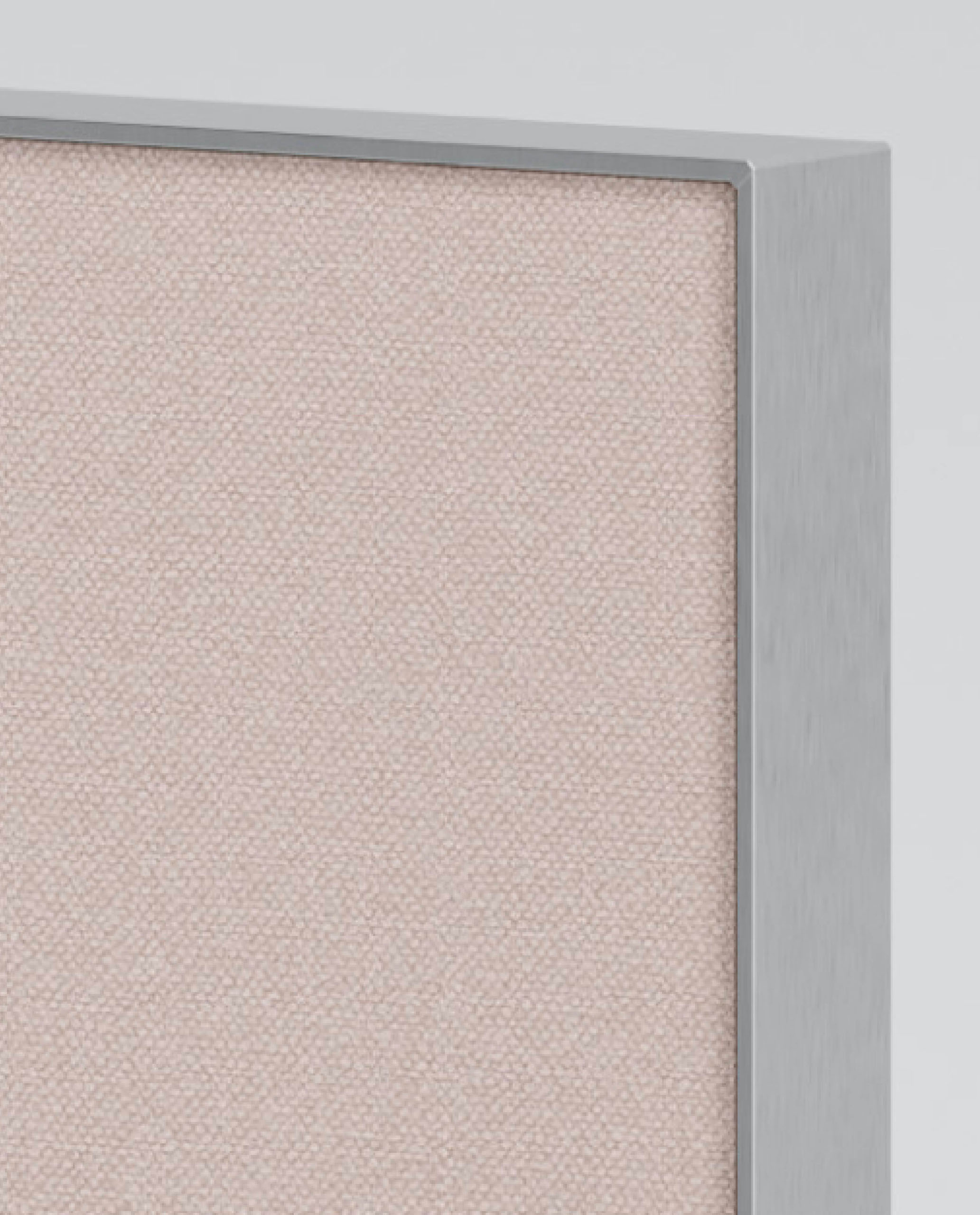

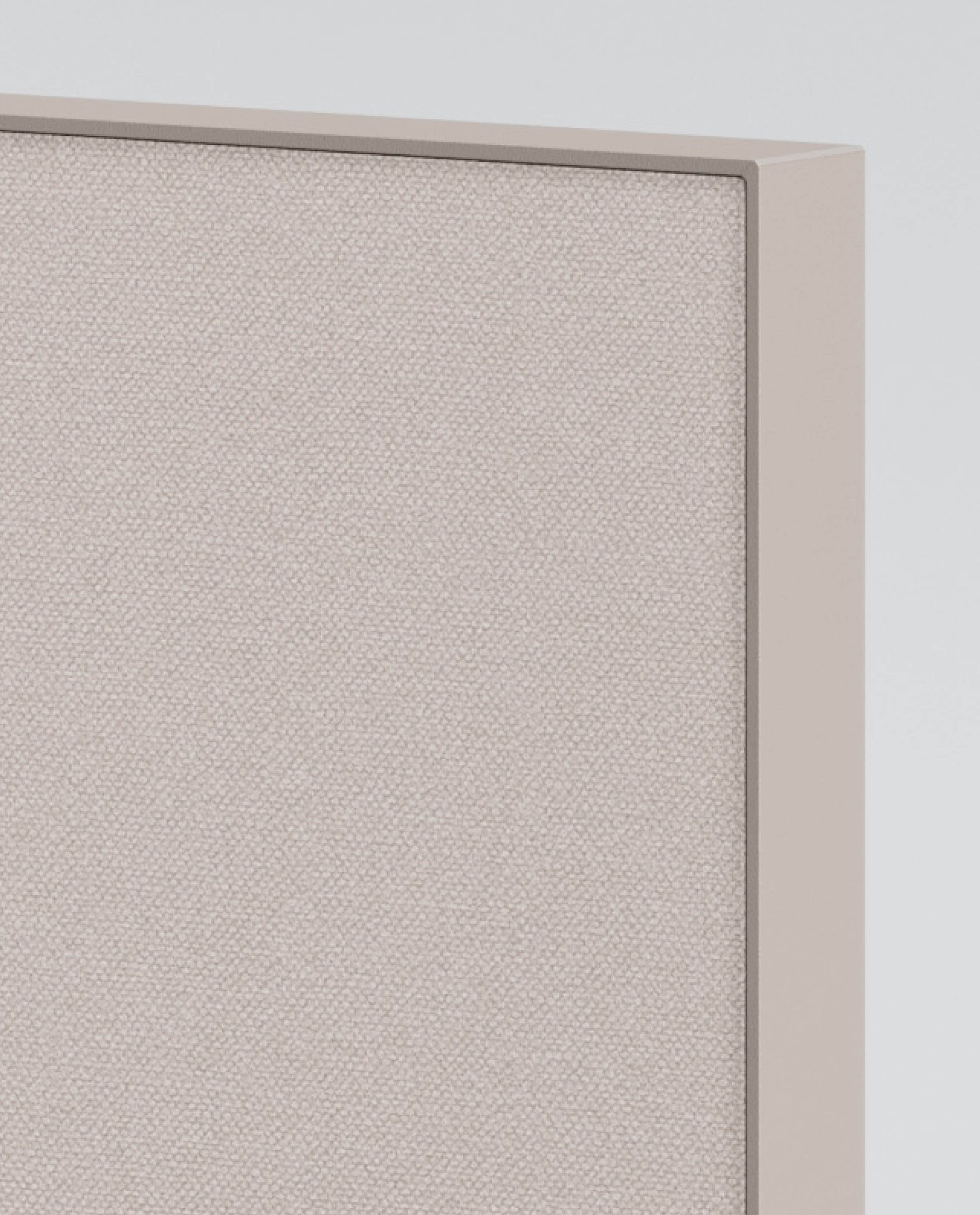

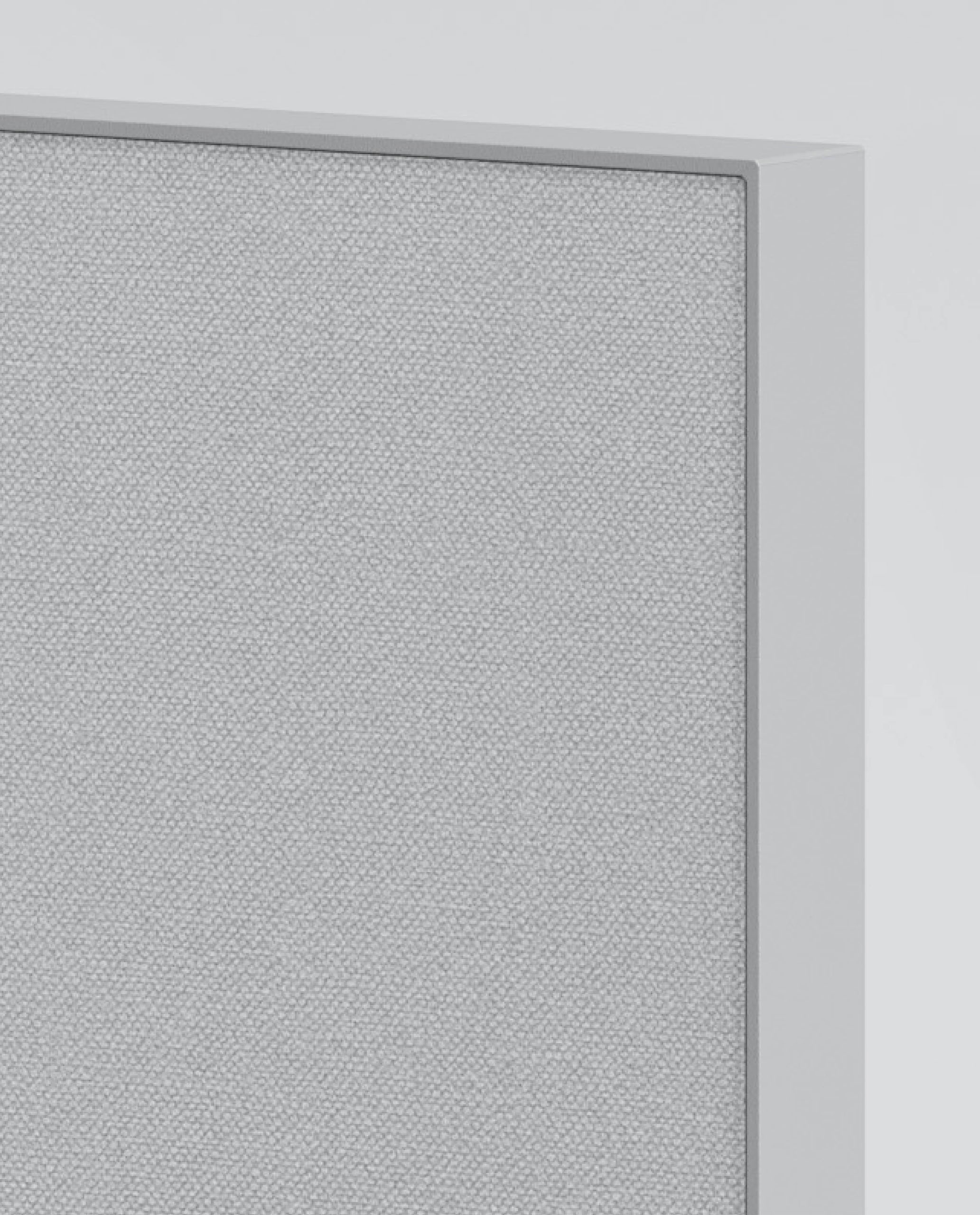

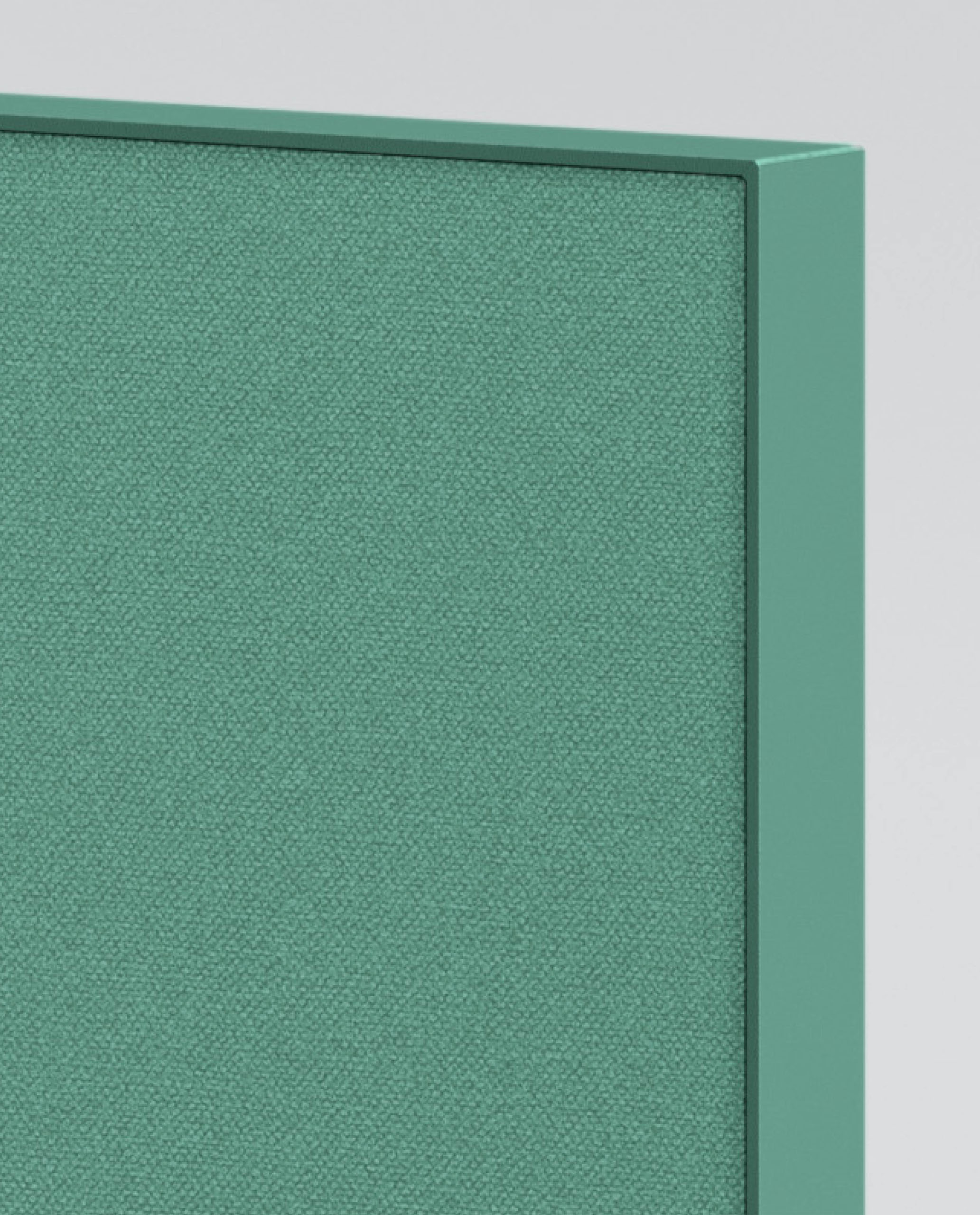

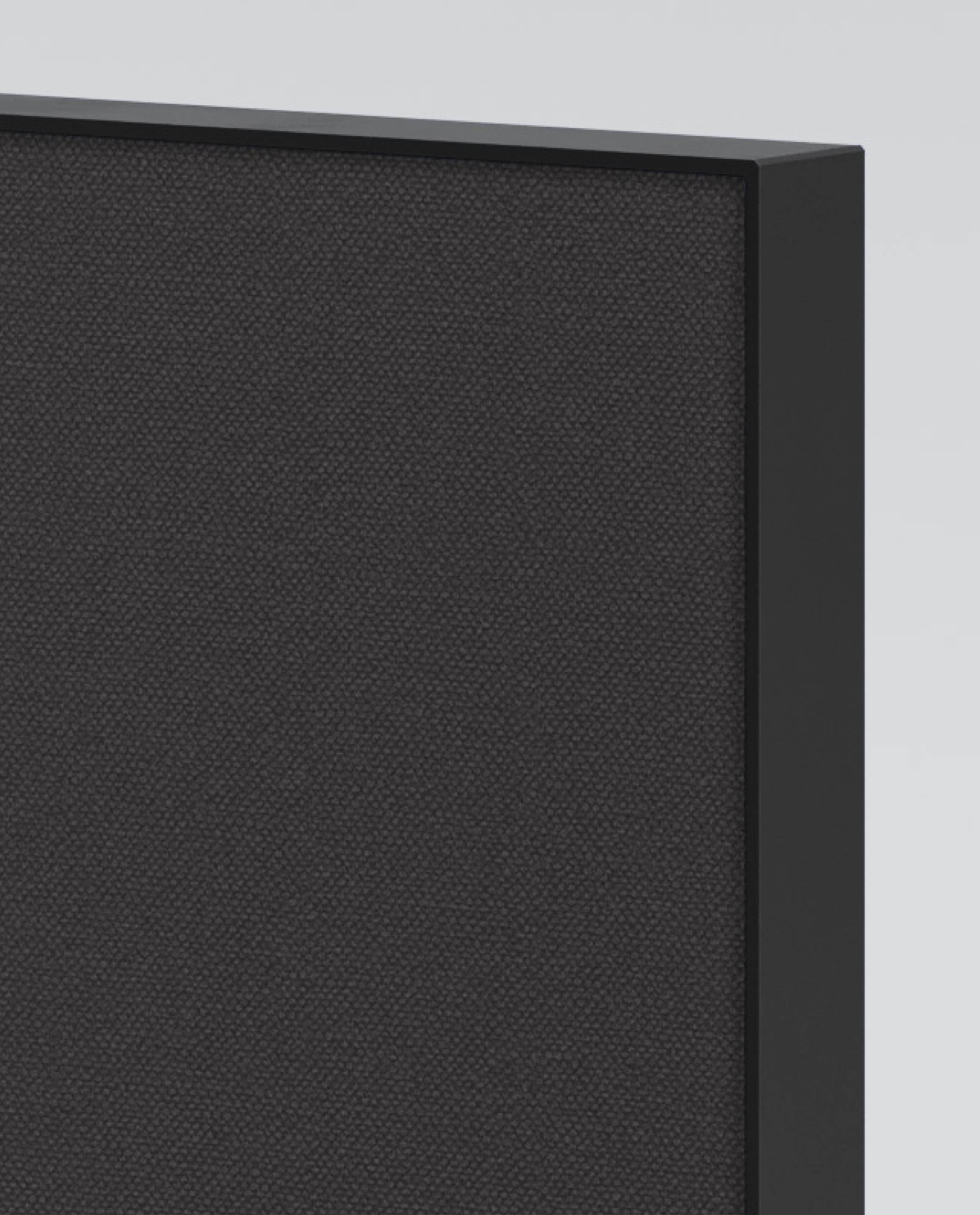

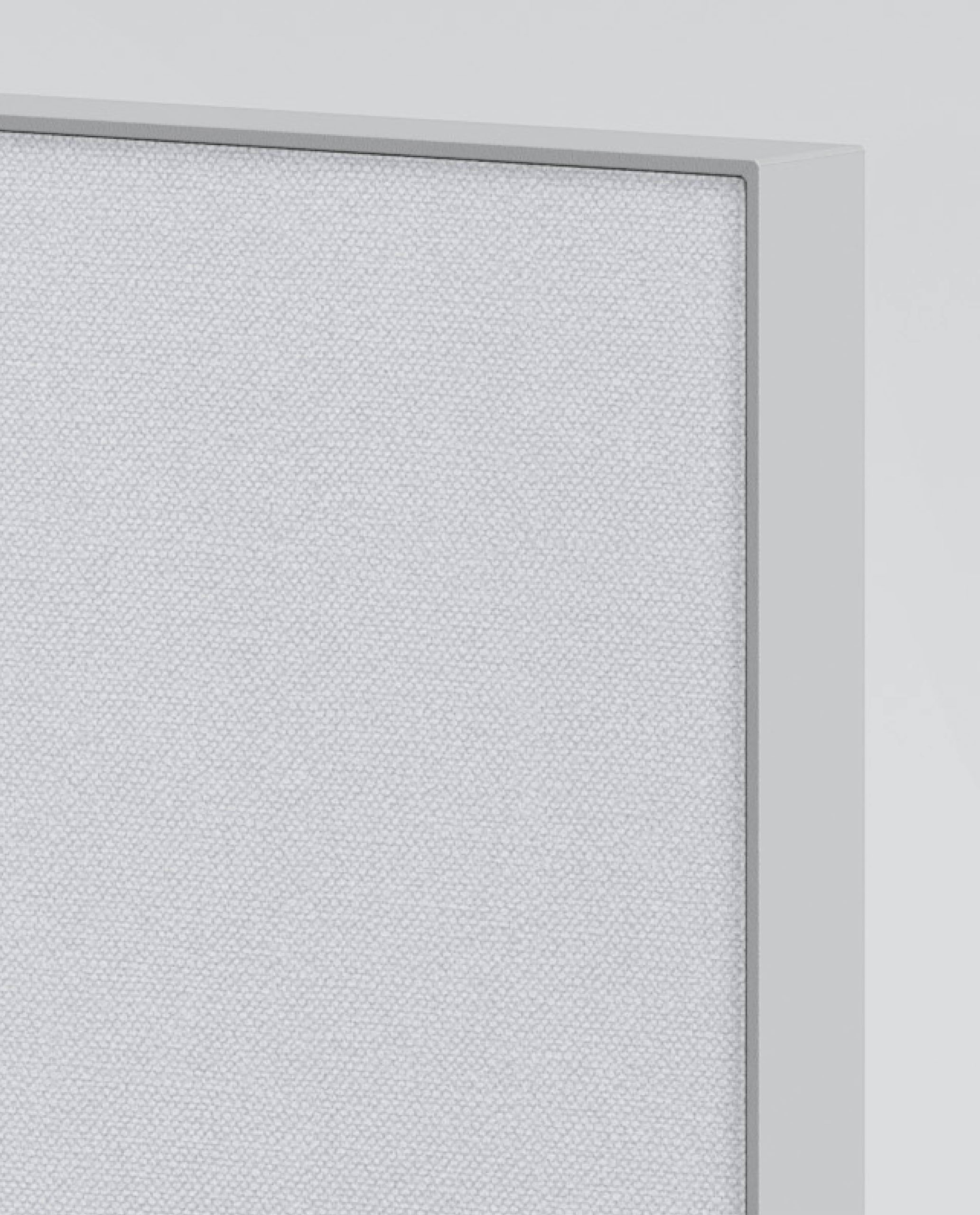

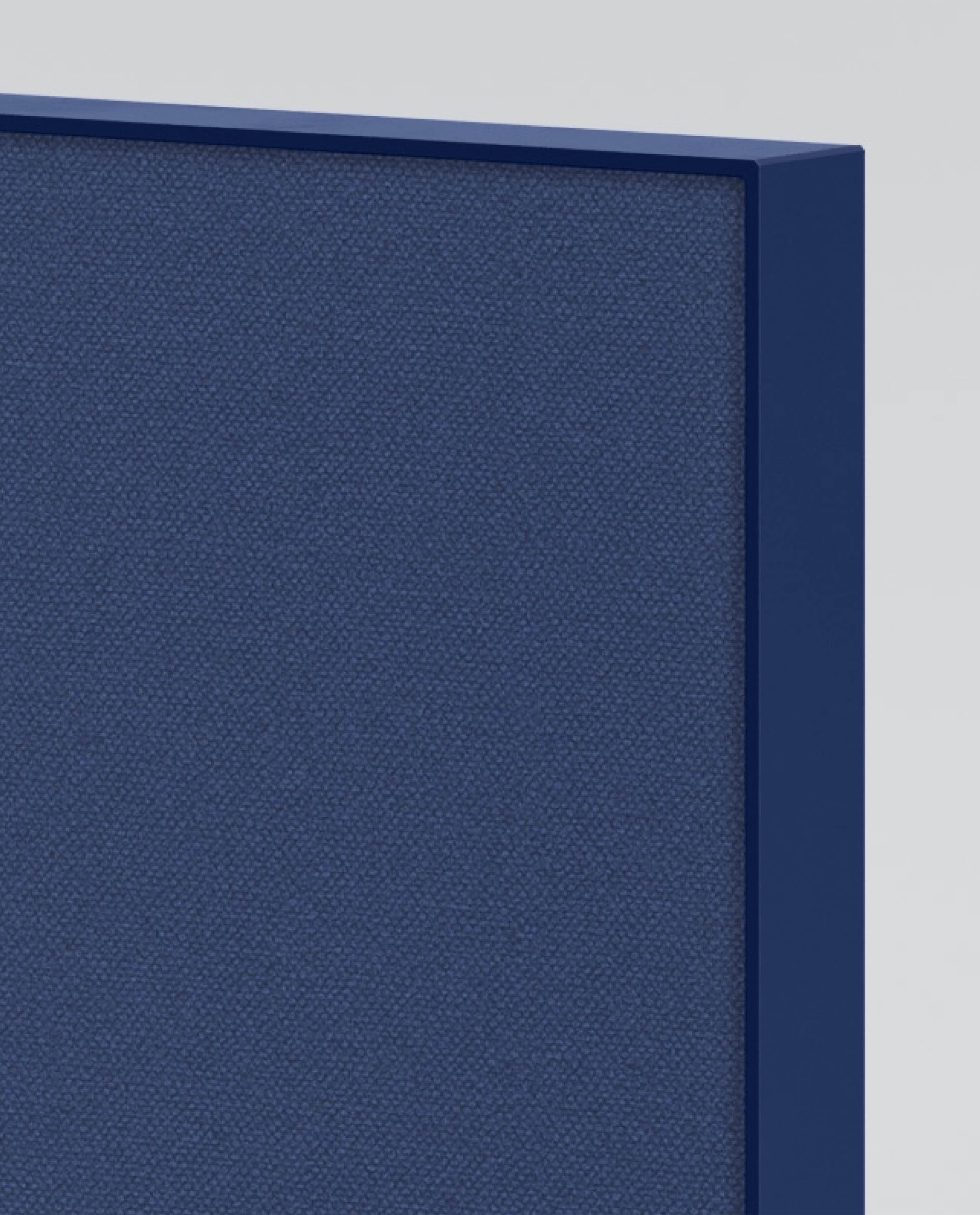

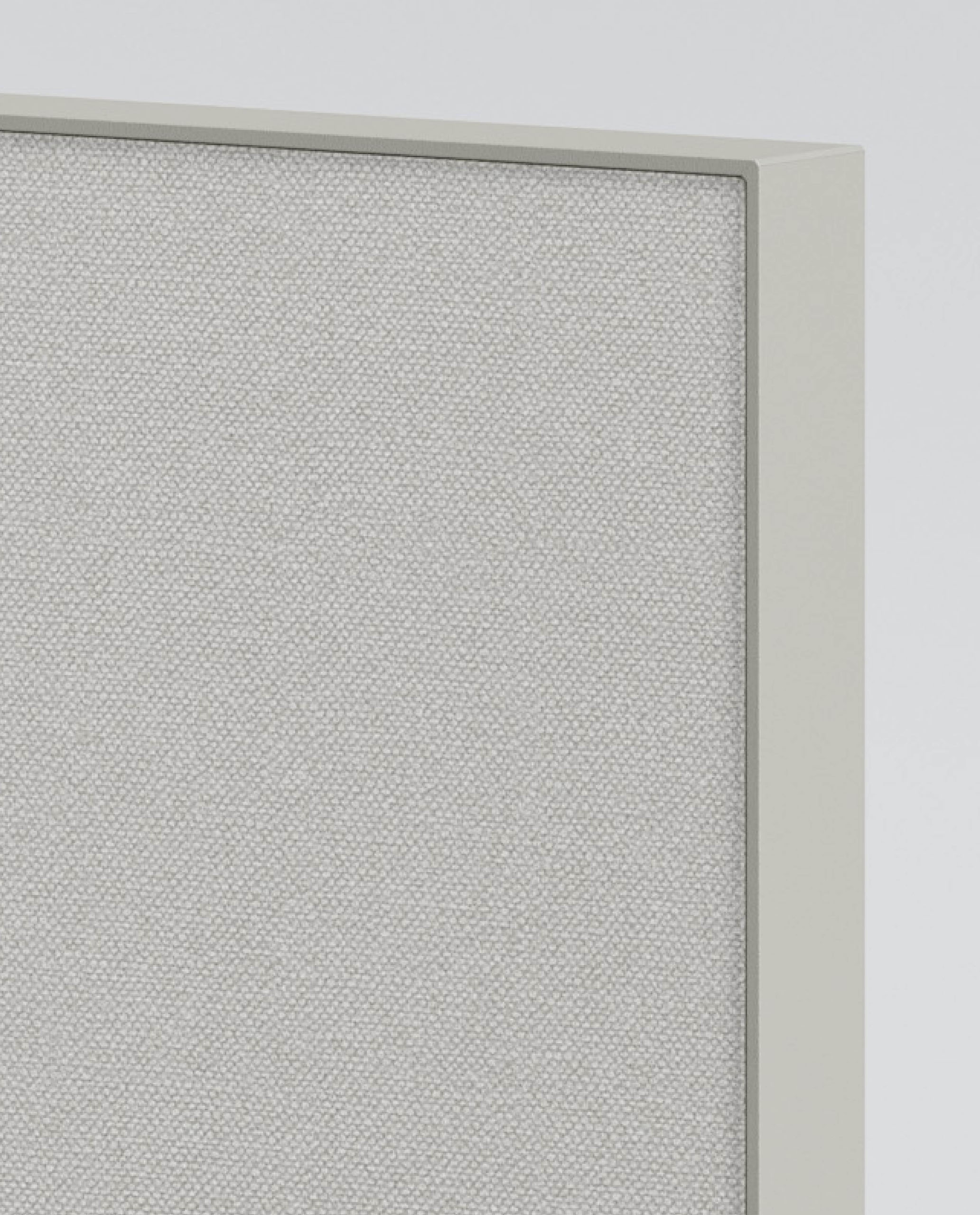

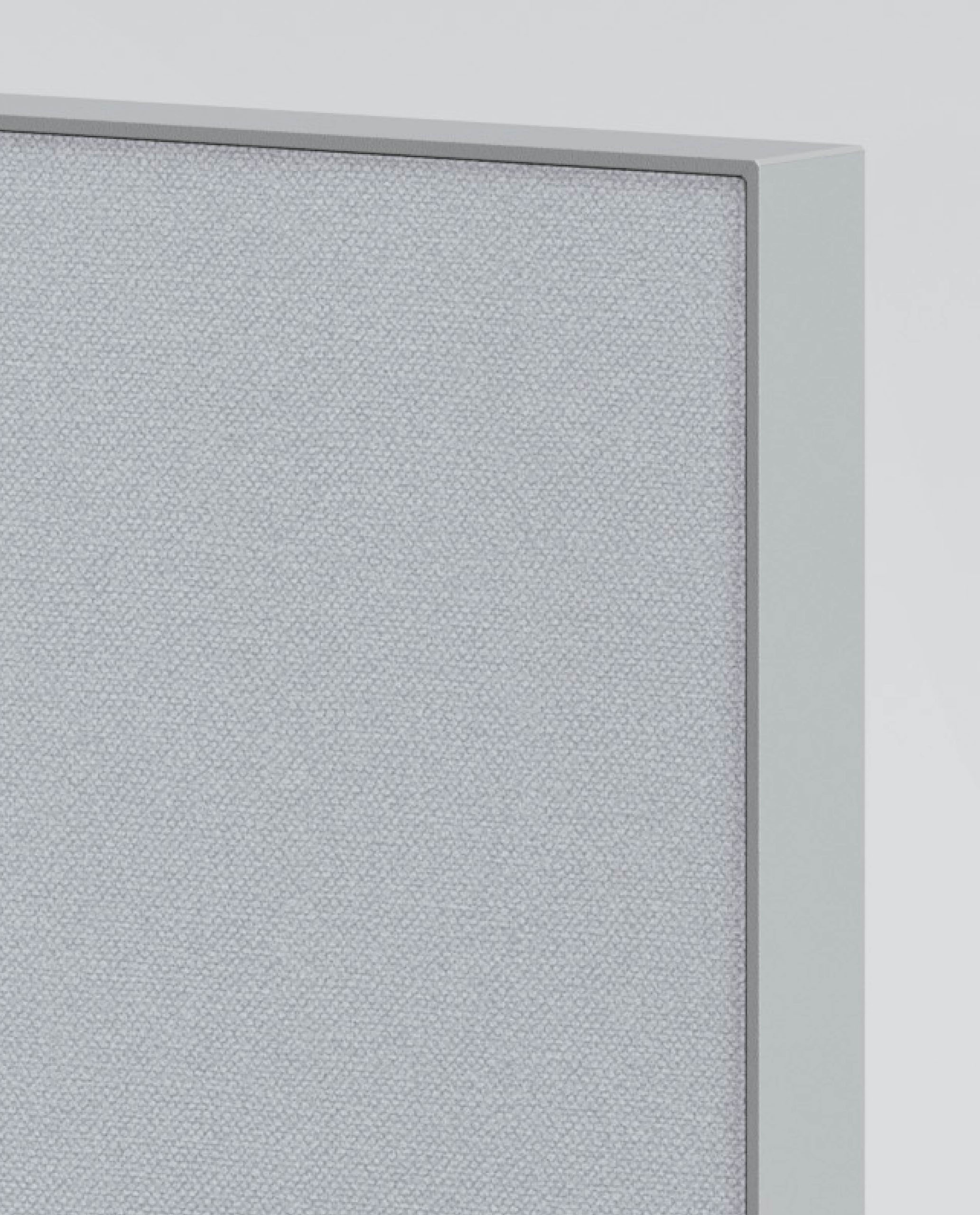

Standard Frame Colours 25

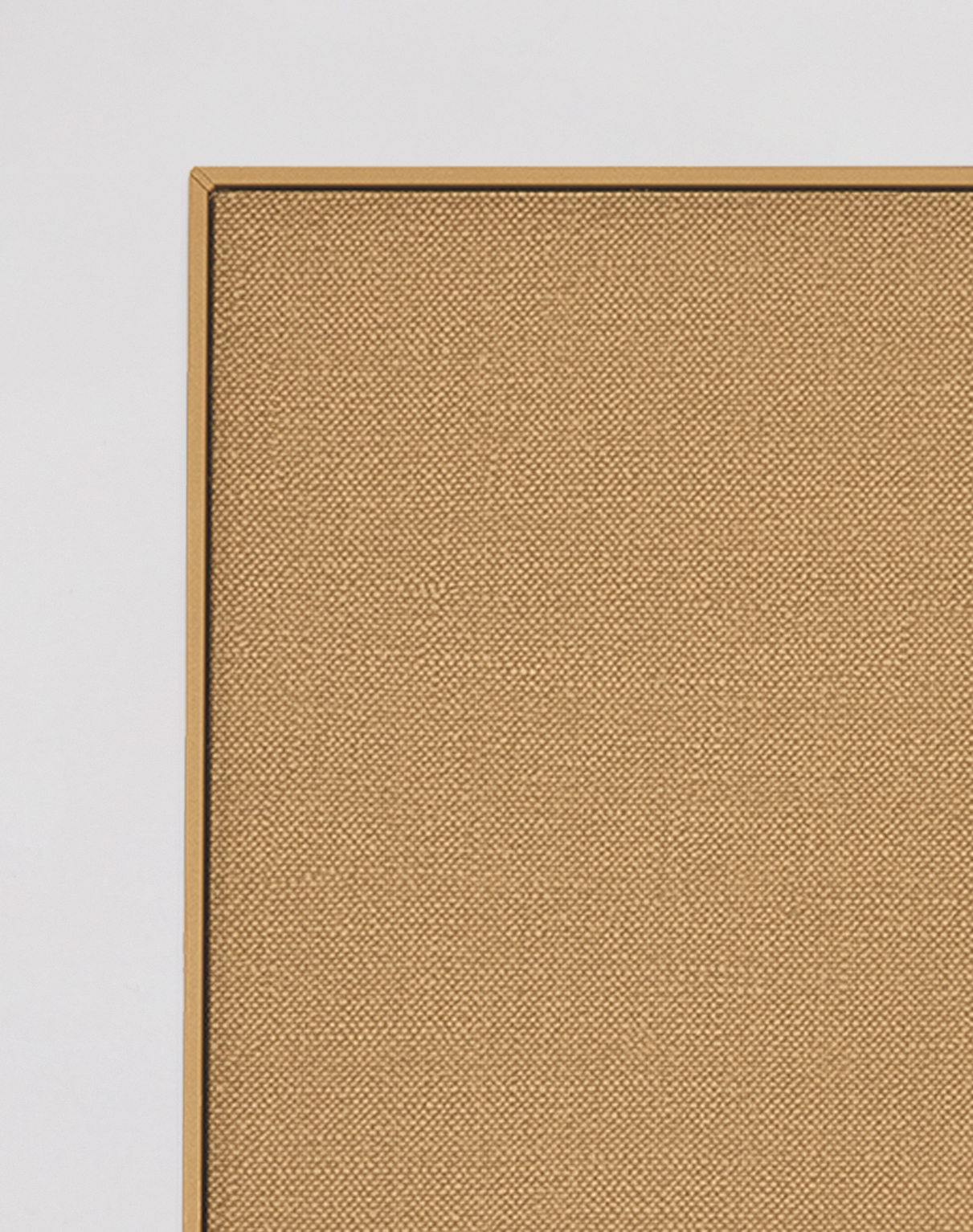

Canvas Design Options 1
for the Supersonic Vertical Suspended Screen
Features
Developed as part of a coherent system, each element of the Vertical Suspended Screen aligns acoustic efficiency, material responsibility and long-term durability. From its suspended construction to flexible reconfiguration within changing layouts, the design supports circular use, adaptability and consistent performance over time.
Details 9
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Verified Acoustic Performance
Engineered as a high-performance suspended absorber, the Vertical Suspended Screen contributes to reduced reverberation and improved speech conditions in open environments. Third-party acoustic testing ensures reliable, documented performance suitable for professional specification.

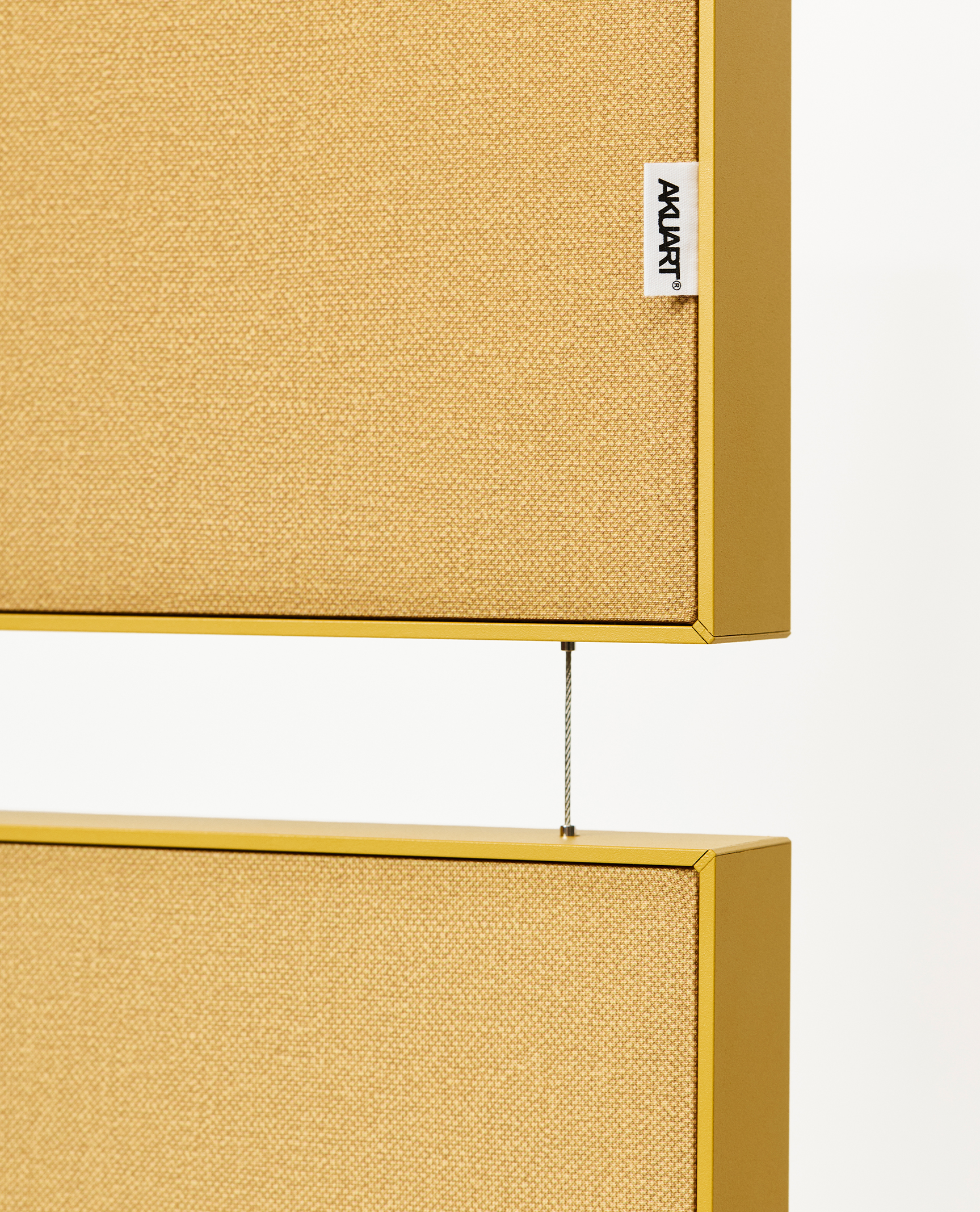

Suspended & Flexible

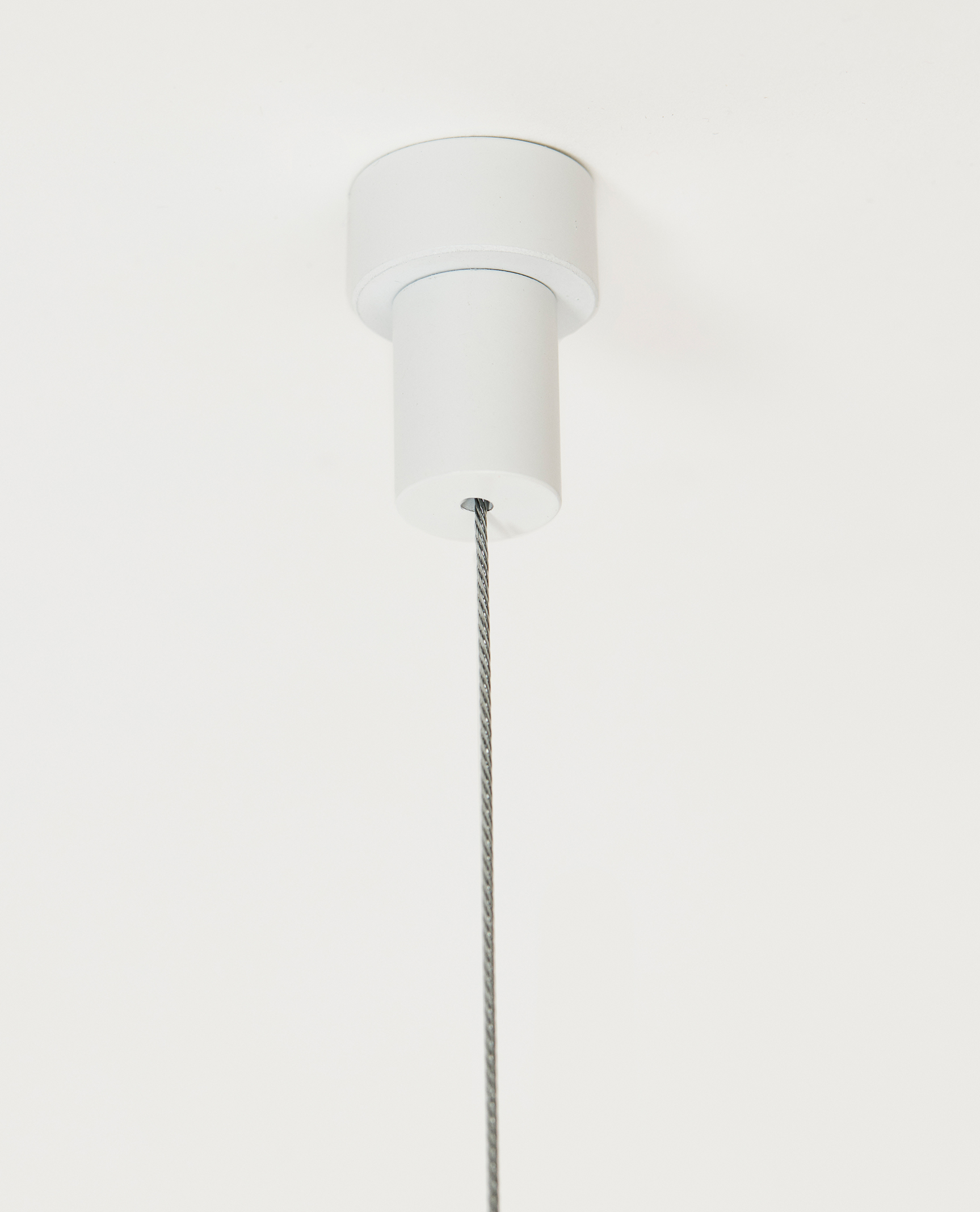

Delivered as a wire-suspended unit, the Vertical Screen enables defined acoustic zoning without occupying floor space. It supports adaptable layouts and spatial separation between workstations or functional areas, without permanent building alterations.
Modular System Logic
Developed within the Supersonic system, the Vertical Suspended Screen aligns proportionally with wall panels and desk screens, ensuring visual and architectural coherence across integrated acoustic applications within the same project.
Replaceable Textile Surfaces

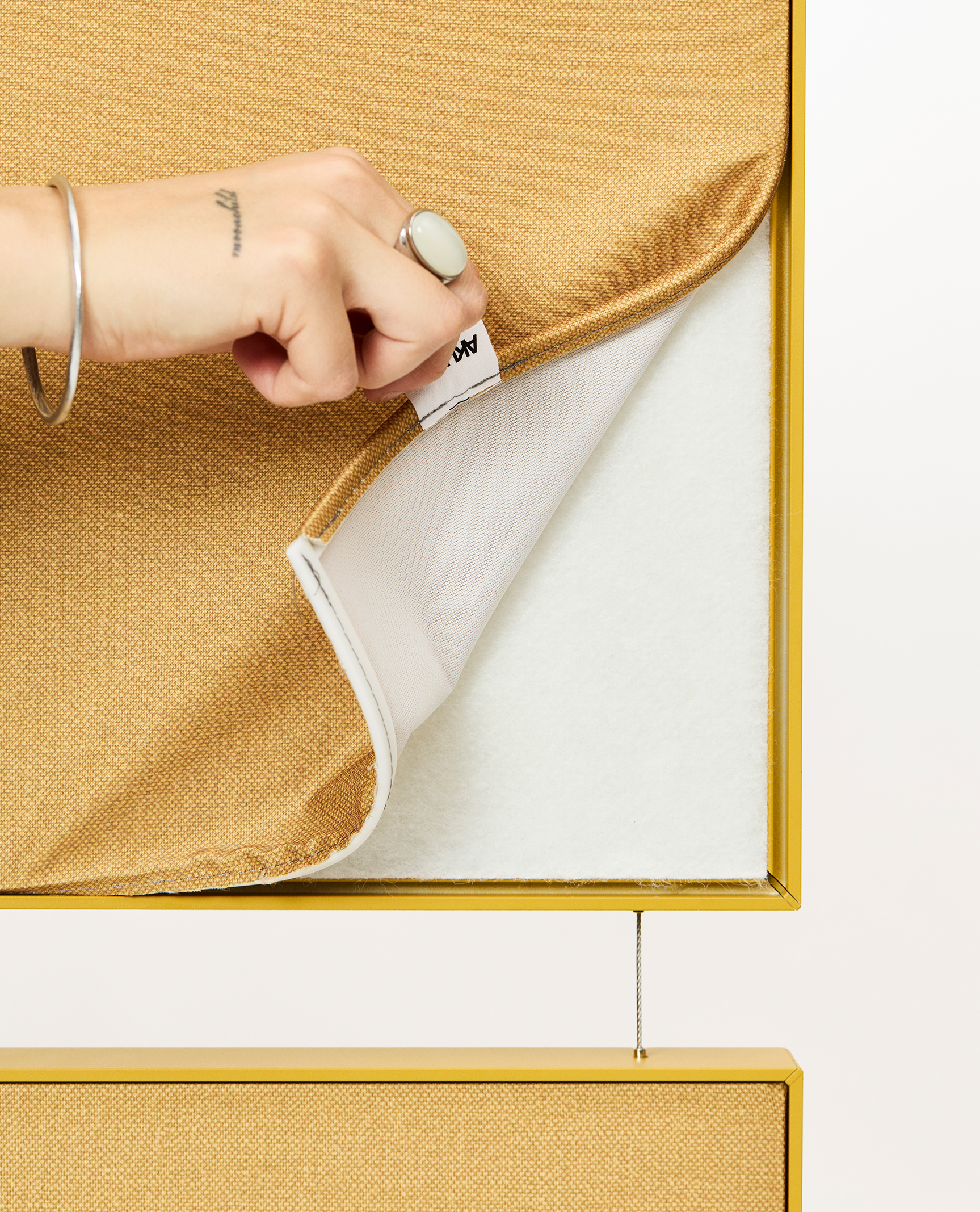

Both front and rear textile surfaces can be removed and replaced independently of the acoustic core. This allows visual updates, surface maintenance and long-term adaptability without replacing the full unit.
Designed for Disassembly
A product system developed according to design-for-disassembly principles, allowing each component to be separated and reduced, reused, repaired or recycled as needed.
PINNABLE SURFACE

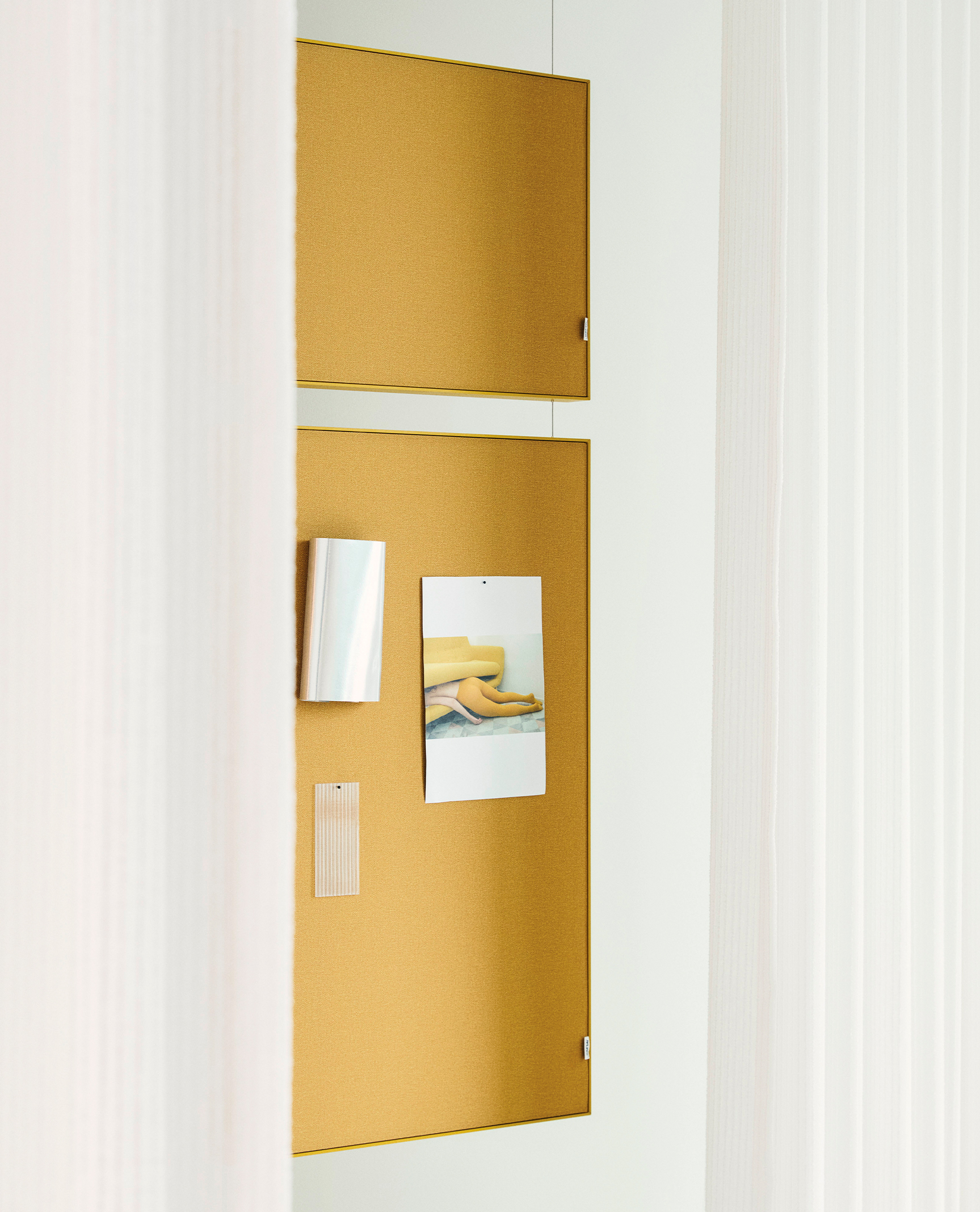

The screen features a soft acoustic surface that allows notes and lightweight materials to be pinned without compromising acoustic performance or surface integrity.

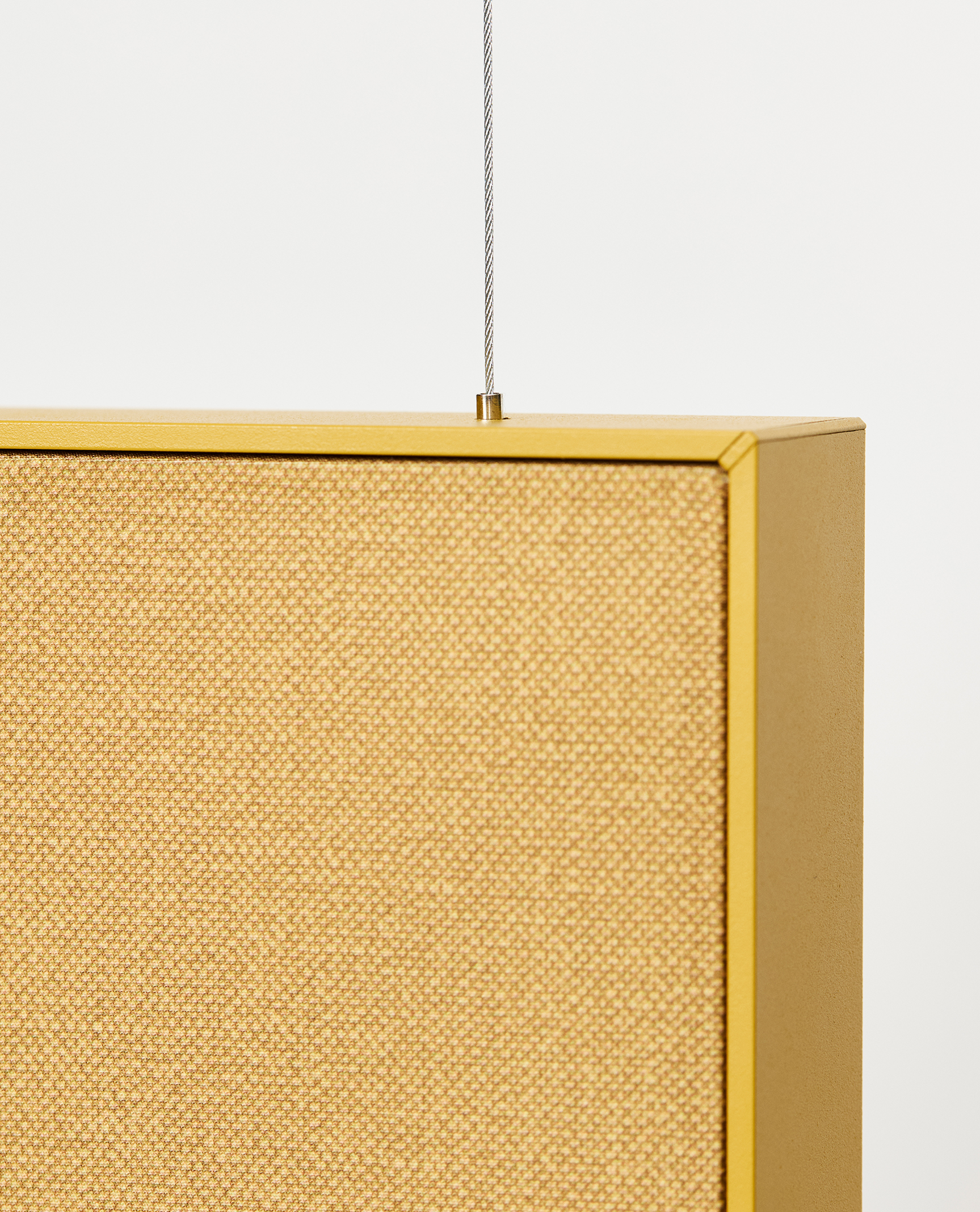

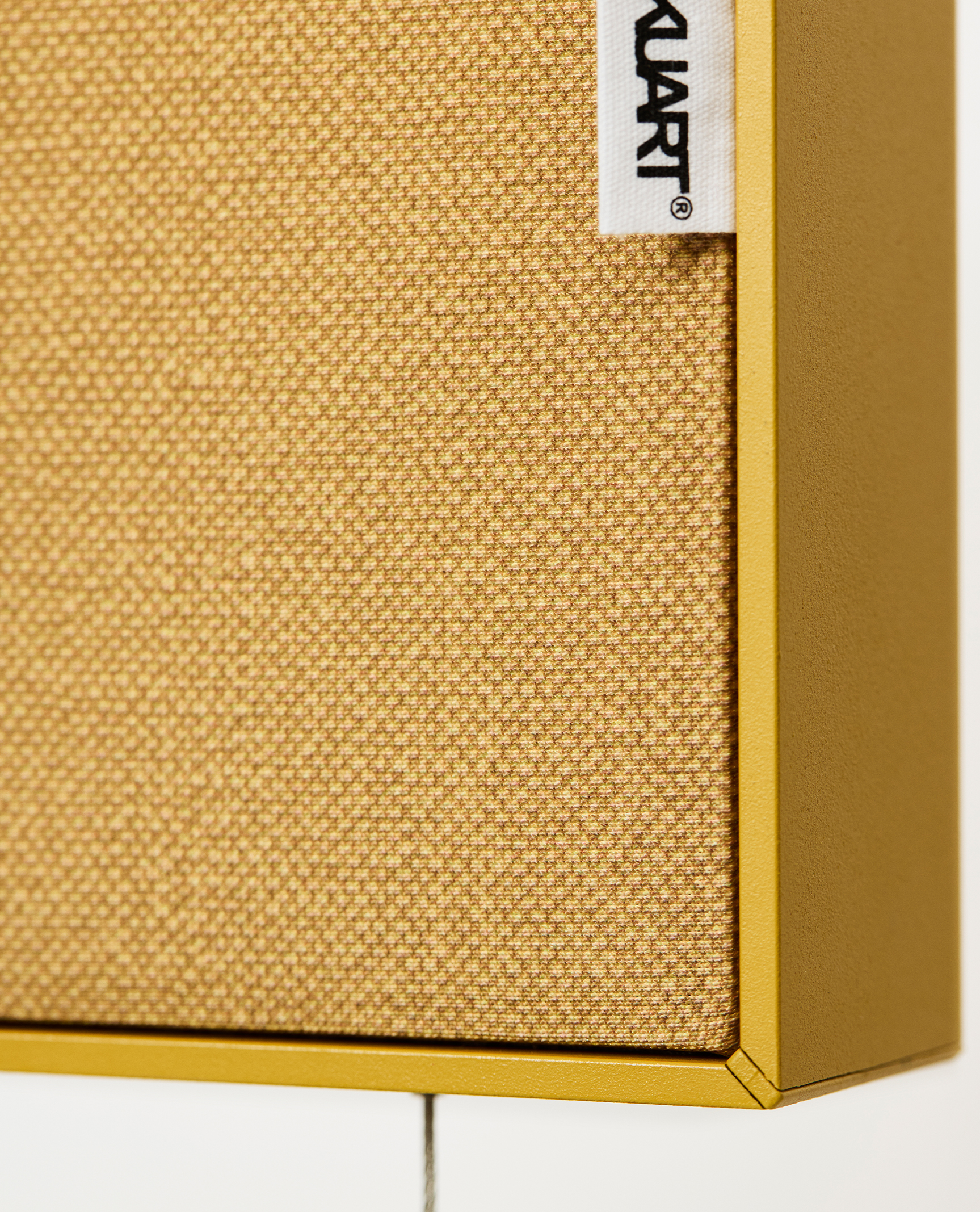

REINFORCED CORNERS

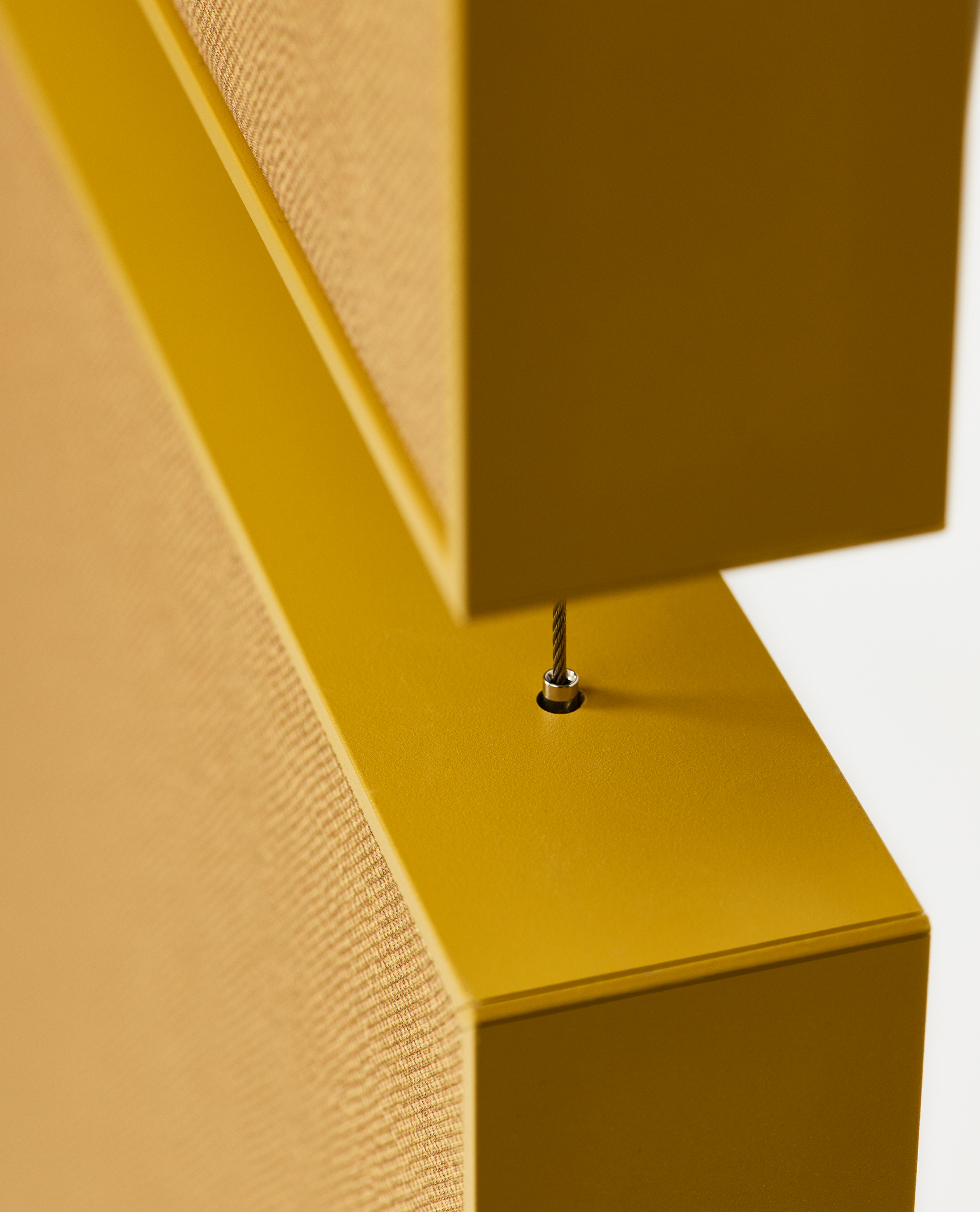

Integrated metal corner inserts ensure precise frame assembly and eliminate exposed or sharp edges, improving durability, safety, and overall finish quality.
Design for circularity
The Supersonic Vertical Suspended Screen is designed to be repaired, renewed, and recycled. Instead of being used and discarded, each element is conceived to be maintained, renewed, and ultimately returned to the loop.

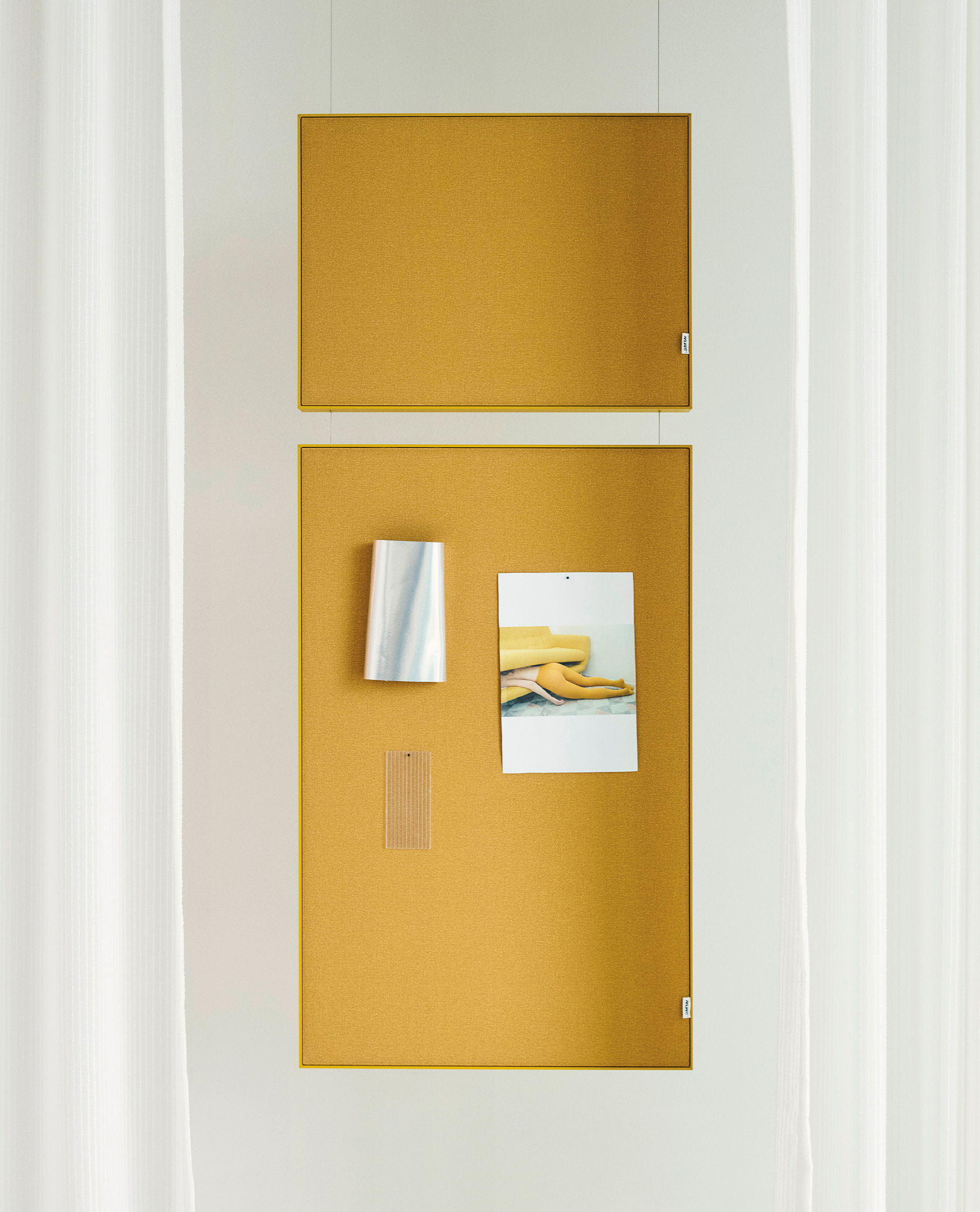

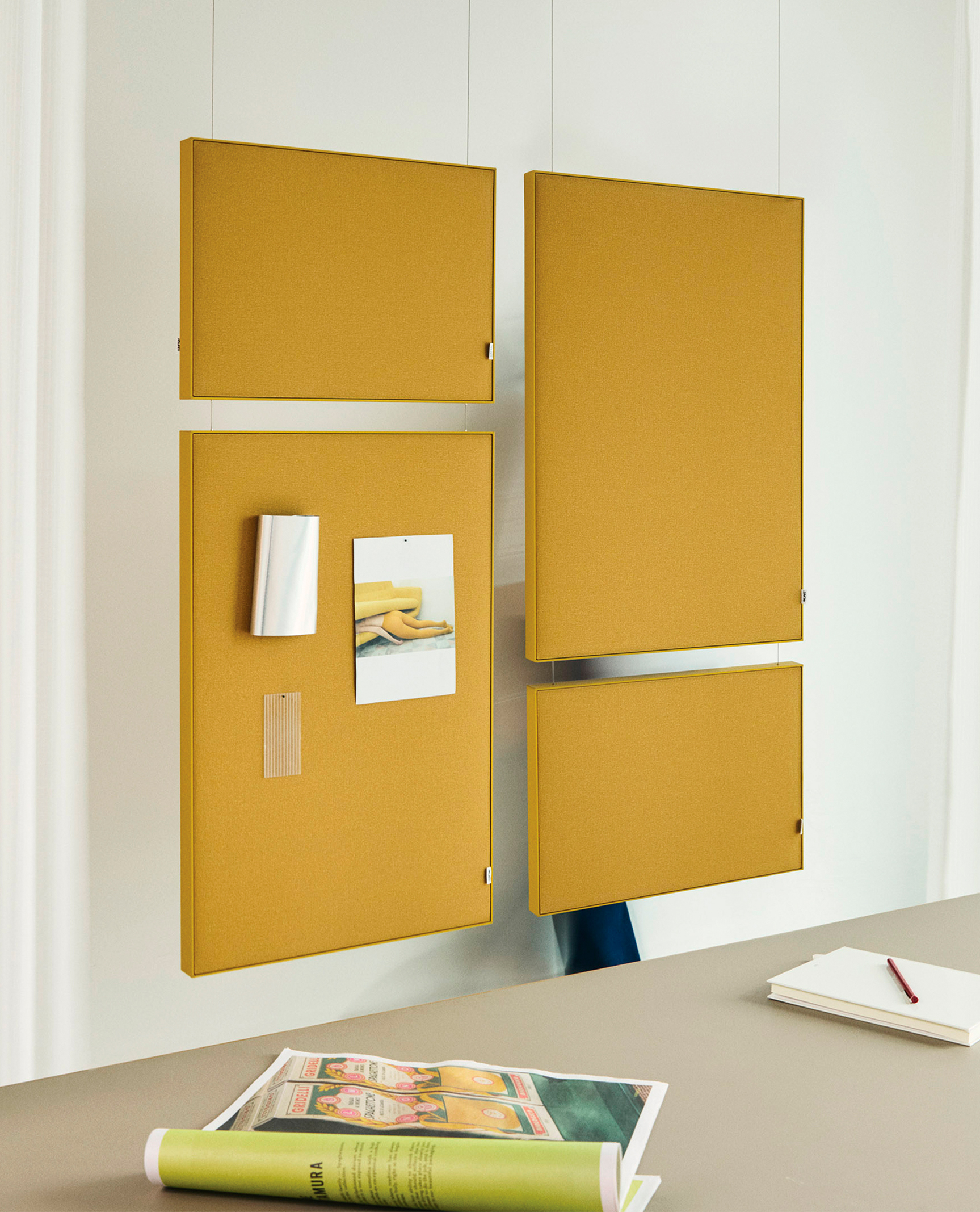

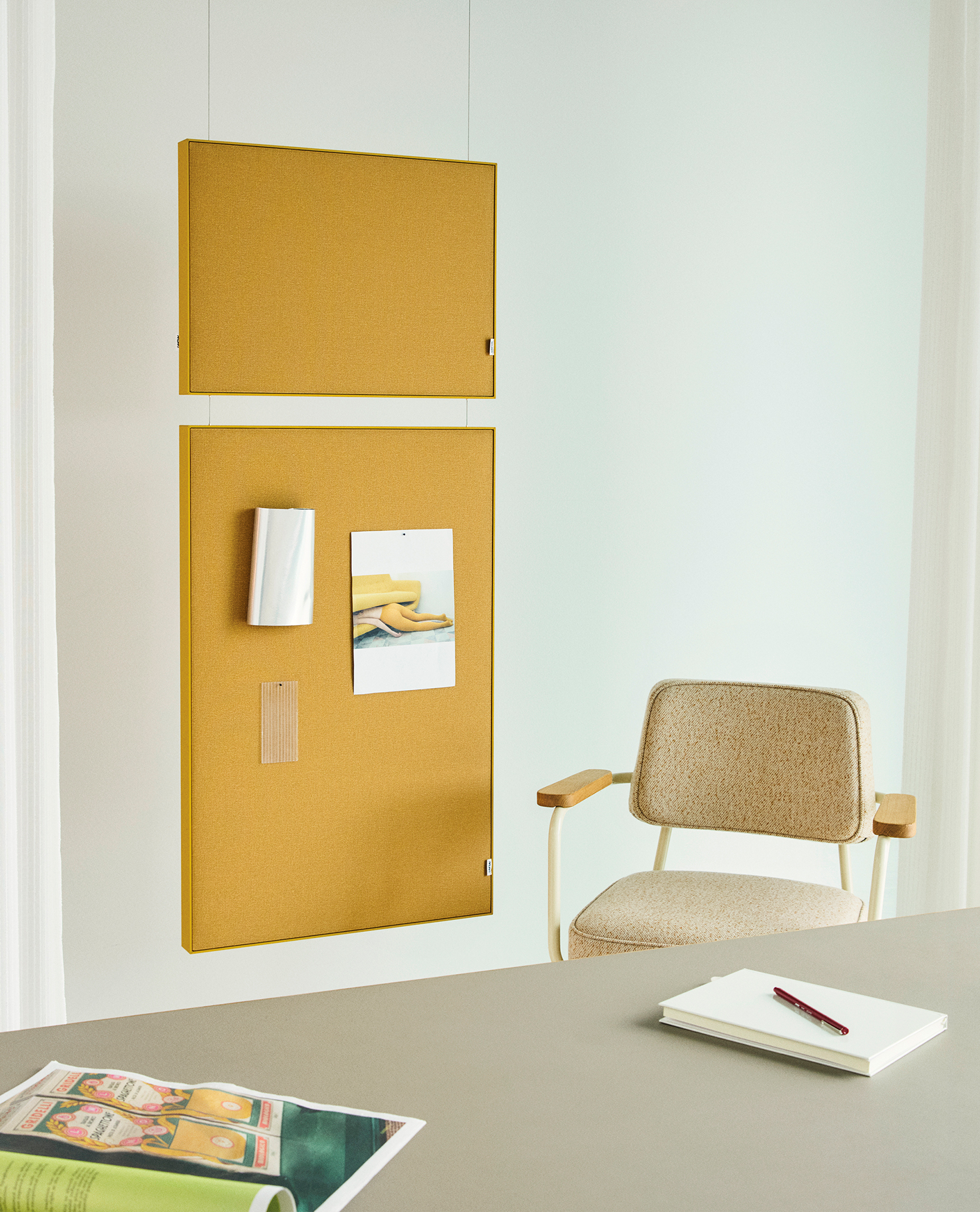

Supersonic Vertical Suspended Screen gallery 4
Acoustic functionality
The Supersonic Vertical Suspended Screen absorbs sound energy within the space, reducing sound transmission between zones and limiting reflected noise across the room. By controlling mid- and high-frequency reflections, it enhances speech clarity, concentration and overall acoustic comfort in open and shared professional environments.
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Independently Verified
Tested by independent acoustic engineers at the Technical University of Denmark in accordance with ISO 354.
Acoustic Performance
The Supersonic Vertical Suspended Screen demonstrates strong performance across speech-relevant frequencies. With an equivalent sound absorption area tested at 2.16 m² and documented 1/3-octave and 1/1-octave data available, it provides reliable acoustic efficiency that supports improved speech clarity and reduced sound propagation in open environments.
Application & Distribution Criteria
Placement should be guided by acoustic calculations and room-specific modelling, with Floor Screens positioned to intercept primary sound paths and define acoustic zones. Quantity and distribution should be specified in relation to room volume, layout and function to achieve targeted reverberation and speech performance levels.
