SS50 Floor Screen
Supersonic Collection
Frame Colours
White
Black
Charcoal
Grey Green
Light Brown
Army
Blue
Light Grey
Red Brown
Request a sample kit
Description
The Akuart SS50 Floor Screen provides endless possibilities of creating beautiful stand alone acoustic interior designs. The core material and dimensions are meticulously engineered to interrupt speech from one workstation to another. The floor screen offers superb acoustic functionality and an exceptional array of design options. Choose from a wide range of frame colors, feet designs and canvas options to make this acoustic solution fit your distinct needs. The screen comes with a variety of special features including the characteristic Akuart changeable canvas and a designed for disassembly product philosophy making it possible to recycle each and every single component of the screen.
Product details
Features
- Superior acoustic performance
- Changeable canvas which allows you to enjoy the freedom of change as well as prolonging the life cycle of each screen.
- A design for disassembly product composition making it possible to reduce, reuse, repair and recycle each component used.
- Range of 100+ canvas colour choices and 9 carefully selected frame colours to choose from..
- Fully calculated CO2 footprint for each individual screen.
Materials
Acoustic material
50 mm PET with 50% fibres from recycled plastic bottles
Frame
Aluminium with 75% upcycled aluminium scrap. Fine structure powder coating
Corners
Zink inserts. Fine structure powder coating.
Canvas
Polyester made with 100% recycled polyester fibres
Mounting
Screws
Feet
Flat base, Elevated base, Wheeled base
Dimensions
Vertical:
w:800 x h:1300 mm / w:800 x h:1500 mm / w:800 x h:1800 mm /
w:800 x h:2000 mm / w:1000 x h:2000 mm / w:1200 x h:1300 mm /
w:1200 x h:1500 mm / w:1200 x h:1800 mm / w:1200 x h:2000 mm /
w:1500 x h: 2000 mm
Horizontal::
w:1400 x h:1300 mm / w:1600 x h:1300 mm / w:1800 x h:1300 mm /
w:2000 x h:1300 mm / w:1600 x h:1500 mm / w:1800 x h:1500 mm /
w:2000 x h:1500 mm
Bespoke sizes also available
Test & Acoustic functionality
Equivalent sound absorption area
Test dimensions 2.16 m2
CO2 & Sustainability
SS50 Floor Screen CO2e Emissions
Vertical formats: Elevated // wheels // Flat
w:800 x h:1300 mm = 170 Kg // 170 Kg // 200 Kg
w:800 x h:1500 mm = 180 Kg // 180 Kg // 210 Kg
w:800 x h:1800 mm = 190 Kg // 200 Kg // 220 Kg
w:800 x h:2000 mm = 210 Kg // 210 Kg // 240 Kg
w:1000 x h:2000 mm = 230 Kg // 230 Kg // 260 Kg
w:1200 x h:1300 mm = 200 Kg // 200 Kg // 230 Kg
w:1200 x h:1500 mm = 210 Kg // 220 Kg // 240 Kg
w:1200 x h:1800 mm = 230 Kg // 240 Kg // 260 Kg
w:1500 x h: 2000 mm = 280 Kg // 290 Kg // 310 Kg
Horizontal formats: Elevated // wheels // Flat
w:1400 x h:1300 mm = 210 Kg // 220 Kg // 240 Kg
w:1600 x h:1300 mm = 230 Kg // 240 Kg // 260 Kg
w:1800 x h:1300 mm = 240 Kg // 250 Kg // 270 Kg
w:2000 x h:1300 mm = 260 Kg // 270 Kg // 290 Kg
w:1600 x h:1500 mm = 250 Kg // 250 Kg // 280 Kg
w:1800 x h:1500 mm = 260 Kg // 270 Kg // 290 Kg
w:2000 x h:1500 mm = 280 Kg // 290 Kg // 310 Kg
→ Our approach to sustainability
→ Akuart Sustainability Report 2022
Maintenance
Cleaning:
The SS50 Floor Screen is easy to clean. It can withstand daily dusting, vacuuming and wiping with a semi wet cloth with the use of universal cleaning products.
Disinfectable:
The canvas is easy to disinfect. It endures the use of anti bacterial spray or anti bacterial wipes and alcohol chlorine based cleaning products without affecting the print.
Washable:
The canvas tolerates machine wash repeatedly.
Features
- Superior acoustic performance
- Changeable canvas which allows you to enjoy the freedom of change as well as prolonging the life cycle of each screen.
- A design for disassembly product composition making it possible to reduce, reuse, repair and recycle each component used.
- Range of 100+ canvas colour choices and 9 carefully selected frame colours to choose from..
- Fully calculated CO2 footprint for each individual screen.
Materials
Acoustic material
50 mm PET with 50% fibres from recycled plastic bottles
Frame
Aluminium with 75% upcycled aluminium scrap. Fine structure powder coating
Corners
Zink inserts. Fine structure powder coating.
Canvas
Polyester made with 100% recycled polyester fibres
Mounting
Screws
Feet
Flat base, Elevated base, Wheeled base
Dimensions
Vertical:
w:800 x h:1300 mm / w:800 x h:1500 mm / w:800 x h:1800 mm /
w:800 x h:2000 mm / w:1000 x h:2000 mm / w:1200 x h:1300 mm /
w:1200 x h:1500 mm / w:1200 x h:1800 mm / w:1200 x h:2000 mm /
w:1500 x h: 2000 mm
Horizontal::
w:1400 x h:1300 mm / w:1600 x h:1300 mm / w:1800 x h:1300 mm /
w:2000 x h:1300 mm / w:1600 x h:1500 mm / w:1800 x h:1500 mm /
w:2000 x h:1500 mm
Bespoke sizes also available
Test & Acoustic functionality
Equivalent sound absorption area
Test dimensions 2.16 m2
CO2 & Sustainability
SS50 Floor Screen CO2e Emissions
Vertical formats: Elevated // wheels // Flat
w:800 x h:1300 mm = 170 Kg // 170 Kg // 200 Kg
w:800 x h:1500 mm = 180 Kg // 180 Kg // 210 Kg
w:800 x h:1800 mm = 190 Kg // 200 Kg // 220 Kg
w:800 x h:2000 mm = 210 Kg // 210 Kg // 240 Kg
w:1000 x h:2000 mm = 230 Kg // 230 Kg // 260 Kg
w:1200 x h:1300 mm = 200 Kg // 200 Kg // 230 Kg
w:1200 x h:1500 mm = 210 Kg // 220 Kg // 240 Kg
w:1200 x h:1800 mm = 230 Kg // 240 Kg // 260 Kg
w:1500 x h: 2000 mm = 280 Kg // 290 Kg // 310 Kg
Horizontal formats: Elevated // wheels // Flat
w:1400 x h:1300 mm = 210 Kg // 220 Kg // 240 Kg
w:1600 x h:1300 mm = 230 Kg // 240 Kg // 260 Kg
w:1800 x h:1300 mm = 240 Kg // 250 Kg // 270 Kg
w:2000 x h:1300 mm = 260 Kg // 270 Kg // 290 Kg
w:1600 x h:1500 mm = 250 Kg // 250 Kg // 280 Kg
w:1800 x h:1500 mm = 260 Kg // 270 Kg // 290 Kg
w:2000 x h:1500 mm = 280 Kg // 290 Kg // 310 Kg
→ Our approach to sustainability
→ Akuart Sustainability Report 2022
Maintenance
Cleaning:
The SS50 Floor Screen is easy to clean. It can withstand daily dusting, vacuuming and wiping with a semi wet cloth with the use of universal cleaning products.
Disinfectable:
The canvas is easy to disinfect. It endures the use of anti bacterial spray or anti bacterial wipes and alcohol chlorine based cleaning products without affecting the print.
Washable:
The canvas tolerates machine wash repeatedly.
Design Options

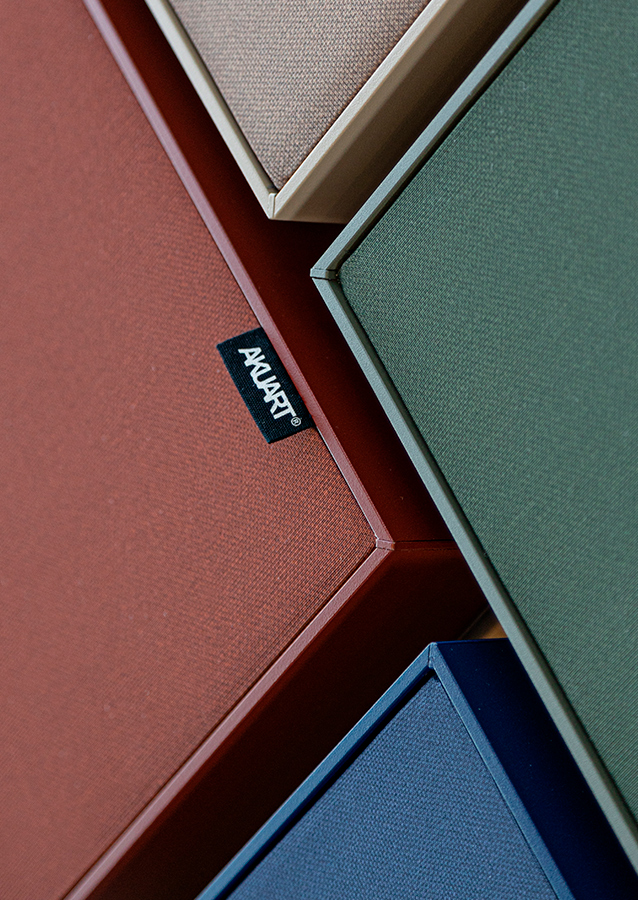

Colours & Textures
Discover more
A collection of 9 frame options & more than
100 exclusive canvas colours.
Art & Photography
Explore more
Extensive artwork gallery.

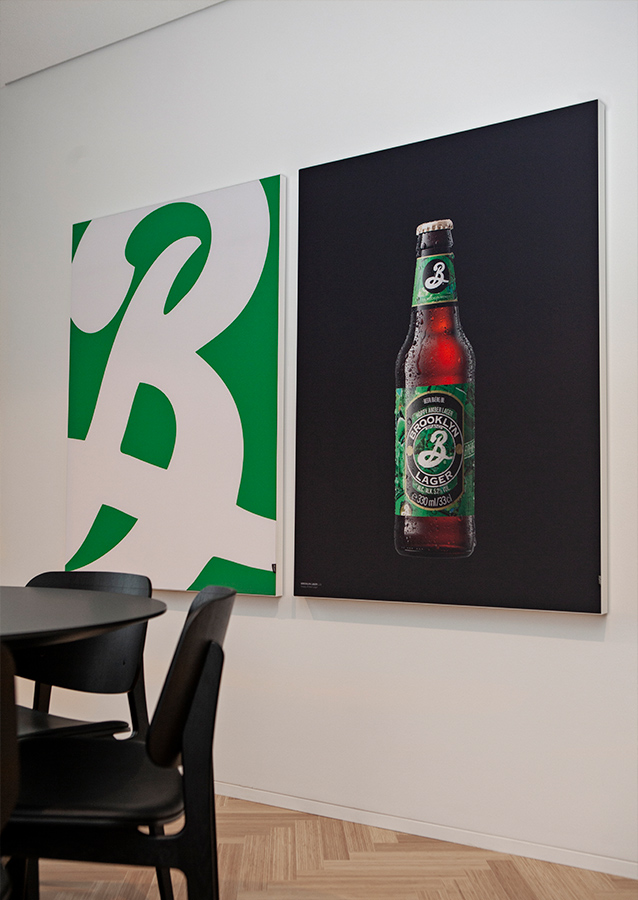

Graphic design
Explore more
Acoustic solutions on colours / Signage / Wayfinding /
Branding & Corporate Identity.
Planning & Organising
Find out more
The Akuart x KBHavn Collection is a collaboration with
Danish design company KBHavn.
Need inspiration? Explore some of our favourite projects here.
Special Features
Changeable canvas
Design for dissasembly

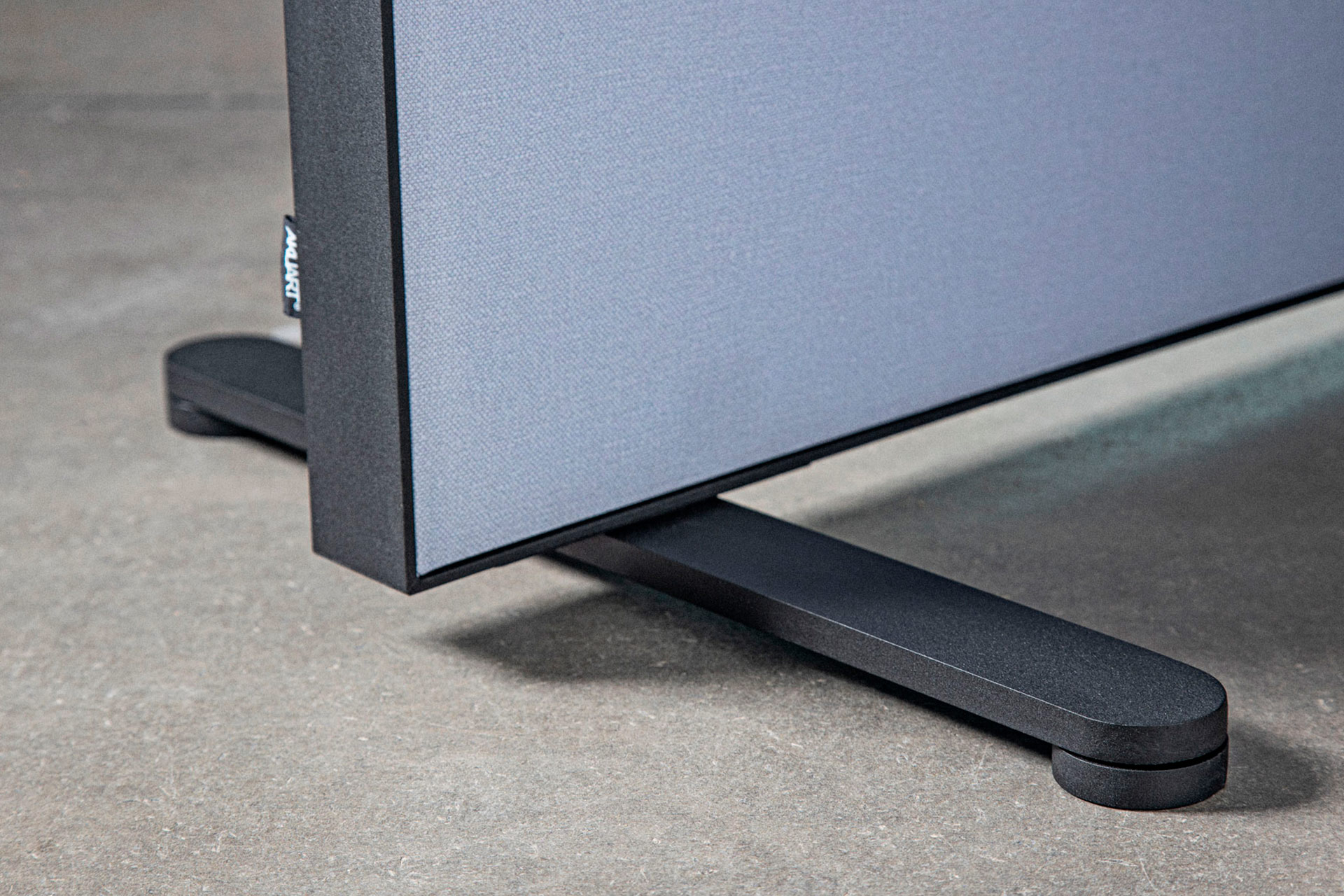

Enhanced frame corners
Pinnable
Superior Acoustic funtionality
